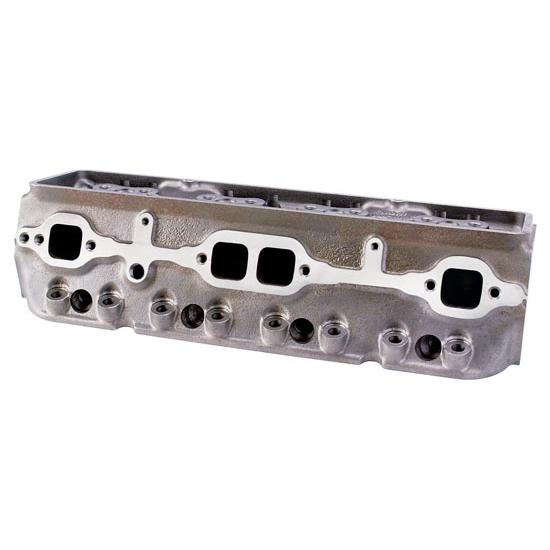

Garaeg Sale - RHS 12326 Pro Elite 23 Degree CNC Ported Iron Bare Cylinder Head, Straight Plug

Free Shipping Free Shipping
Specs
Material Type:
Iron
Sold in Quantity:
Each
Finish:
Natural
Port Style:
Square Port
MFG. Part #:
12326
Intake Runners:
228 cc
Exhaust Runners:
82cc
Combustion Chamber:
69cc
Cylinder Head Style:
Bare
Spark Plug Style:
Straight
Intake Valve Diameter:
2.055
Exhaust Valve Diameter:
1.600
Garaeg Sale - RHS 12326 Pro Elite 23 Degree CNC Ported Iron Bare Cylinder Head, Straight Plug
Garaeg Sale - RHS 12326 Pro Elite 23 Degree CNC Ported Iron Bare Cylinder Head, Straight Plug
Garaeg Sale - RHS 12326 Pro Elite 23 Degree CNC Ported Iron Bare Cylinder Head, Straight Plug
Garaeg Sale - RHS 12326 Pro Elite 23 Degree CNC Ported Iron Bare Cylinder Head, Straight Plug
Garaeg Sale - RHS 12326 Pro Elite 23 Degree CNC Ported Iron Bare Cylinder Head, Straight Plug

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

The RHS Pro Elite series of CNC-ported cylinder heads is designed for absolute maximum engine performance. Utilizing innovative design features, modern engineering methods & precision CNC machining, Pro Elite Cylinder Heads are second-to-none. Features a 69cc combustion chamber, available bare.

  • Innovative cast iron design w/ race-inspired features
  • Delivers maximum airflow for remarkable performance gains
  • Extreme performance & race applications

Bare Heads Feature:

  • Fully CNC ported
  • 23 degree valve angle
  • Clean Cast Technology for smoother, less restricted air flow
  • Machined for screw-in studs
  • Improved water jacket design for cooler operation
  • Premium bronze valve guides
  • Mulit-angle Serdi valve job
  • Straight or angled plug

RHS Cylinder Head Standard Features (Link)

Bare Head Specs:          590-12326 Complete Specs (PDF)



Clearance!!



NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS



Item Details

Clearance!!

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

wondering if you can run a stock cast iron high rise intake with these heads I am running a sbc 421 in a street stock racing class and we have to run a cast iron intake at some tracks. If you can't run a stock type intake is there anyone around that can modify cast iron to make it be able to work? Thank you

Thompson28
June 28, 2014

wondering if you can run a stock cast iron high rise intake with these heads I am running a sbc 421 in a street stock racing class and we have to run a cast iron intake at some tracks. If you can't run a stock type intake is there anyone around that can modify cast iron to make it be able to work? Thank you

Answers

June 30, 2014
EricM
The intake ports are too tall on these heads to use any stock intake unless you add material to the top of the intake manifold. Check with some cylinder head porting companies for the possibility of modifying your intake to use with these heads.
1 answers

What does 23 degree heads mean? What is significance?

Bill
La Pine,Oregon
July 20, 2011

What does 23 degree heads mean? What is significance?

Answers

July 20, 2011
Jason
23 degrees is the stock OEM valve angle. Many racing sanctioning bodies require stock valve angle of 23 degree.
