Pro-Billet Front Mount Flathead Distributor

SAME DAY SHIPPING!

Share by Email

From
To

Click image to enlarge

X

Please NOTE the following about this product:

  • This product is discontinued.

Details

Reviews

Q & A

What's in the Box

Early Flathead racers and cruisers alike will be excited to see these front mount Flathead Distributors! These distributors are built around a CNC-machined billet aluminum housing for precise tolerances.

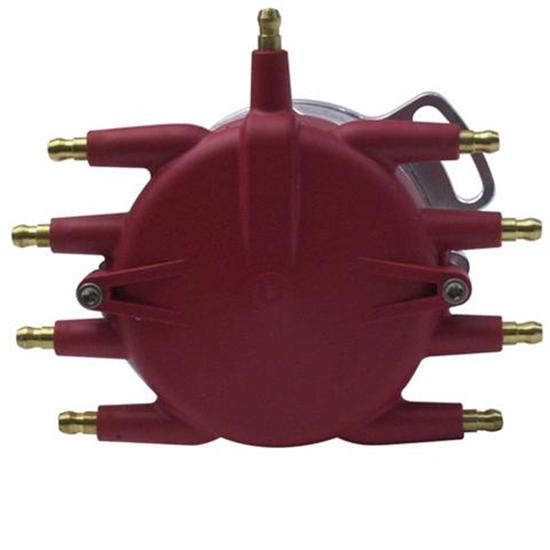

The distributor is topped off with our an MSD Crab Cap with spark plug style terminals for improvied wire connections. Just under the cap and Rynite race rotor is MSD's adjustable mechanical advance. This assembly features chromoly construction with TIG-welded weight pins to secure the precision fine blanked weights. MSD supplies different advance springs and stop bushings so you can dial-in an advance curve to meet your Flathead's specs.

Just under the advance is MSD's race-proven magnetic pick-up. This puck, combined with a reluctor, produces accurate trigger signals that are responsible for firing the MSD Ignition Control. Bring your Flathead up-to-date with MSD performance.

MSD Rebate



Notes

Billet aluminum body, full centrifugal advance, a modern cap and rotor and comes with drive gear. Use on 12 volt systems with an MSD box (sold below) or similar magnetic triggered controls. Supplied with different advance springs and stop bushings so you can dial-in an advance curve to meet your Flathead’s specs. Uses HEI style terminals.

This distributor is 4" tall and may contact the stock fan when used on 1941-1948 Fords and Mercurys. An electric fan may be required for this application.

Specs

  • For 2-bolt mount ('42-'48 Flatheads)

Item Details

4" Tall from mount surface to outer most point of cap.
