Powermaster 8-801 SB Chevy 50 Amp Mini Alternator Kit w/Serp-Belt

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Amperage:
53
Voltage:
14.7
One Wire Alternator:
Yes
Base Width:
4.25
MFG. Part #:
8-801
Garage Sale:
No
Powermaster 8-801 SB Chevy 50 Amp Mini Alternator Kit w/Serp-BeltPowermaster 8-801 SB Chevy 50 Amp Mini Alternator Kit w/Serp-BeltPowermaster 8-801 SB Chevy 50 Amp Mini Alternator Kit w/Serp-BeltPowermaster 8-801 SB Chevy 50 Amp Mini Alternator Kit w/Serp-BeltPowermaster 8-801 SB Chevy 50 Amp Mini Alternator Kit w/Serp-Belt

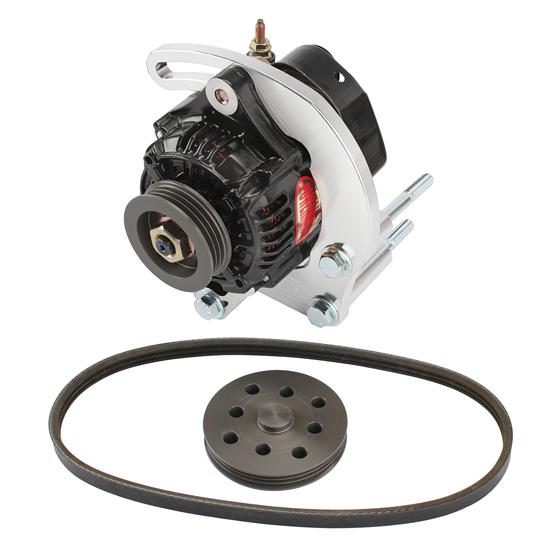

Powermaster 8-801 SB Chevy 50 Amp Mini Alternator Kit w/Serp-Belt

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Powermaster provides all the electrical punch you need, while saving weight and space. One-wire unit for small block Chevys using short water pumps. Mounts on either side of engine. Cranks out 14.7 volts and 53 amps. Kit includes mini alternator, brackets, bolts, spacers, drive pulley and belt.

  • True 1-wire hookup with set voltage of 14.7
  • High output to weight ratio
  • Low drag, high speed bearings
  • Black heat dispersant coating

NOTE: Mini alternators are NOT IMCA approved for Hobby Stock or Sport Mod Divisions.

Small Block Chevy Mini Alternator Dimensions (Link)

Application

  • 30A @ 2,400 rpm @ 13.2 VDC @ 77°F
  • Operating Range:  -40°C to 150°C
  • Max RPM:  20,000
  • Weight:  5.80 lbs.
  • 5" deep from front to back
  • 4-1/4" wide on the back of the unit side to side
  • 5-1/4" on the centerline between the bolt mounting holes

Notes

  1. Included pulley mounts to the front of the water pump pulley, eliminating interference issues with existing pulley systems.
  2. Dyno Graph (Link)

Specs

  • 30A @ 2,400 rpm @ 13.2 VDC @ 77°F
  • Operating Range:  -40°C to 150°C
  • Max RPM:  20,000
  • Weight:  5.80 lbs.
  • 5" deep from front to back
  • 4-1/4" wide on the back of the unit side to side
  • 5-1/4" on the centerline between the bolt mounting holes

Warranties

Powermaster's warranty is one year from the date of purchase on all
street rod components, and 90 days for any component use for an off road or race application.

Powermaster will provide all warranty service and technical support
regarding warranty claims and inquiries directly to the purchaser to
resolve any warranty claims or necessary technical support for warranty
resolution.  Speedway Motors is not able to service, warranty, or
replace any unit that has a warranty consideration.  As such, the
component or components are to be returned to Powermaster and not to
Speedway Motors.

All customers service inquiries pertaining to warranty and defect claims
are to be directed to Powermaster and not to Speedway Motors:


Powermaster Customer & Tech Support

Phone: (630) 957-4019

Email: tech@powermasterperformance.com


Any Powermaster product that is returned directly to Speedway Motors
that is not in a new condition, and that is being returned for warranty
replacement or refund consideration will be immediately forwarded on to
Powermaster from Speedway Motors on behalf of the purchaser with no
further action taken until received by Powermaster.  Powermaster will
then will provide both the purchaser and Speedway Motors with final
resolution as to the warranty claim.
