It is common to use an early GM power steering pump with a Mustang II power rack and pinion. Most who have tried it have found that the steering was twitchy or that it easily darts. This valve reduces the fluid flow from three gallons-per-minute to two gallons-per-minute, which cures the problem. For applications using the O-ring style power steering hoses. Installs in the back side of the pump as shown in the extra photos. If converting pump from modern 16mm o-ring to traditional 5/8" inverted flare style hoses, order (1) Adapter Insert 910-32921. 910-32918 ...
If you have power steering on your car and it has too much assist or a 'twitchy' feel to it you may have too much pressure to the rack or box. This nifty valve allows you to adjust the pressure and get the road feel you want. It has a 1/4" npt inlet and outlet for the pressure line, and a 3/8" npt inlet and outlet for the return line. Both pressure and return line need to be plumbed into this valve. 910-32923 Instructions (pdf)
If you have power steering on your car and it has too much assist or a 'twitchy' feel to it you may have too much pressure to the rack or box.This nifty valve allows you to adjust the pressure and get the road feel you want. It has a 1/4" npt inlet and outlet for the pressure line and a 3/8" npt inlet and outlet for the return line.Both pressure and return line need to be plumbed into this valve. 910-32923 Instructions (pdf)
It is common to use an early GM power steering pump with a Mustang II power rack and pinion. Most who have tried it have found that the steering was twitchy or that it easily darts. This valve reduces the fluid flow from three gallons-per-minute to two gallons-per-minute which cures the problem.For applications using the O-ring style power steering hoses. Installs in the back side of the pump as shown in the extra photos.Ifconverting pumpfrom modern 16mm o-ring to traditional 5/8" inverted flare style hoses order(1) Adapter Insert 910-32921.910-32918 Instructions ...

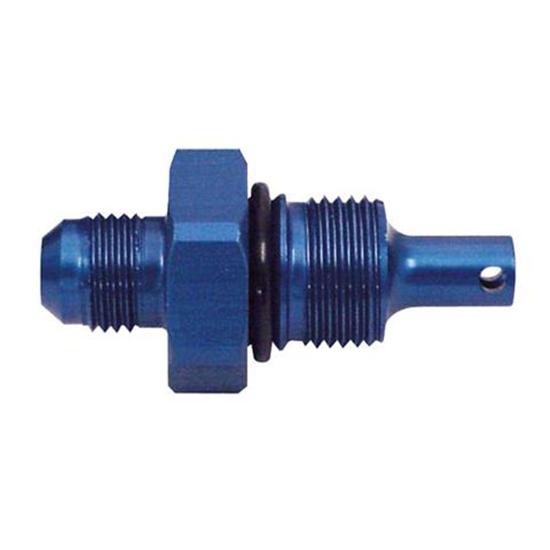

All KRC power steering pumps provide the racer the ability to fine tune the feel and assist in the power steering system. Interchanging the -6 outlet fitting can alter the steering input the drive has. The more flow your steering system receives the easier it will be to turn the wheels but will decrease feel. Having less flow will put feel and stability back in the steering system but decrease assist.Note: KRC Flow Valve fittings allow for flow from 1.05 GPM to 3.17 GPM. The 1.05 GPM valve has the ...
Flaming River now manufactures the control valve assembly for the Classic Mustang 1967 - 70. Like all Flaming River products this is an all-new product and it is made to the original specifications not a questionable rebuild piece. Don't forget to order new hoses also.Minimum pump pressure at 465RPM is 665 psi and .88 GPMSystem will not operate correctly without correct pump performance. NOTE: Hoses/Pump not included.
Flaming River now manufactures the control valve assembly for the Classic Mustang 1967 - 70. Like all Flaming River products, this is an all-new product and it is made to the original specifications, not a questionable rebuild piece. Don't forget to order new hoses also. Minimum pump pressure at 465RPM is 665 psi and .88 GPM System will not operate correctly without correct pump performance. NOTE: Hoses/Pump not included.
All KRC power steering pumps provide the racer the ability to fine tune the feel and assist in the power steering system. Interchanging the -6 outlet fitting can alter the steering input the drive has. The more flow your steering system receives the easier it will be to turn the wheels, but will decrease feel. Having less flow will put feel and stability back in the steering system, but decrease assist. Note: KRC Flow Valve fittings allow for flow from 1.05 GPM to 3.17 GPM. The 1.05 GPM valve has ...
This compact MPD wing cylinder slider valve is made of high quality aluminum and weighs only .50 pounds. Has 1/8" NPT threads to connect to your power steering pump and wing cylinders. This product is manufactured & assembled in the USA out of materials from the USA. For Sprint Cars, Micros and Mini Sprints.
This compact MPD wing cylinder slider valve is made of high quality aluminum and weighs only .50 pounds. Has 1/8" NPT threads to connect to your power steering pump and wing cylinders. This product is manufactured & assembled in the USA out of materials from the USA. For Sprint Cars Micros and Mini Sprints.
