Power Steering Pump Combo, -8 AN Fittings

Free Shipping Free Shipping
Specs
Sold in Quantity:
Each
Outlet Fitting:
10 AN
MFG. Part #:
KSC1068-002
Power Steering Pump Combo, -8 AN Fittings

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (2)

Q & A (9)

What's in the Box

Info

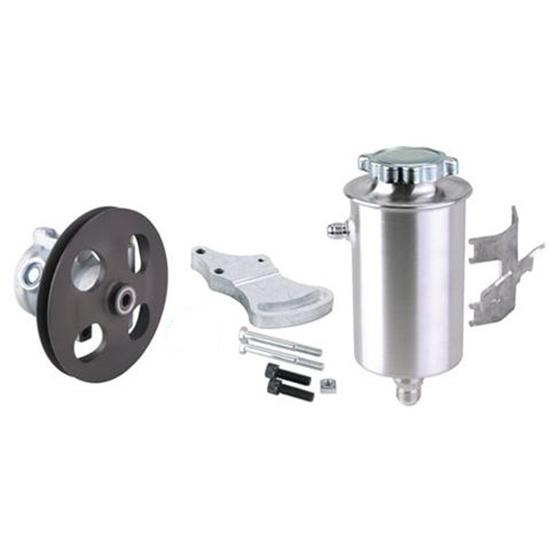

Power steering pump combos include:

  • Sweet Mfg. cast iron power steering pump
  • Block mount bracket with hardware
  • Standard weight aluminum reservoir tank
  • Tank mounting bracket

Reservior bracket can be welded to the tank, strapped to the tank with hose clamps, or custom-mounted to suit your needs.

910-32912 Instructions (PDF)

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Elliott
Verified Purchaser
Spokane, Wa

Power Steering Pump Combo

July 06, 2016
Great product would highly recommend it for other hotrodders.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Duddie
Verified Purchaser
Forest city NC

"I would buy this product again and again"

May 12, 2015
I use it on my vintage race car 49 ford
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

9 questions : 9 answers

1 answers

What fittings are needed for this P/S kit?

Kellyracer75
October 13, 2014

What fittings are needed for this P/S kit?

Answers

October 13, 2014
EricM
We offer a hose kit part number 91032950 that will work with this power steering pump combo. You will also need adapters for your steering box to convert it to AN6. Those adapters will be specific for each thread size and seal style.
1 answers

rpm range what is the rpm range for this pump vs the 10 an pump?

nelson21
June 23, 2014

rpm range what is the rpm range for this pump vs the 10 an pump?

Answers

June 24, 2014
EricM
There is no specified RPM range on this pump but it would be ideal to keep the pump RPM below 6500. I highly suggest using the AN10 version so that you have less chance of sucking the feed hose shut and causing pump damage. There really is no down side to going with the larger AN10 inlet other than the hose and fittings are slightly larger.
1 answers

Would this pump and bracket mount on a 70s big block chevy? Or is it compatible with a saginaw pump bracket?

Brennan3
February 09, 2014

Would this pump and bracket mount on a 70s big block chevy? Or is it compatible with a saginaw pump bracket?

Answers

February 10, 2014
EricM
No the bracket provided is for mounting on a SBC only. You would have to fabricate your own bracket to use this pump on your big block engine. The original brackets from your big block will not be correct for this pump.
1 answers

what kind of pulley is this 6 groove or the non ribbed type?

jeff
houston tx
September 19, 2012

what kind of pulley is this 6 groove or the non ribbed type?

Answers

September 19, 2012
Eric
The pulley on the pump is for a V belt.
1 answers

Can this be used with a Mustang rack? If so do you have the fittings

Joea
NC
June 25, 2015

Can this be used with a Mustang rack? If so do you have the fittings

Answers

June 26, 2015
Eric
Expert
Yes this can be used with a Mustang rack. We have many adapters to convert to AN6 power steering hoses which is what this pump uses. Check the thread size of the connections on your rack so that we can help you get the correct adapters.
1 answers

Is this product meant to line up with a short or long water pump?

Tim
Vulcan, MI
March 07, 2016

Is this product meant to line up with a short or long water pump?

Answers

March 08, 2016
Eric
Expert
This kit is for a short water pump.
1 answers

I have a 1970 Camaro Pro street with a high horsepower big block Dart Big M 572 cubic inch that I drag race and drive on the street, redline on the rev limiter is 7800 rpm. right now I have a flaming river manual steering box and I want to convert back to power steering, I know I have to change the steering box. my question is will this unit work driven from the crank since I have an electric water pump. I believe the pulley is 6 inch dual V belt that currently drives the alternator. A stock Saginaw steering pump couldn't handle the high rpm.

steve
Port Lavaca, Tx
March 18, 2016

I have a 1970 Camaro Pro street with a high horsepower big block Dart Big M 572 cubic inch that I drag race and drive on the street, redline on the rev limiter is 7800 rpm. right now I have a flaming river manual steering box and I want to convert back to power steering, I know I have to change the steering box. my question is will this unit work driven from the crank since I have an electric water pump. I believe the pulley is 6 inch dual V belt that currently drives the alternator. A stock Saginaw steering pump couldn't handle the high rpm.

Answers

March 21, 2016
Eric
Expert
Yes this pump is driven from a V belt crank pulley. This pump has a 6" OD pulley and for your RPM a 5" crank pulley would be best. Also I do suggest the AN10 inlet size of kit 91032913 especially for your high RPM application. It will help ensure that the feed hose does not starve the pump for oil at high RPM.
1 answers

More specs on the pump would be great, what are the PSI and flow ratings?

91x
June 12, 2016

More specs on the pump would be great, what are the PSI and flow ratings?

Answers

June 14, 2016
Eric
Expert
The pump is 1000 psi operating pressure and is approximately 2.5 to 3 GPM.
1 answers

My 400 chevy block is not drilled/tapped to mount this on the drivers side but is on the passenger side. This would flip the pump upside down putting the outlet pointing down. Would this be an issue for the pump?

Slammed66GMC
Canada
June 21, 2016

My 400 chevy block is not drilled/tapped to mount this on the drivers side but is on the passenger side. This would flip the pump upside down putting the outlet pointing down. Would this be an issue for the pump?

Answers

June 22, 2016
Zach
Expert
It might be hard to get all of the air out of the system if the pump is inverted. Air in the lines would damage the pump
Page 1 of 1
