91032530Hose ID0.430"Hose OD0.670"Fitting End AHigh Pressure Line: 1/2"-20, Low Pressure Line: 5/8"-18Fitting End BHigh Pressure Line: 5/8"-18,Sold in QuantityEachNotesHigh pressure line is 16-1/2" w/ 90 deg. fittings on both ends. Low pressure line is 24" long w/ one 90 deg. fitting. Includes 3 flare inserts.
Pump has a 3/8" hose barb for return line and a female 5/8"-18 inverted flare fitting for the high pressure outlet. Pulley not included. Use bracket available below.
These are Gates brand power steering hose assemblies made to OEM specifications.Pressure line assembly includes rubber sleeve, scuff guard, and bracketry for a stable, perfectly aligned fit.
These are Gates brand power steering hose assemblies made to OEM specifications. Pressure line assembly includes rubber sleeve, scuff guard, and bracketry for a stable, perfectly aligned fit.
Aeroquip FC300 spec hose to be used as the fuel or power steering line. Hose only works with listed fittings (not included). Easily assembles with a bench vise and/or wrenches. Ends are reusable. Hose sold by foot.The AN6 high pressure hose has an ID of 0.31" and an OD of 0.67". The maximum operating pressure is 2250 psi and the minimum bend radius is 4". Its applications include: power steering lines, hydraulics, air, gasoline, fuel, lubricating oils, over the wall air tools, and DOT-approved air brakes. This high pressure hose ...

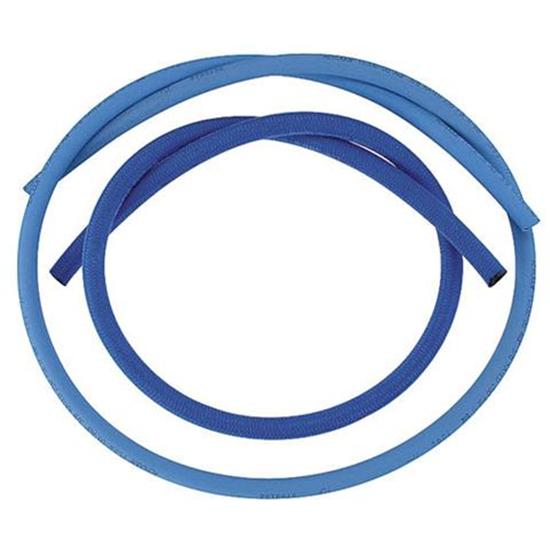

Aeroquip FC300 spec hose to be used as the fuel or power steering line. Hose only works with listed fittings (not included). Easily assembles with a bench vise and/or wrenches. Ends are reusable. Hose sold by foot.The AN8 high pressure hose has an ID of 0.41" and an OD of 0.77". The maximum operating pressure is 2000 psi and the minimum bend radius is 4.62". Its applications include: power steering lines, hydraulics, air, gasoline, fuel, lubricating oils, over the wall air tools, and DOT-approved air brakes. This high pressure hose ...
Our universal 1964-1972 GM Car power steering hose assemblies are an inexpensive alternative to the more costly stainless steel braided hose kits. Return hose will normally need to be cut to length.
Our standard power steering hose assemblies are an inexpensive alternative to the more costly stainless steel braided hose kits. This set adapts a 1982-1988 T-Bird/Cougar rack or our 91034340-POW rack to a GM style pump. Return hose will normally need to be cut to length.
These stainless steel braided power steering hose kits allow you to fit them to most 1965-1979 GM car & truck boxes with flare fittings.
These stainless steel braided power steering hose kits will connect 1984-88 T-Bird and 1979-93 Mustang racks to most Ford or GM style internal reservoir power steering pumps. The hoses provide a custom look without the need to buy any additional parts. This kit is designed for drivers side pumps and may require hoses to be trimmed to length.
This adapter kit expands the available applications of our power steering hose kit to cover most power steering rack & pinion and steering box set-ups. Fittings in this kit are 1/2"-20, 9/16"-18, 5/8"-18, and 11/16"-18 and all go to AN6.
Included in this kit isa new 500 series power steering box, new centerlink, new pitman and idler arm. Modification of the original steering column is required. Use 910-32460 (1955-56) or 910-32462 (1957) to convert the stock column for use with this kit. This is a straight bolt-on conversion when using our Ididit columns.
These stainless steel braided power steering hose kits allow you to fit them to your 1980-Up GM for a custom look.
You get a new 500 series power steering box, new centerlink, new pitman and idler arm. This is a straight bolt-in conversion, although '58-'60 cars need to order the 910-32582 idler arm adapter. Steering box uses 'inverted flare' fittings, 11/16" Fine on the pressure side and 5/8" Fine thread on the return side.
AFCO GM Power Steering Fittings
If you have a power steering pumpusing late model style O-ring sealedhosesthat you need to adapt to traditional inverted flare hoses, thisinverted flare adapter is a simple fix. Simply insert the adapter into the flow control fitting and then install your inverted flare hose.
Cast iron power steering pump has aluminum V-belt pulley. These pulleys are popular for use on late models and IMCA modifieds. Comes with AN6 pressure fitting. Order AN8 or AN10 supply fitting.These power steering pumps have a pressure relief valve.
For 500 series steering boxes. Our power steering hose assemblies are an inexpensive alternative to the more costly stainless steel braided hose kits. Return hose will normally need to be cut to length.
This braided stainless steel line kit gives you the necessary line linking the rack to the remote reservoir canister. Line has an AN 6 female fitting on the end to work with hose kits 617-4835 and 617-4837.
Our Mustang II/GM pump power steering hose assemblies are an inexpensive alternative to the more costly stainless steel braided hose kits. Return hose will normally need to be cut to length.This has an adapter to allow it to work with both metric o-ring and standard inverted flare threads on the power steering pump fitting.This will work with the 1974-78 Mustang II power rack and pinion in conjunction with the suggested power steering pumps 910-32922-FORD and 910-32908-BLK. This is Garage Sale priced because it does not include the smaller ID hose ...
This power steering pump bracket mounts a stock-style GM pump to a S/B Chevy block. Must be used with a short style water pump.Mounts on the lower left side. Bracket is zinc plated with threaded shaft.Designed to work with a'70-'82 GM pump that has a threaded pulley shaft, not a press-on style.
This is the latest development in power steering technology. The Sweet pump incorporates a flow control valve to provide a smooth and consistent flow and pressure regardless of engine RPM or temperature. The package includes: aluminum pump, hardware, and spacers. Accepts all popular fuel pumps and engine plates.
We offer this Saginaw power steering pump with a new reservoir, billet cap, chrome hardware and new dipstick. Desirable early style 1965-79 pump with threaded and keyed shaft for easy pulley installation. Available in chrome. Hoses available from local parts stores.

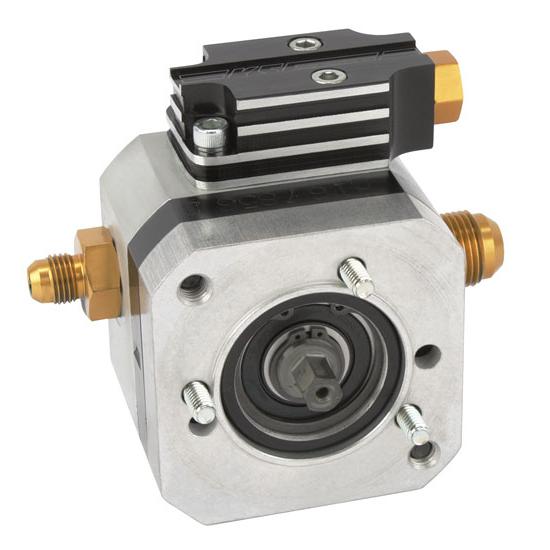

KSE reverse rotation pump specifically for Fontana midget engines. Will only work on the Fontana Midget motors.
