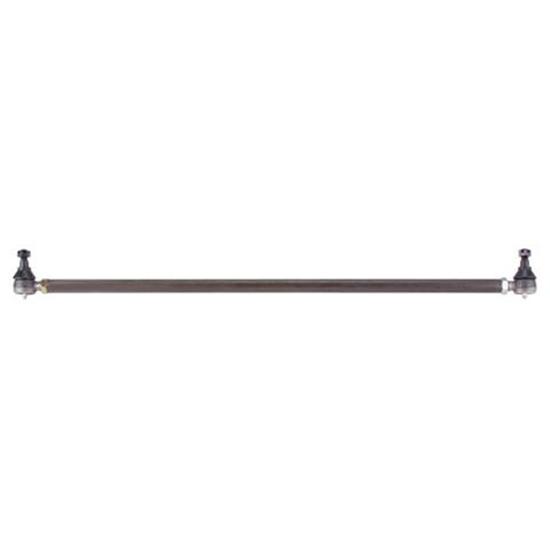

Plain Tie Rod/Drag Link Kit with 11/16 Tie Rod Ends

SAME DAY SHIPPING! Order within the next 12 hours 7 minutes and receive same day shipping

Specs
Material Type:
Steel
Sold in Quantity:
Kit
Finish:
Natural
Garage Sale:
No
Tube O.D.:
0.875
Notes
Measure using Center to Center, tube is 3" shorter than labeled. Adjusts 0.5" shorter to 0.75" longer.
Plain Tie Rod/Drag Link Kit with 11/16 Tie Rod Ends
Plain Tie Rod/Drag Link Kit with 11/16 Tie Rod Ends
Plain Tie Rod/Drag Link Kit with 11/16 Tie Rod Ends

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

These tie rod or drag link kits are pre-cut and tapped lengths of 7⁄8" O.D. tubing available multiple lengths. Kits come complete with 11/16" traditional 7° tie rod ends and jam nuts. Tubing will be tapped with right-hand & left-hand threads for adjustability.

Select your length based on the center-to-center of the tie rod ends, which will also be the eye-to-eye distance between the steering arms (the acutal tube will be 3" shorter than length selected). At selected length, the link will be adjustable from 1/2" shorter to 3/4" longer.

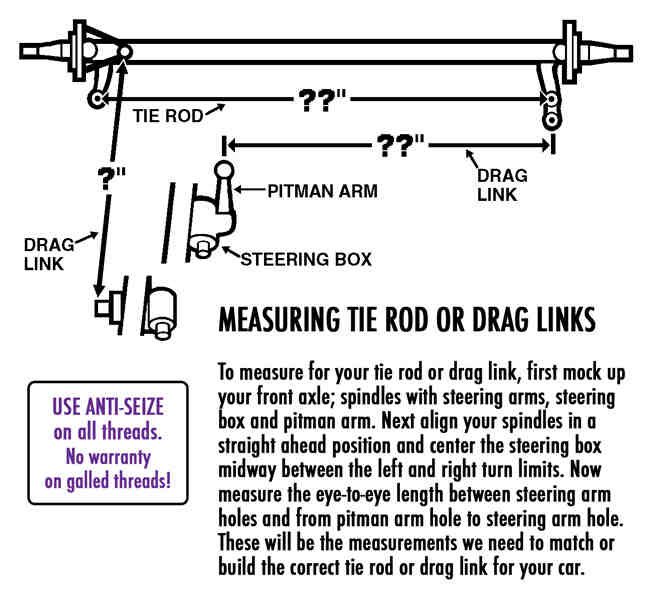

Measuring Tie Rod or Drag Links (GIF)

Tapered Steering Arm Illustration (GIF)

Note: Always use anti-seize to prevent galling the treads during final installation.
