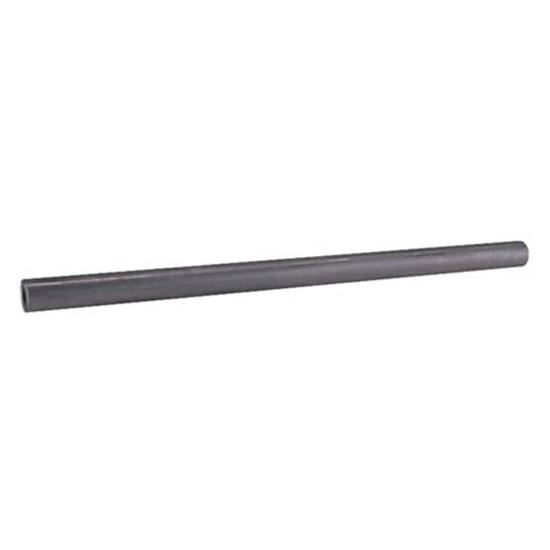

Plain Steel Sleeves for 5/8 Inch Rod Ends

Price: $29.99 - $74.99
Click image to enlarge Click image to enlarge
No video at this time.


If you are building a hot rod just a little bit different than the next guy, you will probably need a special length tie rod or drag link sleeve. We stock many common and uncommon lengths along with custom, made-to-order lengths. Measurements are in assembled eye-to-eye lengths.

To order:

  1. Use guide below to measure your finished length.
  2. The part number and length you order will be 3" longer than the sleeve you receive. (I.E., if you order a 48" part number, you will receive a 45" long sleeve.) This is the difference in length required to give you the correct finished center-to-center measurement.
  3. All sleeves will have internal RH thread in one end and LH thread in the other.

Measuring Guide for Tie Rod/Drag Link

Reviews for Item #: 91631
REVIEWED BY 2 CUSTOMERS
Sort by:
Displaying Reviews 1-2 of 2
Processing


quality product

By Rick from Hedgesville, WV. on 4/10/2010
Pros:
Burr free, Powder coated finish
Cons:
none
Best Uses:
4 bar, Panhard bar
Bottom Line: Yes, I would recommend this to a friend

Wish Speedway would also supply these with 11/16-18 tapped ends. I re-tapped mine to use as a drag link using a special cross steering tie rod end. Speedway does sell a complete drag link including rod ends but I didn't need the rod ends.

Was this review helpful to you? Yes / No - You may also flag this review.
Please let us know what kind of issue this is:









Email Address:

Comments:



Just what I needed!

By Mikey from Troy, MI on 2/23/2012
Pros:
Adjustable, Cost saving, Easy To Install, Quality, Time saving
Describe Yourself:
Auto Enthusiast
Best Uses:
Everyday Driving, Performance Driving, Racing, Steering, Supension
Bottom Line: Yes, I would recommend this to a friend

I usually make my own parts like this one but it was a no braniner to buy this sleeve. The LH threaded tap needed to make this part is much more expensive than this sleeve. Also many of us do not have a lathe which is ideal for making these type of parts. The threads on this part are also threaded very deep (3 or more inches each end) so if you need to shorten it a bit you can without having to thread it deeper.

Was this review helpful to you? Yes / No - You may also flag this review.
Please let us know what kind of issue this is:









Email Address:

Comments:

Displaying Reviews 1-2 of 2


Questions and Answers for Item #: 91631

Get your questions answered by the community. Ask or answer questions below.

1 Question | 1 Answer
Displaying Questions
Processing

Q:

If I order the 32" finished length will I be able to adjust the rod ends out to get 32.5" eye to eye? Basically, can the rod ends be adjusted 1/4" longer on each side to give me 1/2" more length?

Asked on 2/4/2012 5:32:50 AM by chops from whitewater, WI

Answers (1) Know the answer? Answer this question
Displaying Questions

Do you have a question about this product?

Email this page
Close [x]
You can send this product by email to a friend!
Enter the required information in the spaces provided below. They will receive an Email with the picture of this product and a link back to our site.
Your Name:
Your Email:
Friends Name:
Friends Email:
Print Page
PLAIN STEEL SLEEVE WITH 5/8"-18 ENDS
Item #:
91631

(2 Ratings)
  Show Specifications
  • 91631-24
    Overall Length
    21.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-25.5
    Overall Length
    22.500" (22 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-28.5
    Overall Length
    25.500" (25 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-30
    Overall Length
    27.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-32
    Overall Length
    29.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-41.5
    Overall Length
    38.500" (38 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-42.5
    Overall Length
    39.500" (39 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-43
    Overall Length
    40.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-43.5
    Overall Length
    40.500" (40 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-44
    Overall Length
    41.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-45
    Overall Length
    42.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-45.5
    Overall Length
    42.500" (42 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-46
    Overall Length
    43.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-47
    Overall Length
    44.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-47.5
    Overall Length
    44.500" (44 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-48
    Overall Length
    45.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-49
    Overall Length
    46.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-52.5
    Overall Length
    49.500" (49 1/2")
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
  • 91631-54
    Overall Length
    51.000"
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
Custom Order Plain Steel Sleeve With 5/8"-18 Ends
Price:
$74.99
EA
In Stock
Item #:
91631-999
Item Details:
NOTE: Specify eye-to-eye length in Comments section of your Shopping Cart.

(2 Ratings)
  Show Specifications
  • 91631-999
    Outside Diameter
    0.880"
    Thread Pitch
    5/8"-18
    Material Type
    Steel
    Finish
    Painted
    Sold in Quantity
    Each
