Plain Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle

Free Shipping Free Shipping
Specs
Material Type:
Steel
Sold in Quantity:
Each
Finish:
Natural
Diameter:
2.00
Drop:
3.00
Material Thickness:
.250
Perch Centers:
37.00
King Pin Centers:
48.00
Spindle Type:
Chevy

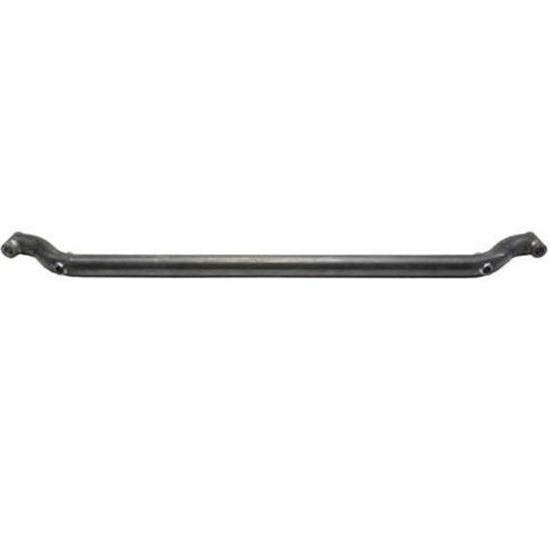

Plain Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle
Plain Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle
Plain Front Tube Axle w/ Perch Bolt Holes, Chevy Spindle

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Speedway 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1949-1954 Chevy-style spindles.

Leaf Spring Measuring Guide (Link)

Caster Angle Illustration (GIF)

Item Details

48" king pin centers, 37" perch centers

Notes

  1. Due to the design of this axle, batwings 916-35000 will NOT work without significant grinding on the edge of the bracket.

Specs

  • King Pin Center-to-Center:  48"
  • Spring Perch Center-to-Center:  37"
  • Spring Perch Hole O.D.:  1"
  • Spring Perch Hole I.D.:  11/16"
  • Spring Perch Hole Length:  2-1/4"

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Gentry
Verified Purchaser
Frisco, TX

Great

June 20, 2015
Very happy with the axle!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Maxwell24
northern wis

Good all around straight axle with drop

December 24, 2013
Good all around straight axle simple install plenty strong nice addition with front disc brake to my custom 1924 Maxwell
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

2 questions : 2 answers

1 answers

Is the 3 inch drop from center of tube at kingpin to center of tube between perch holes?

mikecornell
December 09, 2012

Is the 3 inch drop from center of tube at kingpin to center of tube between perch holes?

Answers

December 10, 2012
Jason
If a straight-edge is placed against the bottom of the spring perch boss and extended out under the kingpin boss, the gap between the straight-edge and the bottom of that boss is the amount of drop the axle has.
1 answers

Does this axle accept my stock king pins and spindles on my 50 GMC?

MT McGuire
Yerington, NV
March 24, 2011

Does this axle accept my stock king pins and spindles on my 50 GMC?

Answers

March 28, 2011
Thomas
The spindles and kingpins would be fine, however, this axle is designed for a transverse semi-elliptical spring. Why not p/n 9104754, 47-54 CHEVY PU DROPPED AXLE, made specifically for your truck\'s parallel semi-elliptical leaf spring suspension, plus the 3" drop your looking for.
