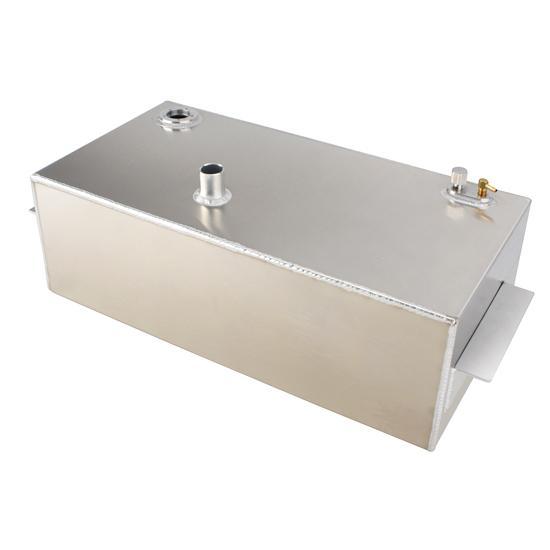

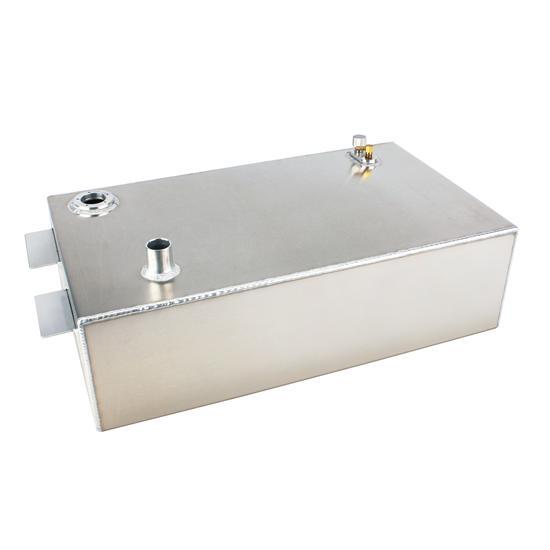

These 17 gallon aluminum fuel tanks are designed to be mounted under your pick-up box. The 1-1/2" filler neck will require a remote filler neck or fuel filler door in the box floor. They DO NOT accept the original truck fuel sending unit but do accept the common sending unit provided with aftermarket gauge sets.Measures 38" x 12" x 8-1/2". The actual tank is 38" wide the mounting tabs are 3" on each side of the tank. The total width of this tank is 44" with the mounting tabs.1/4" NPT ...
These 17 gallon aluminum fuel tanks are designed to be mounted under your pick-up box. The 1-1/2" filler neck will require a remote filler neck or fuel filler door in the box floor. They DO NOT accept the original truck fuel sending unit but do accept the common sending unit provided with aftermarket gauge sets.Measures 28-1/4" x 16-1/2" x 8". 1/4" NPT 90° brass roll-over vent valve with 5/16" hose nipple1/4" female NPT pick-upPick-up tube treads into tank with 3/8" NPT threads
These 15 gallon aluminum fuel tanks are designed to be mounted under your pick-up box. The 1-1/2" filler neck will require a remote filler neck or fuel filler door in the box floor. They DO NOT accept the original truck fuel sending unit but do accept the common sending unit provided with aftermarket gauge sets.1/4" NPT 90° brass roll-over vent valve with 5/16" hose nipple1/4" female NPT pick-upPick-up tube treads into tank with 3/8" NPT threads
These 17 gallon aluminum fuel tanks are designed to be mounted under your pick-up box. The 1-1/2" filler neck will require a remote filler neck or fuel filler door in the box floor. They DO NOT accept the original truck fuel sending unit, but do accept the common sending unit provided with aftermarket gauge sets. Measures 38" x 12" x 8-1/2". The actual tank is 38" wide, the mounting tabs are 3" on each side of the tank. The total width of this tank is 44" with the mounting tabs. ...
These 17 gallon aluminum fuel tanks are designed to be mounted under your pick-up box. The 1-1/2" filler neck will require a remote filler neck or fuel filler door in the box floor. They DO NOT accept the original truck fuel sending unit, but do accept the common sending unit provided with aftermarket gauge sets. Measures 28-1/4" x 16-1/2" x 8". 1/4" NPT 90° brass roll-over vent valve with 5/16" hose nipple 1/4" female NPT pick-up Pick-up tube treads into tank with 3/8" NPT threads
These 15 gallon aluminum fuel tanks are designed to be mounted under your pick-up box. The 1-1/2" filler neck will require a remote filler neck or fuel filler door in the box floor. They DO NOT accept the original truck fuel sending unit, but do accept the common sending unit provided with aftermarket gauge sets. 1/4" NPT 90° brass roll-over vent valve with 5/16" hose nipple 1/4" female NPT pick-up Pick-up tube treads into tank with 3/8" NPT threads
This fabricated aluminum fuel tank is built for our 1923 T-bucket kits with a 20" pick-up box. It features a raised fill neck w/ cap AN-6 fuel pickup and a rollover vent. Designed to be mounted to the left side which leaves room for your battery. Has a 10.4 gallon capacity. Pre-cut hole for fuel level senderCan use a LH or RH swing senderRollover vent valve includedIncludes non-vented capFuel outlet (AN-6) is on the side of the tankFuel gauge sending unit is not included and will need to be purchased ...
This 16 gallon tank was designed to be bolted to the floor of a pick-up box but we're sure you can figure out other applications. It measures 28" long 10" deep and 16" tall. It accepts the common 240 ohm full - 33 ohm empty sending unit and the filler neck measures 1-1/2". Ports on this tank are 3/8" NPT for the pickup and 1/4" NPT for the vent.
This fabricated aluminum fuel tank is built for our 1923 T-bucket kits with a 20" pick-up box. It features a raised fill neck w/ cap, AN-6 fuel pickup, and a rollover vent. Designed to be mounted to the left side which leaves room for your battery. Has a 10.4 gallon capacity. Pre-cut hole for fuel level sender Can use a LH or RH swing sender Rollover vent valve included Includes non-vented cap Fuel outlet (AN-6) is on the side of the tank Fuel gauge sending unit is not included and ...
This fabricated aluminum fuel cell is built for our 1923 T-bucket kits with a 20" pick-up box. Made from 5051 aluminum and tig welded for strength. Includes mounting tabs to make installation easy and it features a 240-33 ohm sending unit, flush mount fill neck, and AN6 fuel pickup, vent and return ports. Measures 9-1/2" x 12-1/4" x 30-1/4". Designed to be mounted to the left side which leaves room for your battery. Has a 14 gallon capacity. This tank will NOT clear the deck lid when used in conjunction ...
