Trans-Dapt 1322 Oil Cooler Block Adapter

SAME DAY SHIPPING! Order within the next 6 hours 30 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
2.13
Sold in Quantity:
Each
Finish:
Natural
Overall Diameter:
3.88
Thread Pitch:
13/16"-16 Male
Outlet Fitting:
1/2" NPT
MFG. Part #:
1322
Thread Pitch (2):
13/16"-16 Female
Notes
Includes O ring. Threaded sleeve has 13/16"-16 threads on both ends. One end is male, the other female.

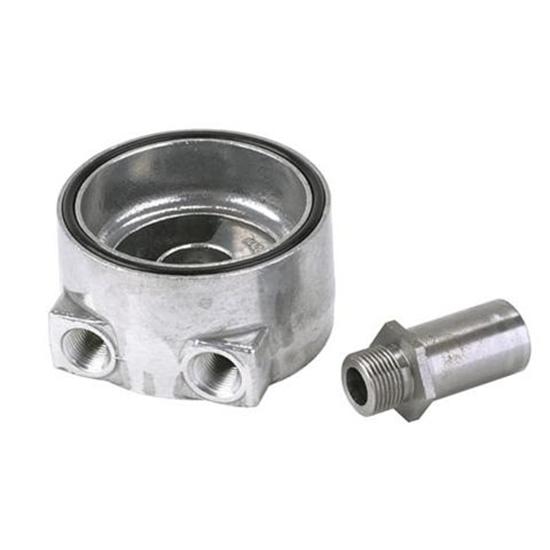

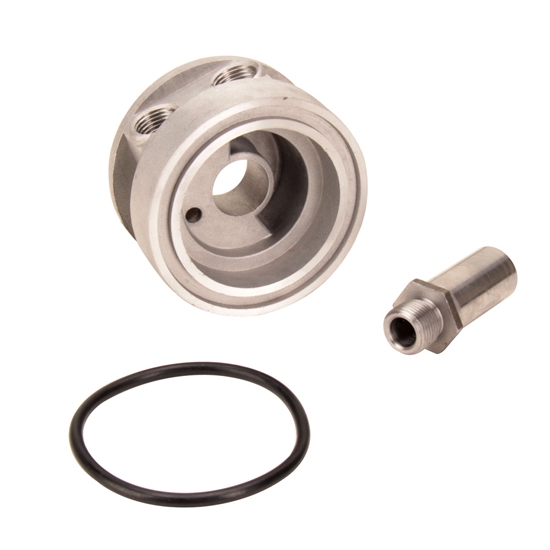

Trans-Dapt 1322 Oil Cooler Block AdapterTrans-Dapt 1322 Oil Cooler Block Adapter
Trans-Dapt 1322 Oil Cooler Block Adapter

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Fits 13/16"-16 threads. Designed to fit most small and big block Chevy V8's with recessed filter landing.

  • Oil Cooler Sandwich Adapter
  • Mounts oil filter with 13/16"-16 threads
  • 3-3/16" Filter Flange ID
  • 3-7/16" Filter Flange OD
