Offenhauser 1955-1986 Small Block Chevy Three Deuce Intake Manifold

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Each
Finish:
Natural
Intake Manifold Type:
Dual Plane
Carburetor Quantity:
Three
Carburetor Flange Type:
2-Barrel 4-Bolt
MFG. Part #:
3558
Garage Sale:
No
Notes
Accepts 3-1/4" x 1-7/8" small base Rochester carbs. HEI will not fit.

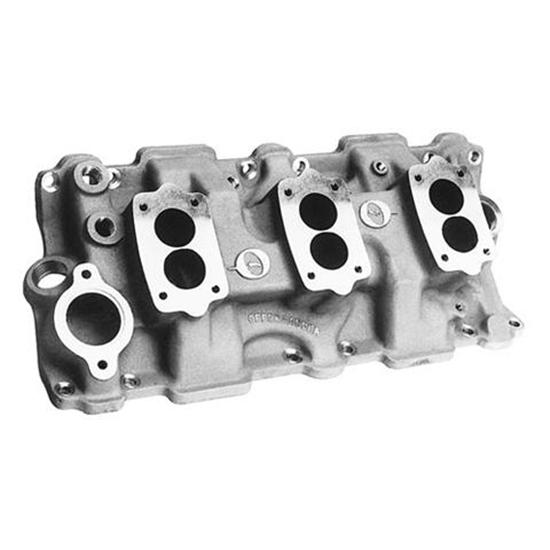

Offenhauser 1955-1986 Small Block Chevy Three Deuce Intake Manifold

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Offenhauser 3x2 tri-power manifold for 265-400 Small Block Chevy. Carb mount stud pattern is 1-7/8" x 3-1/4" (small base Rochester).

  • Hole in front to accepts an oil fill tube
  • HEI distributor will not fit

Customer Reviews

This product has no reviews.

Product Q&A

8 questions : 8 answers

1 answers

is there a choke spring for the tri power 5419 intake its a great set up just dont want a manual choke cable 86 305 chevrolet motor

showstopper
March 07, 2015

is there a choke spring for the tri power 5419 intake its a great set up just dont want a manual choke cable 86 305 chevrolet motor

Answers

March 10, 2015
EricM
We apologize but there is not a choke port for warm up of the older style choke spring on these intakes and the only other option would be an electric choke if the older carbs can be converted to electric.
1 answers

What is the port size? I would like to know the width and length of the ports on the Offenhauser 3558 intake. Thanks!

Tinshed
September 24, 2014

What is the port size? I would like to know the width and length of the ports on the Offenhauser 3558 intake. Thanks!

Answers

September 25, 2014
EricM
This intake has a stock intake port size which is 1 3/16" wide and 1 15/16" tall.
1 answers

water neck. stopped in 8/12/14 picked up water neck pointed to the left, it measured 1.625 tall, the Rochester carb sits 1.50 above water neck, which water neck is needed? or do I stack gaskets on that carb?

missle
August 13, 2014

water neck. stopped in 8/12/14 picked up water neck pointed to the left, it measured 1.625 tall, the Rochester carb sits 1.50 above water neck, which water neck is needed? or do I stack gaskets on that carb?

Answers

August 14, 2014
EricM
Water outlets 7204788 and 7204789 will clear the front carburetor.
1 answers

offenhauser manifold center line same as eldebrock 5 1/2? My fuel line is made for 5 1/2 spacing for rochester carbs is it the same spacing Thanks

Kreepi1
Shasta Lake ca, 96019
November 17, 2012

offenhauser manifold center line same as eldebrock 5 1/2? My fuel line is made for 5 1/2 spacing for rochester carbs is it the same spacing Thanks

Answers

November 19, 2012
Jason
Carb spacing is 5 1/2" center to center.
1 answers

Will this manifold accept a electronic Distributer/ magneto?

August 01, 2011

Will this manifold accept a electronic Distributer/ magneto?

Answers

August 02, 2011
John
This manifold does NOT allow sufficient clearance for an HEI distributor. It will accept an electronic distributor such as Speedway’s 44710070, 91030000, or the Joe Hunt mag look distributor number 91012550.
1 answers

What are the torque settings for the intake manifold bolts for this manifold? Thanks

23TRod
New England
July 04, 2011

What are the torque settings for the intake manifold bolts for this manifold? Thanks

Answers

July 05, 2011
Jason
Intake bolts should torque to 35 foot pounds
1 answers

How would you attach a PCV valve using this manifold? I have a polished one of these on my 350 Chev in a 23T. Engine came with polished Corvette valve covers with no breather. This was a show car for 20 years but now I want to drive it. It keeps blowing o

23 T show car
New England
May 31, 2011

How would you attach a PCV valve using this manifold? I have a polished one of these on my 350 Chev in a 23T. Engine came with polished Corvette valve covers with no breather. This was a show car for 20 years but now I want to drive it. It keeps blowing o

Answers

June 03, 2011
John
This Offenhauser 3 deuce intake has provision in the front adjacent to the thermostat housing to run the old style breather tube number 91017441 along with cap 5502060. If this provision is plugged or capped the only other option for crankcase ventilation is valve covers such as 91017161, 91017162, 91017110, or any other styles offered that accept breather caps. It is not recommended to drill and tap the intake for plumbing of a PCV valve. If desiring to run a PCV we would suggest a carb spacer plate with plumbing capabilities and run under the primary carb to a valve cover with the PCV valve.
1 answers

Is this intake cast Iron or Aluminum?

April 29, 2011

Is this intake cast Iron or Aluminum?

Answers

May 03, 2011
Craig
That intake part # 5603558 is an aluminum intake manifold.
Page 1 of 1
