Non-Wing Front Axles

SAME DAY SHIPPING! Order within the next 10 hours 24 minutes and receive same day shipping

Specs
Material Type:
Chromoly
Sold in Quantity:
Each
Diameter:
2-1/4
Material Thickness:
.120
King Pin Centers:
-
King Pin Inclination:
8 Degree / 12 Degree
Non-Wing Front AxlesNon-Wing Front Axles
Non-Wing Front Axles

Click image to enlarge

Speeday Motors Logo
X
Non-Wing Front Axles

Details

Reviews

Q & A

What's in the Box

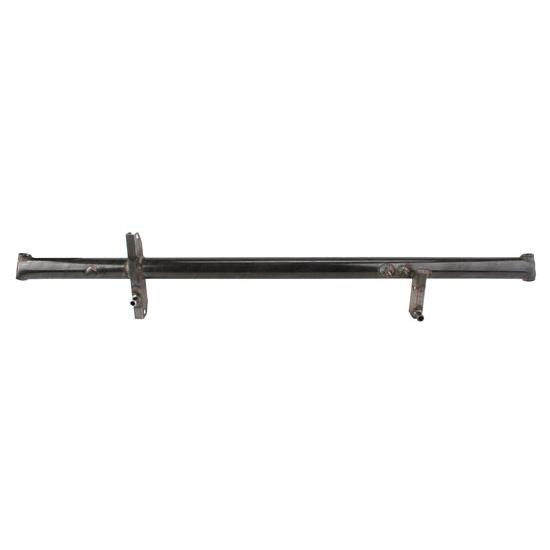

Hand crafted front axles are constructed of 2-1/4" diameter, .120" wall 4130 chromoly steel for durability and longevity. Has an 8° left /12° right kingpin inclination. Plain steel finish only. Speedway axles are all reamed for correct kingpin fit.

  • 49" axle built with 1/2" offset
  • 50" axle built with 1-1/2" offset
  • 52" axle built with 3-1/2" offset
  • 53" axle includes sway bar studs

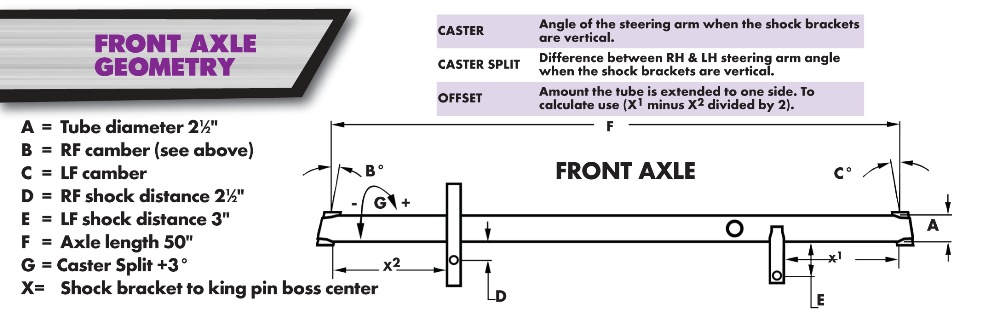

Front Axle Geometry (Link)

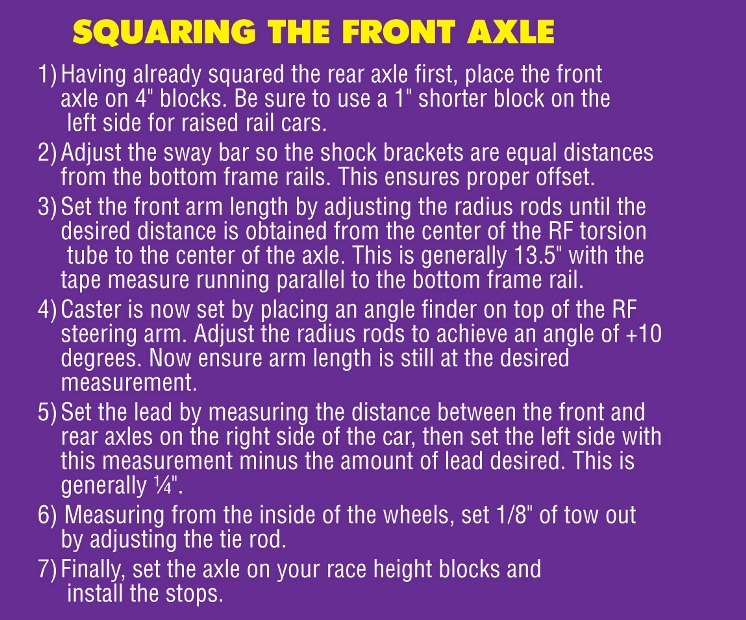

Squaring the Front Axle (Link)

You may also be interested in:

Speedway Sprint Car Front Axle, 50 In. Wide, 2-1/4 x .120


We offer you the choice of these 4130 chromoly Sprint axles which are replacements for Maxim, J&J, Eagle, and many other chassis. These axles are no longer chrome or nickel plated, available in a plain steel finish. Speedway axles are all reamed for correct kingpin fit.

The 2-1/4" x .120 wall axle is available on 50" with 1-1/2" offset and has 10° kingpin inclination on both sides.

Front Axle Geometry (Link)

Squaring the Front Axle (Link)
