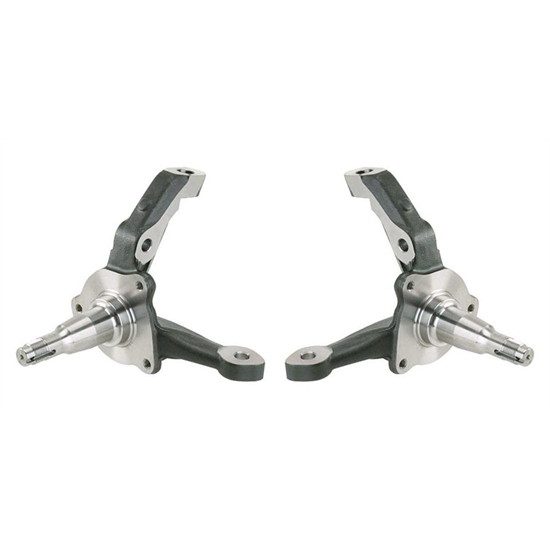

Mustang II Steel Spindles

SAME DAY SHIPPING! Most orders ship within 24 hours.

Free Shipping Free Shipping
Specs
Material Type:
Steel
Overall Height:
7.625
Sold in Quantity:
Pair
Garage Sale:
No
Notes
Replacement for '74-'80 Pinto/Bobcat and '74-'78 Mustang II.
Mustang II Steel Spindles
Mustang II Steel Spindles
Mustang II Steel Spindles
Mustang II Steel Spindles

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Heat treated forged steel spindle that retains stock factory geometry. Direct replacement for 1974-1980 Pinto/Bobcat and 1974-1978 Mustang II. Uses all stock rotors, bearings, calipers, etc. Stock height.

910-34307 Instructions (PDF)

Notes

  1. The Mustang II spindle has been used in street rod applications for years. As such, many brake kits have been developed for them. One can get kits with rotors of 9-1/2", 10", 10-1/2" or 11".
  2. Caliper choices are full size GM, orginal Ford, GM Metric or Wilwood. Bolt patterns are available in 5 x 4-1/2", 5 x 4-3/4", and 5 x 5".
  3. The biggest brake kit we offer for this spindle is #91031943, with 1969-1972 Chevelle 11" rotors, full size calipers and standard Chevy 5 x 4-3/4" bolt pattern.

Customer Reviews

Rated 4.6 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Kieran
Verified Purchaser
Verified Reviewer
patterson ca

Solid part

July 16, 2015
Can't really complain. Solid piece good turnaround on order time
Pros:
  • Solid Piece Of Equipment
  • Very Solid Piece
Cons:
  • None
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Bobs34
Verified Purchaser
Buffalo, Wy.

Excellent product.

August 04, 2014
Quick shipping and reasonable shipping thru e-bay. Product fits right. Very reliable seller for a lot of years, Thank you!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

stevend

good spindles

September 26, 2013
Good oem fitment. Would recomend these to other people.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jim
Pa.

Mustang II spindles

June 05, 2010
Look fine.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

tiny
sioux falls sd

nice piece

March 26, 2010
Looks as good sa the one priced twice the price.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 5 answers

2 answers

are these front or rear steer?

vernont
November 02, 2013

are these front or rear steer?

Answers

August 05, 2014
Bobs34
These are front steer units for rack and pinion. I used the stock ht. to replace the 2" lowered spindles that were too low. Perfect fitment.
November 05, 2013
EricM
These Mustang II spindles are front steer and represent 74-80 Mustang II applications.
1 answers

does these fit stockcontrol arms

January 02, 2012

does these fit stockcontrol arms

Answers

January 06, 2012
Jason
This spindle retains all stock factory geometry, will work with stock control arms
1 answers

CAN I USE MY ORIGINAL SPINDELS WITH THIS UPPER/LOWER CONTROL KIT/ BALL JOINTS' MY BALL JOINT TOP OF CONE SIZE .560 AND BASE OF CONE .622 THANKS EDDIE

EDDIE
June 07, 2011

CAN I USE MY ORIGINAL SPINDELS WITH THIS UPPER/LOWER CONTROL KIT/ BALL JOINTS' MY BALL JOINT TOP OF CONE SIZE .560 AND BASE OF CONE .622 THANKS EDDIE

Answers

June 10, 2011
John
Speedway’s Mustang II spindles carry the same dimensions as the stock spindles and accept the standard bolt on components. Our upper and lower ball joints match our aftermarket spindles and the OEM spindles as far as diameter and taper of ball joint holes which is 7 degree.
1 answers

Is this for 1 spindle or 2 for the the price listed?

Chantz
Arizona
April 03, 2011

Is this for 1 spindle or 2 for the the price listed?

Answers

April 05, 2011
Tech Support
These are sold in pairs.
Page 1 of 1
