Mustang II Outer Tie Rod End, Manual Version

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Sold in Quantity:
Each
Degree of Taper:
7 degree
Center Hole to End of Shank:
3.400
Thread Length:
1.900
Stud Length:
1.750
Stud Diameter:
0.500

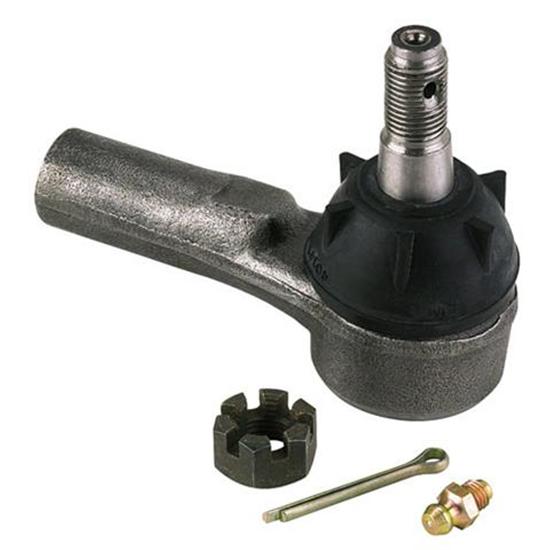

Mustang II Outer Tie Rod End

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Outer tie rod and inner extension fits left or right, attaches steering rack to spindles. Fits both manual Mustang II and 1982-1988 T-Bird power racks.

  • 9/16"-18 R/H female thread
  • 3.40" long from stud centerline to end

Customer Reviews

Rated 4.8 out of 5 by 8 reviewers.
RATING BREAKDOWN
8 reviews
5 Stars
6
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

DYNODALE1
Verified Purchaser
La Center, WA, USA

Excellent service and a great price!

July 13, 2014
I called every parts store in town. They wanted three times as much, and told me that it could take up to six weeks to get it, because the parts had been discontinued. You had the parts and delivered them on time. Thank You! SPEEDWAY THE ONLY WAY
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

abfdan67
Verified Purchaser

quality tie rod ends

July 09, 2014
good quality piece excellent price ships same day usally with in a few hours same quality as the ones I replaced!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

jmjwalke
Verified Purchaser
Vista California

Good Part

April 26, 2014
The parts are a good fit however, I had to re-tap one barrels.. One barrel had some rough threads that I could not smooth out by just threading the the tie rod end on. So, be prepared to purchase a large tap.
Pros:
  • Inexpensive
Cons:
  • had to tap one of the ends
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Fluffy
Verified Purchaser
Yale Ok

really nice product. fit's well

September 22, 2012
used this part on a street rod. v8 71 beetle with s10 front end. have to change taper, but i know that going in.
Pros:
  • Durable
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

andy
Verified Purchaser
pottsville, arkansas

as advertised

January 03, 2012
none
Pros:
  • Easy To Use
  • Versatile
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

andy
Verified Purchaser
pottsville, arkansas

as advertised

January 03, 2012
none
Pros:
  • Easy To Use
  • Versatile
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Landrods
Verified Purchaser
N. Ft. Myers, FL.

No jam nuts

January 01, 2011
There were no jam nuts with the tie rod end and you do not offer them in your jam nut selection
Pros:
  • Easy To Use
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Joe Ro.
Verified Purchaser
East Tennessee (not by choice)

Just as Good as Moog

September 13, 2010
[...]
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 8 answers

1 answers

will this fit into an 82 chevy c10 1/2 ton spindle? if not do you have a tierod end that will and also fit the mustang ii manual rack?

jcotten
March 27, 2014

will this fit into an 82 chevy c10 1/2 ton spindle? if not do you have a tierod end that will and also fit the mustang ii manual rack?

Answers

March 27, 2014
EricM
No this will not fit your Chevy pickup spindle. Sorry I do not have a tie rod end that will screw onto a Mustang II rack and fit your spindle.
2 answers

Will these work on my 51 Chevy pickup with a Heidts Mustang II crossmember and a T-Bird power rack or do I need the extended length or extensions?

Zimspad
June 10, 2013

Will these work on my 51 Chevy pickup with a Heidts Mustang II crossmember and a T-Bird power rack or do I need the extended length or extensions?

Answers

May 19, 2014
jmjwalke
It fits all Mustang II and T Bird rack and pinion.
June 11, 2013
Jason
Standard length outer tie rod ends number 91034316 will work on a 51 Chevy pickup Mustang II front end.
1 answers

What is the taper angle on the stud?

Ben
Bellingham, Wa
February 26, 2011

What is the taper angle on the stud?

Answers

March 08, 2011
Jason
The taper angle is 7 degrees.
1 answers

What is the length of the taper?

March 13, 2012

What is the length of the taper?

Answers

March 15, 2012
QC
The length of taper is 9/16". This only includes the area that is tapered, not the entire length of the stud.
2 answers

Building a 37 ford with mustang II front suspension and power steering rack. Will this tie rod end be correct? Thank you,

Dave
Henderson KY.
October 31, 2011

Building a 37 ford with mustang II front suspension and power steering rack. Will this tie rod end be correct? Thank you,

Answers

April 27, 2014
jmjwalke
I installed the Mustang II power Rack and pinion on a 1947 for and they work perfectly. However, I had to tap one of the tie rod end barrels as it had some rough threads. Do not force them on, should be able to easily thread them all the way on by hand.
November 01, 2011
John
Part # 91034316 This is the standard length tie rod and should be correct for the 37 Ford with an original dimensioned Mustang II style front suspension. It works with the 74-80 Mustang II manual rack or the 82-88 :Thunderbird power rack as available through Speedway Motors. It accepts a 9/16 x 18 male tie rod.
1 answers

Dose this tie rod end need jam nut? If so what size, why don't you sell them? thanks

jer
free union, va
August 25, 2015

Dose this tie rod end need jam nut? If so what size, why don't you sell them? thanks

Answers

August 25, 2015
Eric
Expert
We offer jam nuts 91034 for these Mustang II tie rod ends.
Page 1 of 1
