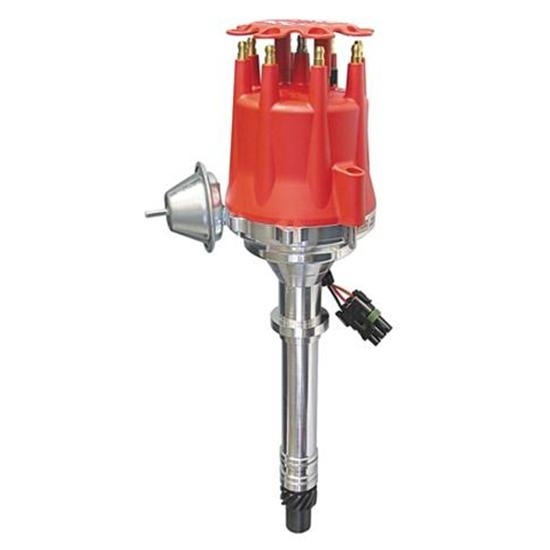

MSD 8360 Chevy V8 with Internal Module Distributor
Click image to enlarge
Q & A
What's in the Box
The Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs. Simply install the distributor in the engine, connect three wires, the coil and fire it up! A maintenance-free magnetic pick-up accurately triggers the module. The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engine’s idle, improve starting and provide a much higher rpm range. The Ready-to-Run features MSD’s adjustable mechanical advance which allows you to custom tailor an ignition curve to match your engine’s needs. There is also a vacuum advance canister to help improve economy. For positive street performance, the Ready-to-Run is the best choice.
- Simple and clean installation with only three wires to connect
- Powerful built-in module produces a 7.5 amp single spark through high rpm
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Vacuum advance canister for improved economy (can be locked out)
- CNC machined billet aluminum housing and billet aluminum base
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Advance plate and weights are fine blanked from Chromoly steel and QPQ coated for friction reduction
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance weight pins are staked and tig welded to the plate
- Nylon pads ensure smooth operation of the advance weights
- Special oil tract improves lubrication to the distributor and cam gear
- O-ring seals can be added to modified blocks to improve oil pressure control
- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- Does not require an MSD Ignition Control
- CARB E.O. Approved
547-8360 Instructions (PDF)
- Does not require an MSD Ignition Control.
- If replacing a GM HEI, a Blaster coil and coil wire are required.
- If replacing a GM HEI, a Blaster coil and coil wire are required
- High output ignition module provides plenty of spark for improved performance
Item DetailsSB/BB Chevy
