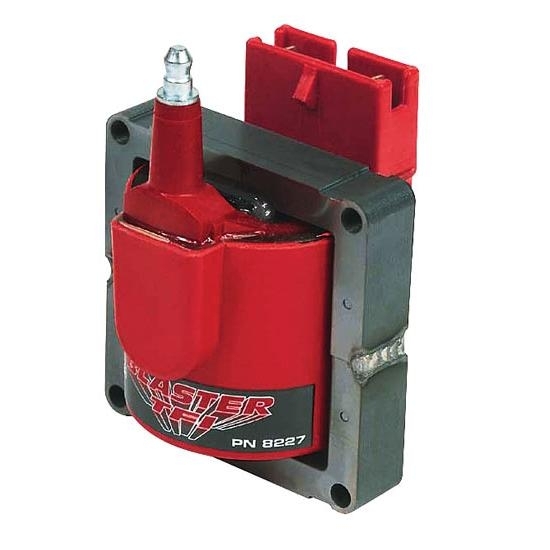

MSD 8227 Blaster Coil - Ford

Sold in Quantity:
MFG. Part #:
Peak Current:
Spark Duration:
Turns Ratio:
Garage Sale:
Maximum Voltage:
Secondary Resistance:
MSD 8227 Blaster Coil - Ford
MSD 8227 Blaster Coil - Ford
MSD 8227 Blaster Coil - Ford

Click image to enlarge



Q & A

What's in the Box

Top off your Ford or GM Ignition system with these great new replacement coils. The Blaster TFI and GM Coils have MSD performance in factory style housings!MSD designed these Coils by combining our Blaster Coil experience with E-core coil efficiency. Each coil has a unique turns ratio plus there is lower primary resistance than the stock coil. This all amounts to a bolt-in replacement coil that produces more output voltage. The Coils will work with stock ignition systems as well as MSD equipped cars and trucks.

  • Direct performance replacement for Ford TFI coil
  • 85:1 turns ratio and lower primary resistance produce high voltage output
  • Works with stock ignition as well as MSD Ignitions
  • CARB E.O. Approved

547-8227 Instruction Sheet (pdf)




Turns Ratio:100:1
Primary resistance:.68 OHMs
Secondary resistance:4.8K OHMs
Inductance:5.6 mH
Maximum voltage:44,000 Volts
Peak current:220 mA
Spark duration:300 uS

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

Can this be used if I converted my car from EFI to Carb

February 23, 2014

Can this be used if I converted my car from EFI to Carb


February 24, 2014
Yes this coil will still work with a carbureted engine as long as you are using the Ford TFI ignition system.
