Monroe Tie Rod Conversion Kit

Specs
Material Type:
Steel
Overall Length:
3.25
Sold in Quantity:
Pair
Finish:
Zinc
Shank Length:
.60
Shank Diameter:
.50
Degree of Taper:
7 degree
Thread Pitch:
1/2"-20
Garage Sale:
No

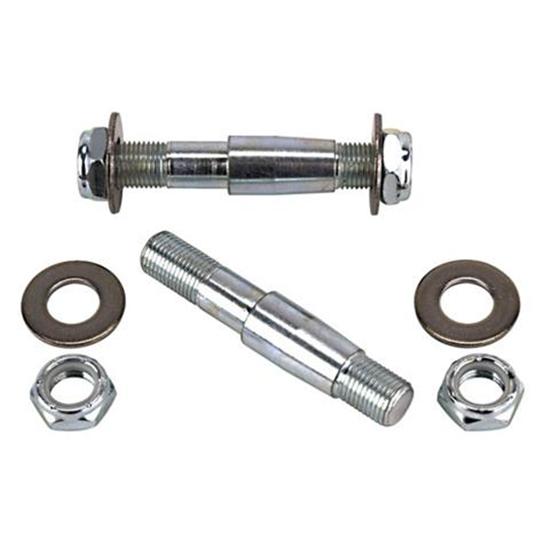

Monroe Tie Rod Conversion Kit

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Converts any 1/2" bearing end shocks to tie rod end. 7° taper. Adapter studs are threaded 1/2"-20 on each end with an overall length of 3-1/4". One end has a 7° tapered pin, the other end is 1/2" dia.

Customer Reviews

Rated 4.8 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
4
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

WJeff27
Verified Purchaser
Columbus, OH, USA
Product Rating

Smooth

August 24, 2014
Did exactly what I wanted it to do. Snug fit and looks good.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

phantomjock
Verified Purchaser
Red Neck Riveria
Product Rating

EXCELLENT!

June 10, 2014
I needed these to make rear Toe-Control struts for my Rear suspension. These fit the C5 Corvette uprights PERFECTLY. Thanks Monroe and SPEEDWAY!
Pros:
  • great price too.
  • telling everyone these are perfect.
Cons:
  • had to "stumble" on to these.
  • mention fitment on c5/6 corvette uprights
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

maxim118
California, USA
Product Rating

Tie rod adapter.

March 06, 2013
Great quality product, especially when you compare to other similar products on the market. Great value for the such small price. Thank you SPEEDWAY!!!
Pros:
  • quality price value.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Vette Guy
Verified Purchaser
Palm Bay, Fl
Product Rating

Great part

May 21, 2012
Used to make easy to adjust C4 corvette rear toe rods
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Loud Frog
Verified Purchaser
Rockwall Tx
Product Rating

A must with the shock tower

November 09, 2010
Simple and quick attachment to Speedway shock tower. Can mount shock to either side of tower. Nice finish.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

Can I mount a shock eyelet width of 1 1/2" to these?

1 answers
wdp23
Utah
November 29, 2014

Can I mount a shock eyelet width of 1 1/2" to these?

Answers

December 01, 2014
EricM
No this will not work with a shock eyelet width of 1 1/2". The 1/2" OD side of this adapter is 1 3/8" long. It works with shocks that have an eyelet width of 1" or less.

Could you please tell me the overall length and diameter of the tapered portion on these?

1 answers
Will
Hawaii
September 21, 2012

Could you please tell me the overall length and diameter of the tapered portion on these?

Answers

September 26, 2012
QC
Overall length 3.1805 OD big end of taper.622 OD small end of taper .548

I am replacing the old Monroe Shock Absorbers on my vintage race car. Is this part the one that allows for the installation of newer model shock absorbers onto the old Monroe shock mounts?

1 answers
Jim
Fort Myers, FL
October 11, 2011

I am replacing the old Monroe Shock Absorbers on my vintage race car. Is this part the one that allows for the installation of newer model shock absorbers onto the old Monroe shock mounts?

Answers

October 13, 2011
John
Part # 535AK35 If your vintage race car shock mounts currently are using the old style shocks with the 7 degree taper studs these adapters bolt on to the later bearing eye shocks and furnish the 7 degree taper for mounting in your original shock mounts with the tapered hole

Monroe tie rod conversion kit; Can this be used for connecting "heim" rod ends to 47 ford steering arm with taper?

1 answers
Crazylegs
Bemidji, Mn
October 07, 2012

Monroe tie rod conversion kit; Can this be used for connecting "heim" rod ends to 47 ford steering arm with taper?

Answers

October 08, 2012
Jason
This could be used to adapt your Ford arms to heim ends but the O.D. for the heim is ½”. If you want to run 5/8” heims which are common to the tie rods we offer part number 91636055 and specify Ford/Pinto for the correct taper
Page 1 of 1
