Model A 4-Bar Tube Axle Kit for Chevy Spindles, Plain

Model A 4-Bar Tube Axle Kit for Chevy Spindles, Plain

Click image to enlarge

Please note the following about this product:

  • This item is sold as a kit.

Details

Reviews (0)

Q & A (2)

What's in the Box

Info

Save yourself searching and confusion with these complete 1928-31 Ford Model A front suspension kits. Each kit includes a 48" wide, 3" drop tube axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly. (Spring and frame brackets are not stainless steel).

Kit requires 1949-54 Chevy passenger car spindles.

Each kit includes:

  • 48" wide (kingpin-to-kingpin) steel tube axle, 3" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel spring perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 31-1/4" eye-to-eye 4-leaf Super Glide spring, 1-3/4" wide
  • All hardware for assembly

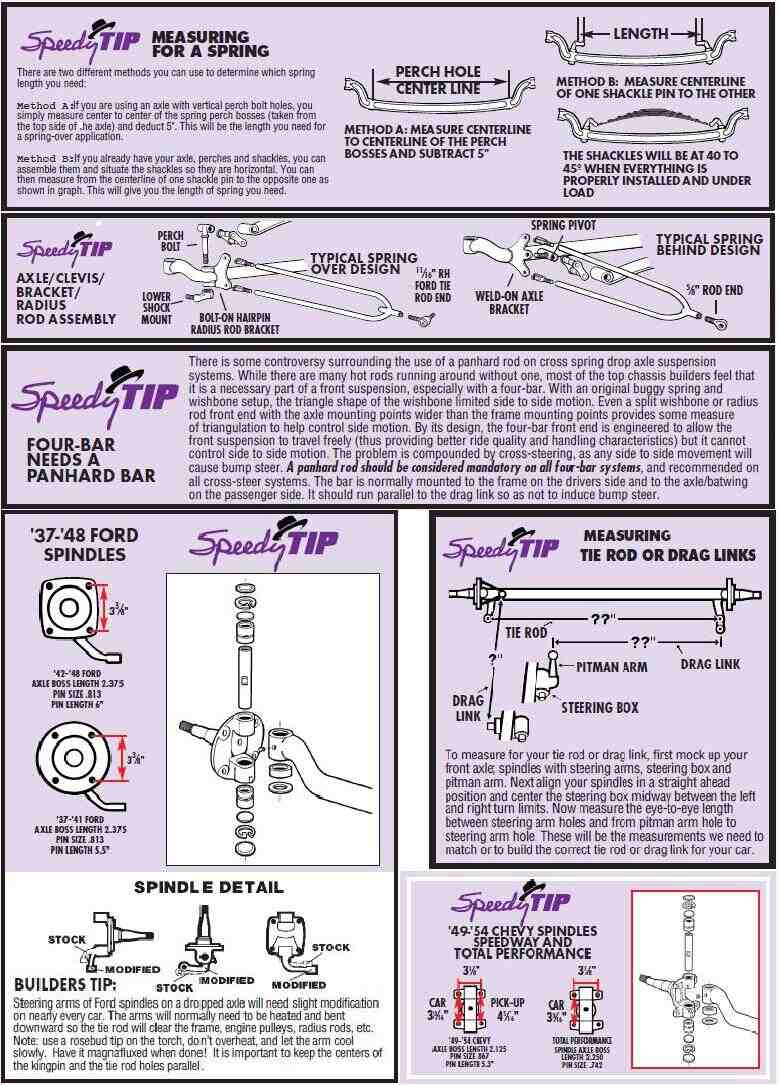

Front Axle/Suspension Tech Tips (GIF)



Notes

We strongly reccommend the use of a front panhard bar (such as our 910-49801)  with four bar front suspensions. Four bar suspensions increase suspension travel over original wishbones or radius rods, which increases the need for side-to-side axle control. If using a Vega cross steering system, the panhard bar becomes mandatory as any side-to-side movement will cause bump steer.

Customer Reviews

This product has no reviews.

Product Q&A

2 questions : 2 answers

1 answers

Do you offer a kit like this for coil/over shocks? Want to use coil/over shock units to dial-in the spring and shock rates for a light vehicle. Can the coil/over shocks be mounted to the lower shock mounts provided with this kit to mount the coil springs ahead of the front axle?

carcrazy
November 13, 2014

Do you offer a kit like this for coil/over shocks? Want to use coil/over shock units to dial-in the spring and shock rates for a light vehicle. Can the coil/over shocks be mounted to the lower shock mounts provided with this kit to mount the coil springs ahead of the front axle?

Answers

November 14, 2014
EricM
Yes we do offer several coil over options for this kit. A popular choice is our part number 721485 and is a QA1 12” eye to eye coil over kit. Another common choice is 2552254E which is a Carerra coil over kit with a 225 lb spring.
1 answers

whats the difference between 32-34 ford 4 bar and model a 4 bar?

August 02, 2011

whats the difference between 32-34 ford 4 bar and model a 4 bar?

Answers

August 03, 2011
John
Between a Model A axle kit and a 32-34 kit the frame brackets are different to compensate for different frame width and height. Also the Model A frame is narrower than the 32-34 so the variance needed to be compensated for. If using on a different application you may want to look at the 32 frame dimensions as published in our catalog or available from many restoration suppliers.
