The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafel skirt coating. Ford Ford 2300cc (3.78" bore x 3.126"stroke). A 1.5mm 1.5mm 3.0mm file fit performance ring set is included. Uses .927" wrist pins.Forged piston for performance applicationsFully-machined crownGrafal anti-Friction coating on skirtsPhosphate-coated to reduce micro-welding and pin gallingPin bores binished on CNC boring equipmentDeburredHigh strength light weight steel pinsRace ...

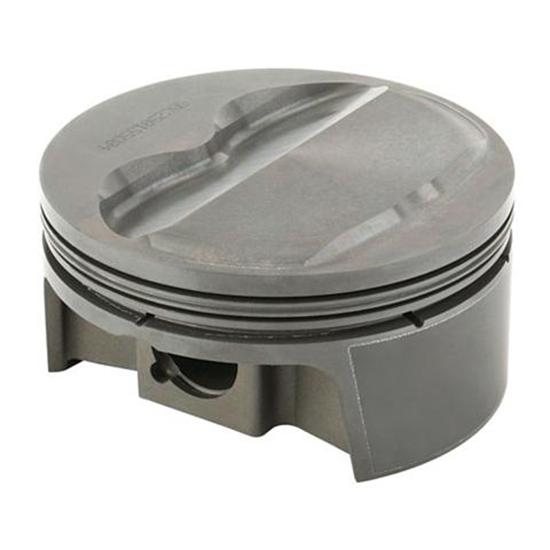

The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke). Comp Height 5.7" Rod: 1.550 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 350 c.i. S/B Chevy (4.000" bore x 3.48" stroke). Comp Height 6.0" Rod: 1.250 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. Forged piston for performance applications Lightweight slipper kirt forgings Fully-machined crown Grafal anti-Friction coating on skirts Phosphate-coated to reduce micro-welding and pin galling Pin bores finished on CNC boring equipment ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 400 c.i. S/B Chevy (4.125" bore x 3.75" stroke). Comp Height 6.0" Rod: 1.250 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...

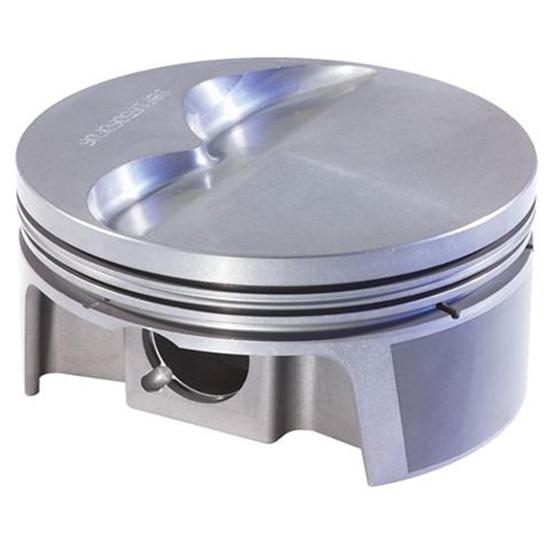

The Mahle PowerPack Pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafel skirt coating. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . 347 uses .927" pin Comp Height: 1.090 (includes oil support rails) Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 Max = 0.0033 *The location to measure piston-to-wall clearance for each application. This point is calculated from the bottom of the piston skirt and ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 383 c.i. S/B Chevy (4.000" bore x 3.75" stroke). Choose oversize diameter needed. Mahle's phosphate coating provides the grey appearance to the piston. This dry ...
Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances and improved temperature stability.Forged piston for performance applications Fully-machined crownGrafal anti-Friction coating on skirtsPhosphate-coated to reduce micro-welding and pin gallingPin bores binished on CNC boring equipmentDeburredHigh strength light weight steel pinsRace ...
Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins, and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. Forged piston for performance applications Fully-machined crown Grafal anti-Friction coating on skirts Phosphate-coated to reduce micro-welding and pin galling Pin bores binished on CNC boring equipment Deburred High strength, light weight ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 377 c.i. S/B Chevy (4.125" bore x 3.48" stroke). Comp Height 5.7" Rod: 1.550 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 377 c.i. S/B Chevy (4.125" bore x 3.48" stroke). Comp Height 6.0" Rod: 1.250 Pin Diameter: 0.927 Clearance Guide *Meas. = 0.500 Min = 0.0025 ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances, and improved temperature stability. 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . For 434 c.i. S/B Chevy (4.125" bore x 4.00" stroke). Choose standard or oversize diameter needed. Comp Height: 1.000 (includes oil support rails) Pin Diameter: 0.927 ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances and improved temperature stability.1.5mm 1.5mm 3.0mm file fit performance ring set is included. For 434 c.i. S/B Chevy (4.125" bore x 4.00" stroke). Choose standard or oversize diameter needed.Comp Height: 1.000 (includes oil support rails)Pin Diameter: 0.927Clearance ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings, wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafel skirt coating. Ford Ford 2300cc (3.78" bore x 3.126" stroke). A 1.5mm, 1.5mm, 3.0mm file fit performance ring set is included . Uses .927" wrist pins. Forged piston for performance applications Fully-machined crown Grafal anti-Friction coating on skirts Phosphate-coated to reduce micro-welding and pin galling Pin bores binished on CNC boring equipment Deburred High strength, light weight ...
The Mahle PowerPak pistons are a race proven lightweight forged design that are complete with rings wrist pins and locks. They are also completely phosphate coated plus feature an anti-friction Grafal skirt coating. PowerPak pistons are made from 4032 aluminum alloy to allow for tighter cylinder to wall clearances and improved temperature stability. 1.5mm 1.5mm 3.0mm file fit performance ring set is included. For 383 c.i. S/B Chevy (4.000" bore x 3.75" stroke). Choose oversize diameter needed. Mahle's phosphate coating provides the grey appearance to the piston. This dry lubricant ...
