Late Carburetor Adapter

SAME DAY SHIPPING! Order within the next 5 hours 38 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
1.50
Overall Width:
2.67
Overall Length:
4.00
Sold in Quantity:
Each
Finish:
Natural
Bolt Hole Pattern:
3.250" x 1.875"
Notes
Mounts '55-'68 small-base Rochester/Carter carb to an old style Ford 3-bolt intake (for 94's 97's, etc.), or vice versa.

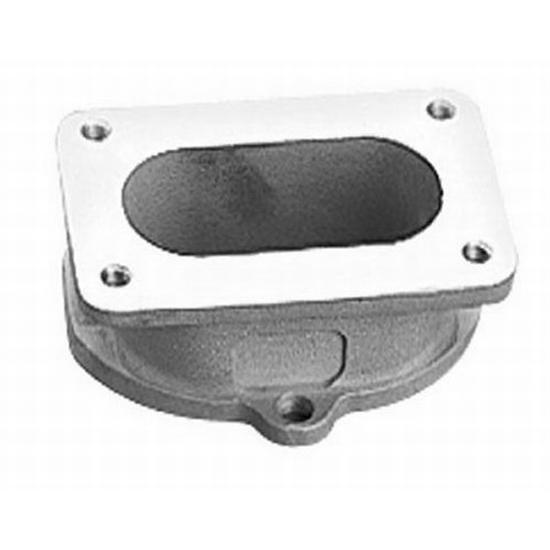

Late Carburetor Adapter

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Bolt a newer type 4-bolt carb (3-1/4" x 1-7/8", like Rochester 2GC) to an early 3-bolt manifold. Aluminum casting.

560-5159 Instructions (PDF)

Note: If bolting this adapter to a 3-bolt intake, consider using a slotting drill bit to drill out the three holes which will aid in adjustment and installation of the adapter to the intake.

Customer Reviews

Rated 4 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

petemcl
Verified Purchaser
Northville, MI

Fits poorly

February 22, 2012
When installing with 3 hole side down there is no clearance on the 3 hole side for installing nuts. The rear is impossible. Had to go to a special nut with a 3/8" head. Short term these should be included with the part. Long term the casting should be changed or some machining done to give adequate clearance for standard nut and wrench. All three holes are tight but the single rear is the worst.
Pros:
  • Holes threaded both sides
  • Holes are perfectly spacd
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

butcherted
Verified Purchaser
hagerstown,md

worked great

June 24, 2011
this part worked out great
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

fnmopar
pitman nj

works perfect

June 03, 2010
used this to adapt a stromberg 97 to my 241 red ram hemi original manifold to replace the old stromberg ww carb
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

Will this work? My friend bought a 305 from a formula. But thwy cut the wiring harness and didn't sen the computer, we are going to standard carberated with a 500 cfm Holley Double barrel... It had a Rochester 3 bolt on it... Will it make the conversion for us? 3 bolt to 4 bolt holley?

Wolfenstien
October 27, 2014

Will this work? My friend bought a 305 from a formula. But thwy cut the wiring harness and didn't sen the computer, we are going to standard carberated with a 500 cfm Holley Double barrel... It had a Rochester 3 bolt on it... Will it make the conversion for us? 3 bolt to 4 bolt holley?

Answers

October 28, 2014
EricM
No this will not fit your throttle body injection intake manifold, nor a 500 cfm Holley 2 barrel. Sorry we do not offer an adapter for that conversion. You may be better off changing the intake manifold to a four barrel version such as 91011260 and then simply using a four barrel carburetor or to use the Holley 2 barrel an adapter such as 1351936A on the four barrel intake.
1 answers

Will this reverse-fit to a stock 49-51 Merc intake? I am trying to adapt a 94 or 9Super7 to my stock Mercury intake (4 bolt) I now have a collection of 2GC's that are not the right size baseplate. So I figure I would just go traditional, but I don't want to buy a new intake.

TheMerc
Evansdale, Ia, USA
February 17, 2014

Will this reverse-fit to a stock 49-51 Merc intake? I am trying to adapt a 94 or 9Super7 to my stock Mercury intake (4 bolt) I now have a collection of 2GC's that are not the right size baseplate. So I figure I would just go traditional, but I don't want to buy a new intake.

Answers

February 18, 2014
EricM
We apologize but adapter number 5605159 has the same 4 bolt pattern as the Rochester 2GC. This is 3 ¼ side to side and 1 7/8” front to back.
1 answers

I was wanting use this to bolt a 9 super 7 carb to a 348 tri power intake. Will this work for that application?

August 22, 2011

I was wanting use this to bolt a 9 super 7 carb to a 348 tri power intake. Will this work for that application?

Answers

August 23, 2011
John
THIS ADAPTOR IS APP. 1-1/2" THICK. IT CAN BE USED TO PUT A 55-68? SMALL-BASE ROCHESTER/CARTER CARB ON AN INTAKE FOR 3 BOLT OLD FORD (94'S, 97'S, ETC) CARBS. IT COULD ALSO BE USED TO PUT 3 BOLT CARBS (LIKE THE '9 SUPER 7') ON INTAKES THAT NORMALLY USE THE SMALL-BASE ROCHESTER/CARTER CARBS. Dimension for the 4 bolt Rochester carburetor are 3 ¼” x 1 7/8”
1 answers

how tall is it

chucky sr.
new york
October 02, 2011

how tall is it

Answers

October 03, 2011
Jason
THIS ADAPTOR IS APP. 1-1/2" THICK. IT CAN BE USED TO PUT A 55-68? SMALL-BASE ROCHESTER/CARTER CARB ON AN INTAKE FOR 3 BOLT OLD FORD (94'S, 97'S, ETC) CARBS. IT COULD ALSO BE USED TO PUT 3 BOLT CARBS (LIKE THE '9 SUPER 7') ON INTAKES THAT NORMALLY USE THE SMALL-BASE ROCHESTER/CARTER CARBS.
Page 1 of 1
