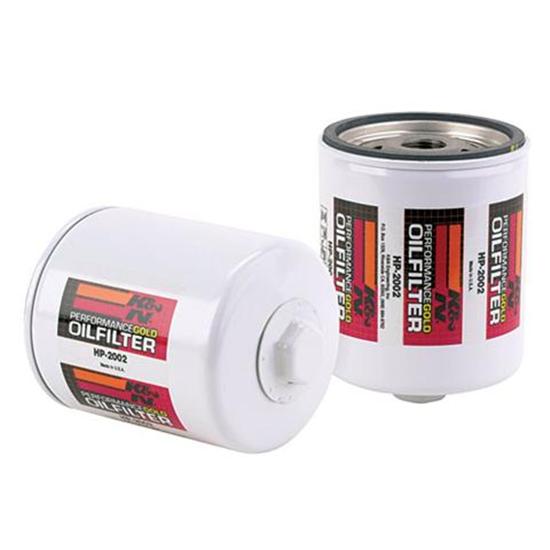

K&N Filters HP2002 Performance Oil Filter, Chevy

SAME DAY SHIPPING! Order within the next 7 hours 48 minutes and receive same day shipping

K&N Filters HP2002 Performance Oil Filter, ChevyK&N Filters HP2002 Performance Oil Filter, Chevy
K&N Filters HP2002 Performance Oil Filter, Chevy

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These filters feature thicker canister walls for extra strength and durability which reduces the risk of damage from loose rocks and debris. Comes with a 1” nut welded to the top of the canister so they can be easily wrenched-off with a standard tool. Plus, the filter media is unaffected by racing gas, methanol and nitromethane fuels.

  • Thicker shell provides 550 psi burst strength
  • Withstands higer oil pressures
  • 12 gpm flow
  • 1 quart capacity
  • Drilled for safety wire attachment

HP-2002 Cross Reference (Link)

Application

HP-2002 Application Chart (Link)

Specs

  • Height: 4.7 in
  • Outside Diameter: 3.68 in
  • Thread Inside Diameter: 0.81
  • Thread Number: 16 UNS
  • PSI Relief Valve: None
  • Anti Drain Back Valve: No
  • Style: Canister
  • Removal Nut: Yes
  • Gasket Material: Nitrile Rubber
  • Filter Material: High Flow Premium Media
  • Bypass Valve: No
