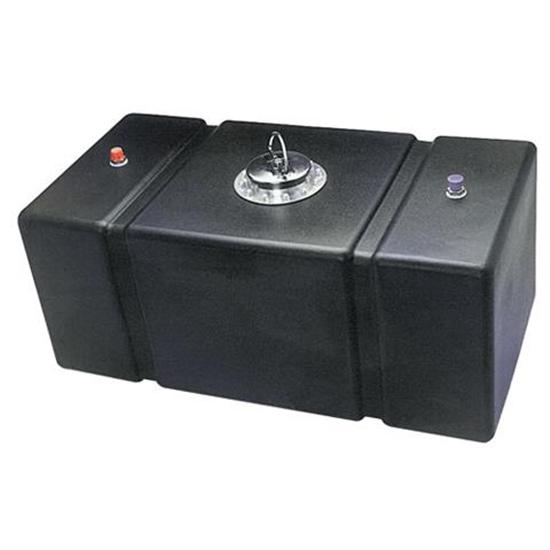

These polyethylene fuel cells are the best cells on the market! This 100% seamless polyethylene cell features one -8 ANpick-up fitting and one -8AN vent/tip-over valve fitting.These fuel cells contain a pickup tube.All cells are NHRA, IHRA, SCORE, and DIRT approved.
Tech Tip: Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
Jaz makes the bestpolyethylene fuel cells on the market! This 100% seamless polyethylene cell features one -8 ANpick-up fitting and one -8AN vent/tip-over valve fitting.These fuel cells contain a pickup tube.All cells are NHRA, IHRA, SCORE, and DIRT approved.
This 3 gallon fuel cell has a -8 AN pickup with a -6 ANvent. It is 10-1/2" tall and measures 12" x 7-1/2" at the bottom, and 10-3/4" x 5-3/4" at the top.

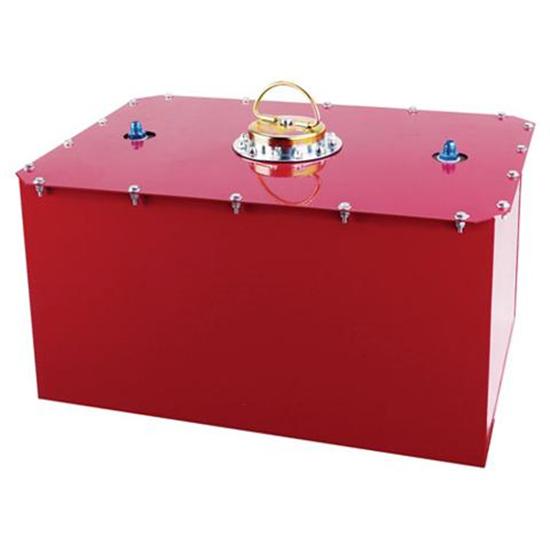

The 20 gauge steel can encloses a tough cross-link polyethylene cell.Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap.Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.
This flapper valve or rollover valve, installs in the fuel cell and is retained by the bolts used to secure the filler cap flange to the cell.
These bolt-in fuel level sending units from Jaz Products feature a positive seal and a 2.3" O.D. bung. For GM gauges with 0-90 ohm range.

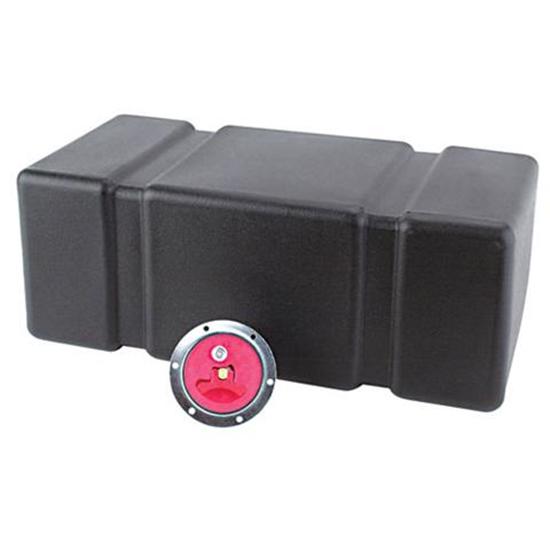

Seamless, one-piece, polyethylene fuel cell. Install your own fittings. Fuel cell has one 3/8" hole pre-drilled due to the injection mold process (located in the center ofone side).
These bolt-in fuel level sending units from Jaz Products feature a positive seal and a 2.3" O.D. bung. ForStewart Warner and Auto Meterstyle gauges with240-33 ohm range.
Seamless, one-piece, polyethylene fuel cell. Install your own fittings. Fuel cell has one 3/8" hole pre-drilled due to the injection mold process (located in the center of theone side).
Cast aluminum fill valve mounts on fuel cell. Has spring loaded flapper valve. Mounts with twelve bolts on a 5" circle. 6-1/2" outside diameter. 2-1/2" hose end.
These bolt-in fuel level sending units from Jaz Products feature a positive seal and a 2.3" O.D. bung. ForStewartWarner and Auto Meter stylegauges with240-33 ohm range.
91676550Overall Diameter5.000"Inside Diameter1.750" (1 3/4")Hose ID2.000"Material TypeAluminumSold in QuantityEachNotes6 mounting holes on a 4.36" bolt circle. Includes mount ring, bolts and gasket.
Replacement fuel cell cap fits 4" necks like those on our Steel Can Fuel Cells,Polyethylene Fuel Cells, and on our 4" Filler Neck Kit 910-76505.
For remote filling of fuel cell. Kit contains a 12-bolt recessed fender fill assembly with vented cap (1/2 turn, twist & lock style).Fender filler flange measures 6-1/4" outside diameter.
This 4" diameter filler neck kit can be used as a replacement unit or for your custom fuel cell. Kit includes a mounting ring, rubber gasket, and bolts.
This oval shape flapper is designed to retrofit all RCI Circle Track cells with the 16 bolt oval type 4" cap assemblies. Hole mount pattern is 8" center to center x 5-1/4" center to center across the oval pattern.
New 26 gallon fuel cell features a 20 gauge steel can with a tough cross-linked polyethylene cell inside. Includes fuel cell, steel can, tip over valve and a twist on cap. Tank is 25" x 17" x 17". Available in Red, White or Black.
The Fuel Safe Enduro racing fuel cell is the best money can buy. Built from high strength components, the Enduro Cell is a favorite with off road racers and circle track teams. It features a polymer bladder, -8AN outlet and vent, internal fuel strainers, full foam baffling, rollover valve, and powdercoated steel container.Can be used with gasoline, alcohol, E85,and nitro.
This fuel cell is design to fit chassis that use the common teardrop design. The red powder coated steel can has an AN10 pickup, AN8 vent/tip-over valve and AN8 return fitting. It is 24-3/4" eide and has a steel fill cap and IMCA approved flapper valve. Mounting straps sold separately.
