Inverted Flare Brake

Hydraulic line pressure keeps brake secure. No special linkage. Not recommended for use with silicone brake fluid or as an emergency brake. Features 1/8" NPT female on inlet/outlet. Device is generally used to lock the rear brakes. To set the lock, step on the brakes, push the lock knob down, and take your foot off the brake. To release the lock, step on the brake again slightly harder than before and it will release automatically. Hydraulic Parking Brake Instructions (PDF)

If you don't want to spend an arm and a leg on a rear disc brake kit and still have to weld the bracket on, we've got you covered. This kit includes bolt-on caliper brackets, 11-1/4" vented rotors, '78-'88 GM metric style calipers, brake pads and hardware. Fits both 5 on 4-1/2" and 5 on 4-3/4" bolt circles For Ford passenger car axles ONLY  Fits axle with maximum flange diameter of 6-1/4" O.D. NOTE: This bolt on brake kit is designed to be used on 8" and 9" housings using ...

Kit includes 25 ft. of nylon brake line with all of the necessary fittings. Save time and weight. Will do most modifieds or sprint cars. 3/16" O.D. line 1900 psi burst pressure 1/8" NPT fittings Not for street use

These high quality stainless steel, braided fluid lines have a 90° fitting on one end and a straight fitting on the other. They work well for brake lines, clutch lines and gauge lines. These are available with AN3 or AN4 fittings. Sold individually. Select applicable length. AN size is the "-#" at the end of the part number.

Rebuilt 1969-77 mid and full size caliper. 7/16"-20 inlet so you can use the readily available brake hoses and hardware from Pre-1978 GM midsize cars. IMCA approved. No core charge required. Fits 1" thick rotor. 2.8" diameter pistons installed. It has 7-1/16" center to center mounting holes. The width between mounting tabs is 2-3/4".

These lightweight Kevlar brake lines are stronger than braided brake lines. They will take more abuse with less expansion. Plus, these lines are smooth and will not rub off your paint like braided lines can. Choose -3 AN or -4 AN aluminum ends.

This is an OEM type single reservoir master cylinder for many 1955-1964 Chevy applications with original drum brakes. Has a 1" bore and a 7/16"-24 IFF outlet port. Not for use with disc brakes. Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection .  Catalog Correction: This unit has a 7/16" outlet, not a 3/8" port as stated in our catalogs.

Ever had problems with a spongy pedal or slow, unresponsive brakes? If so, you may need a residual pressure valve installed in your brake line. A redesidual valve acts like a one-way or check valve to maintain brake system pressure to eliminate the problems of a spongy pedal. This 10 PSI residual valve is installed inline between the master cylinder and drum brake wheel cylinders to keep 10 PSI of residual pressure at the wheel cylinder after the brake pedal is released. This ensures that you will have a high, ...

These proportioning valves are similar to what GM used on many cars in the 70's. They are non-adjustable and may require an adjustable valve in the rear brakes (if needed). Block incorporates metering (for front brakes) and proportioning (for rear brakes) into one unit. For use with front disc, rear drum brake systems. Includes hard lines to connect to a master cylinder with 1/2"-20 and 9/16"-18 outlets. GM Proportioning Valve Plumbing Instructions (PDF)

Lightweight 3/16" nylon line for use with racing brake systems or gauges. Has a 1900 psi burst pressure.

Speedway now offers the stand alone emergency brake system you asked for. Kit includes a 3/16" steel rotor, special pinion adapter, aluminum U-joint girdle, Wilwood mechanical spot caliper, and all hardware. Lightweight aluminum cam-actuated caliper (black anodized) Steel rotor bolts behind the driveshaft yoke U-joint girdle design provides more surface area for the bearing cap for increased strength Girdle manufactured from 7075-T6 aluminum with anodized finish Made in the USA Application specific to Spicer 1310 series u-joint yoke configuration Ford 9 Inch E-Brake Instructions (PDF)

If you want the early look but are reluctant to use old non-energizing drum brakes, we have just what you need. Our 100% new self-energizing backing plate assemblies come  complete with shoes, wheel cylinders and hardware . Fits either the front or rear of 1937-48 Ford cars or 1937-47 Ford half-ton pickups with original style rear axle. These brake assemblies can be used with Buick drums and 1948 Ford hubs, or we also offer new iron 12" x 2" brake drums (910-65400) with 5 on 5-1/2" bolt circle which are ...

This Lokar Floor Mount Emergency Hand Brake features a chrome plated steel e brake handle and is designed after the automotive industry standards. The ratchet cut gear plate and lock are heat treated for strength and safety. Special feature includes 4-point mounting capabilities for floor mount or side mounting for custom applications. Comes complete with clevis for installation with Lokar Emergency Brake Cables, Lokar # EC-80FU, Speedway Motors # 491-80FU suggested below. Cables are sold separately. Lokar Install Tip:  Every think about mounting the floor mount hand brake sideways in ...

Adapts 5 on 4-1/2" or 5 on 4-3/4" hubs to use 5 on 5" wheels Aluminum adapter with 5/8" coarse studs IMCA approved 1" thick

This valve can be used as a brake shut-off. When energized, the valve will block pressure from reaching downstream. The valve does not prevent fluid from returning to the master cylinder. This eliminates the possibility of trapping pressure when activating the valve. Requires a 12 Volt, 5 amp (recommended) fused power source through a toggle switch. Warning: Not a line lock assembly. Not for street use. Please read instruction sheet available at http://www.wilwood.com/pdf/ds572.pdf before attempting installation.

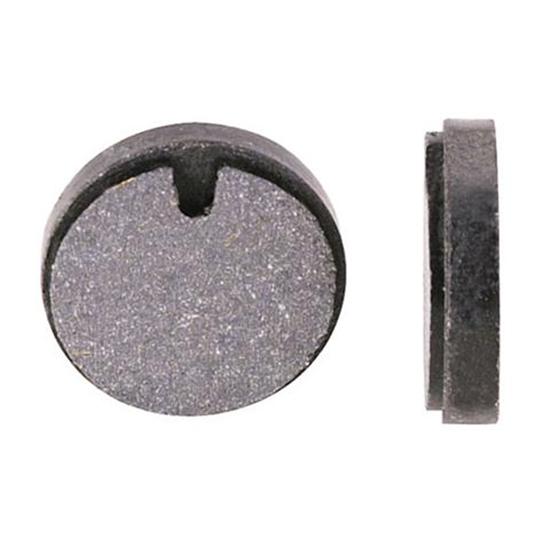

Brake "pucks" or caliper pads for your vintage Airheart 175H series calipers. Pucks sold each. Measures 1-5/8" O.D. Has an inside step approx 1-1/2" O.D. There are (2) countersunk screw holes in the pad for attachment.

Cast iron, single piston brake calipers include brake pads. Sold as a pair. Fits: Mopar B-Body 1962-1972 Mopar E-Body 1970-1974

NSRA Best New Product Lokar Under-the-Dash Foot Operated Emergency Brake features the same superior craftsmanship you have come to expect of all our products. This foot brake gives you ease of operation along with a clean, out of the way emergency brake. Adjustable 9" to 13" firewall to dash Length of the arm measures 10" from the pivot point to the bottom of the foot pad. Dash to firewall adjustable bracketry Various location mounting capability Heat treated gears Hidden gears and mechanisms for clean finish Rubber stop for quiet pedal ...
