Inboard Sprint Car Brake Kit w/ Drilled .810 Inch Iron Rotors

Centerline of Holes:
Material Type:
Cast Iron
Sold in Quantity:
Spline OD:
Spline Count:
Spline Length:
Hardware Included:
Rotor Diameter:
Caliper Pistons:
Rotor Thickness:
Caliper Finish:
Rotor Construction:
Rotor Hat Bolt Pattern:
8 x 7.00"
Garage Sale:
Rotor Location:
Rear Inboard
Rotor Shape:

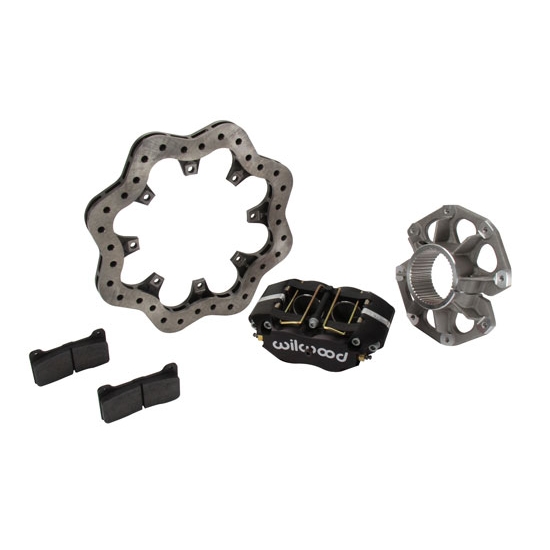

Includes rotor, caliper, inboard clamp, pads, and bolts.
Inboard Sprint Car Brake Kit w/ Drilled .810 Inch Iron Rotors

Click image to enlarge



Q & A

What's in the Box

Get the hot new Wilwood NDL caliper, 2 brake bads, axle clamp with bolts and Speedways solid mount, drilled 12.19" x .810" iron rotor.

Components available separately.

Item Details

w/drilled .810 iron rotors
