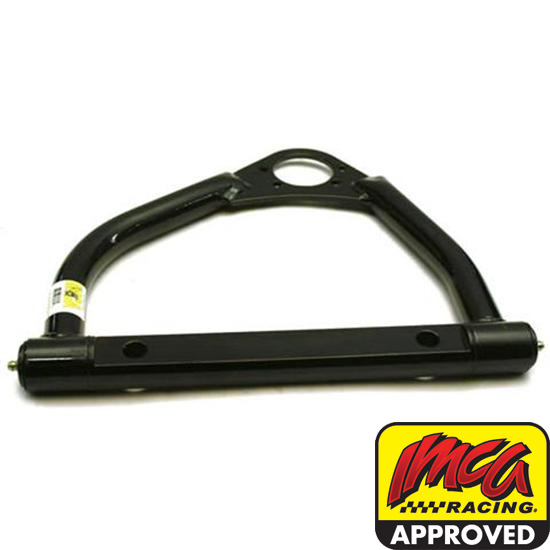

IMCA Spec Stock Car Upper Control Arm

Specs
Material Type:
Steel
Overall Width:
12.25
Sold in Quantity:
Each
Shaft Diameter:
1.25
Mounting Bolt Center to Center:
6.875
Garage Sale:
No
Notes
Left-hand side.
IMCA Spec Stock Car Upper Control Arm
IMCA Spec Stock Car Upper Control Arm
IMCA Spec Stock Car Upper Control Arm
IMCA Spec Stock Car Upper Control Arm
IMCA Spec Stock Car Upper Control Arm

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

IMCAs 2004 rules now allow the stock car class to use spec tubular upper control arms. The stock arms are getting hard to find and dont have the strength of the tubular design. Bolts to your stock mount and accepts stock ball joints.  This control arm is going to have a 1/4" thick plate where the ball joint bolts in.  Mid-size GM metric only.

  • Tube diameter is 1"
  • Wall thickness is 0.092

Steel cross shaft.  Available for right (passenger side) or left (drivers side).

Right arm length is 8". Left arm length is 8.5". Cross shaft spacing center to center is 6-7/8".



Item Details

Steel Cross Shaft

Specs


Customer Reviews

Rated 4.6 out of 5 by 5 reviewers.
RATING BREAKDOWN
5 reviews
5 Stars
3
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Patty Popp Racing
Verified Purchaser
Verified Reviewer
Orange County, New York

Perfect for the Job

June 15, 2015
These upper control arms are easy to apply and came with grease fittings!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

S10Boost
Verified Purchaser
Arizona

Great Product for Vehicles with Headers

August 13, 2014
I have to use a metal bearing upper control arm because my headers will melt polyurethane. I had ordered a pair of these originally from a guy on ebay for a ridiculous price. What he doesn't tell you is what length he will sell you. (They are the 8.0" version) For a 3" (2" Spindle, 1" spring) lowered street driven 2003 S10 2X4: If you use the 8.5" version (Left upper control arm) for both sides, you will have to use a lot of shims. Took a guy 2.5hrs to shim mine. If you use the 8.0" version (Right upper control arm) for both sides, you will be limited on how well they can put a true alignment on the truck due to the limited space. (No such thing as anti-shims :-) ) Love the fact that these are metal bearing. However, standard road driving will eventually tear these apart. My original set lasted about 2.5yrs (50k miles). Note: Remove the zerk fittings and put on 1/4" 90 degree zerk fittings. This will allow you to grease easily. I do recommend these. Enjoy!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

flemingracing
Lubbock texas

These are the strongest a arms i have fo

December 27, 2013
These a arms are stong and dont bind like the aluminum shaft a arms.. Highly reccomend these
Pros:
  • Great product
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

LimitedModDriver88
Verified Purchaser
League City, TX

Lightweight

January 17, 2013
This product is less bulky and saves on weight on the front end of your race car. It is quick and easy to install.
Pros:
  • saves on weight
Cons:
  • can bind withouth greasing or too much caster
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Dirty D
Verified Purchaser
Pell Lake, WI

Bolts right in

July 03, 2012
Bolts right in easy to install
Pros:
  • Easy To Install
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

6 questions : 8 answers

1 answers

Ball joint hole size How big is the hole for the ball joint? My ball joint measures 1.83.

Tom44
February 27, 2015

Ball joint hole size How big is the hole for the ball joint? My ball joint measures 1.83.

Answers

March 02, 2015
EricM
The ball joint hole in this control arm is 1 7/8" ID. Your ball joint with 1.83" diameter will slip right in. This is made for a standard replacement upper ball joint for a G body car which is our part number 91720045.
1 answers

Ball joint size Will these work with 20032-1 ball joints? They require a larger mounting hole.

Tom44
February 15, 2015

Ball joint size Will these work with 20032-1 ball joints? They require a larger mounting hole.

Answers

February 16, 2015
Tech
The part #200321 is not the bolt in balljoint for this arm as the IMCA spec upper Aarm for the metric car #20032. You could make the 200321 work but you would need to weld it in. Doing this would not be IMCA legal.
1 answers

will this fit a 64 chevelle im putting together a street stock for asphalt oval track racing

imJerry
Lancaster, CA, USA
September 02, 2014

will this fit a 64 chevelle im putting together a street stock for asphalt oval track racing

Answers

September 02, 2014
EricM
No these will not fit a 64 Chevelle. We offer tubular control arms 91036472 for your 64 Chevelle. If you only need the uppers we can sell the uppers only as 91036472.1
1 answers

Will these fit a 1964 Chevy Impala Non SS Will these fit a 1964 Chevy Impala Non SS

AlexG
August 21, 2014

Will these fit a 1964 Chevy Impala Non SS Will these fit a 1964 Chevy Impala Non SS

Answers

August 21, 2014
EricM
No this control arm will not fit your 1964 Impala. Sorry I do not offer the correct control arm for your application.
1 answers

Would these work on an 1986 GN as bolt-ons? For drag racing and road racing?

Turbopowered68
Long Island, New York, USA
July 05, 2013

Would these work on an 1986 GN as bolt-ons? For drag racing and road racing?

Answers

July 05, 2013
Jason
Yes these could be bolted on to your 86 Grand National. We do not recommend them for street use however. They have no bushings and will wear out fairly quickly at the pivot point. Once they wear out the control arm will need to be replaced. I would recommend two left sides (8.5” length) which are the stock length if you plan to use these.
3 answers

Can these be used on a stock S10 chassis with a sbc on the street? If so would you need both the same lenghth? If so which length?

wibas
Eau Claire, Wi
September 01, 2011

Can these be used on a stock S10 chassis with a sbc on the street? If so would you need both the same lenghth? If so which length?

Answers

January 18, 2013
LimitedModDriver88
The cross shaft mounting holes are spaced at 6-7/8" and so does the S10 chassis so they will fit. Left side has 8.5" ball joint to cross shaft spacing and right side has 8" ball joint to cross shaft spacing.
January 18, 2012
Charlie
These will fit any of the GM "metric" chasis vehicles, which includes the S-10 chasis. You need 2 that are 8.5" long. Don't forget to use the tall ball joints at the same time to correct the camber curve issues.
September 07, 2011
John
These control arms are designed for circle track racing and are not DOT approved for street use. If application is street use then you will need to verify length of your OEM control arms and order two of the same length. Dimension is from center of cross shaft to center of ball joint. Another option that is available in more length options is part number 91034395 which utilize a screw in ball joint. Center to center of mount bolts is 6 7/8” on either arm mentioned.
Page 1 of 1
