Ididit 1130180010 Plain Shorty 16 Inch Tilt Steering Column w/ Shifter

SAME DAY SHIPPING! Most orders ship within 24 hours.

Specs
Material Type:
Steel
Overall Length:
16.00
Sold in Quantity:
Each
Finish:
Natural
MFG. Part #:
1130180010
Output Shaft Type:
3/4" DD
Shifter Location:
Column
Column Tilt:
Yes
Key Location:
Dash
Collapsible:
No

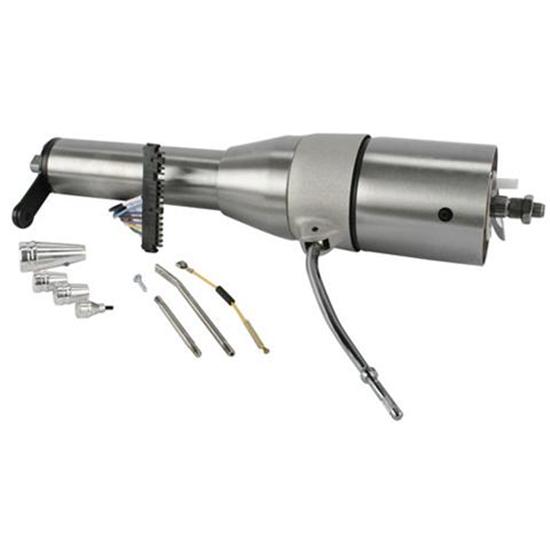

Ididit 1130180010 Plain Shorty 16 Inch Tilt Steering Column w/ Shifter
Ididit 1130180010 Plain Shorty 16 Inch Tilt Steering Column w/ Shifter

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

When space under the dash or around your feet is at a premium, these columns will save you a bunch of grief! These columns have the same dimensions and features as the other Ididit columns, but are about half the length.

The unpainted finish allows you to customize them in the color of your choice. The columns have the common 3/4" double "D" shaft and accept the '69-up GM steering wheels, adaptors and wiring harnesses and also use the "Swinger" drops on this website.

Use with the under dash mount listed, or design your own mount. Normal installation is two drops at the dash, attached to an adjustable under dash mount. U-joints, shaft and rod end bearings to be determined by the builder.

You may also be interested in:

Ididit 1120160010 Shorty Tilt Steering Column, 16 Inch, Plain
SKU-4461216
                        When space under the dash or around your feet is at a premium, these columns will save you a bunch of grief! These columns have the same dimensions and features as the other Ididit columns, but are about half the length.

The unpainted finish allows you to customize them in the color of your choice. The columns have the common 3/4" double "D" shaft and accept the '69-up GM steering wheels, adaptors and wiring harnesses and also use the "Swinger" drops on this website.

Use with the under dash mount listed, or design your own mount. Normal installation is two drops at the dash, attached to an adjustable under dash mount. U-joints, shaft and rod end bearings to be determined by the builder.

Ididit 1130330010 Tilt Wheel Steering Column w/ Shift, 33 Inch, Plain
SKU-4461333D
                        Original equipment steering columns are loaded with unsightly brackets, tabs and switches. These columns are much cleaner in appearance and eliminate the column-mounted key switch. These tilt with automatic transmission shift lever versions feature a 2-1/4" O.D. column tube.
  • Self-canceling turn signals
  • 4-way flashers
  • Horn circuit
  • Aluminum dress-up kit (billet turn signal knob and handle tilt knob and handle and 4-way flasher button)
  • Plain steel finish

Measures 33" long from steering wheel base to end of the 1" double D shaft. Each has a standard GM 3-7/8" wire harness, 5-position tilt, and accept stock 1969-up GM steering wheels or our custom wheels with an adapter (sold separately).

446-1333D Instructions (PDF)

GM Column Shift Lever, Polished
SKU-9116063
                        These column shifter arms fit 1973-94 GM/Chevy cars and trucks.  They  feature quality billet aluminum construction with a polished  finish.
  • Mounted Length: 8.5 Inches
  • Drop: 4.50 Inches
  • Billet aluminum
  • Polished finish
  • Sold Each
GM Column Shift Lever, Chrome
SKU-9116064


These column shifter arms fit 1973-94 GM/Chevy cars and trucks.  They feature quality billet aluminum construction with a beautiful chrome finish.

  • Mounted Length: 8.5 Inches
  • Drop: 4.50 Inches
  • Sold Each
  • Chrome Finish
  • Aluminum Material
Ididit 2301000010 Adjustable Under Dash Mount
SKU-4463100


Adjustable Under Dash Mount.

NOTE: This item will not work with Speedway column drops.

Ididit 2802000010 2-1/4 Inch Column Mount Cable Shift Kit
SKU-4468200
                        This is the slickest way to connect your column shifter to your tranny. If you are using the Ididit shorty column, this is a must. Includes column bracket to mount cable to Ididit columns, 6 foot cable and GM tranny brackets.

Ididit 2304370040 4.5 In. Steering Tilt Column Drop Mount 2.25 In Hole
SKU-4463434


Underdash Mounts are designed for several different applications. For these swinger style drops, the underdash nuts & bolts are included. Each swinger drop has two screws on either side that when unscrewed will detach the lower half of the mount to slide your column through. They have been buffed so well that there is no noticable gap between the two pieces! Each piece was manufactured in the United States by ididit. A hinge at the upper end permits an infinite choice of mounting angles. Polished aluminum construction.

  • For tilt column
  • 2-1/4 Inch diameter hole
  • 4-1/2 Inch drop
  • Two screws on either side will detach to slide your column through
  • Polished aluminum construction
  • Nuts & bolts are included

Note: Column drop lengths are measured from the centerline of the column to the column drop mount surface.

Note: Shift columns will require either a 2-1/4" hole or a 2" hole depending on the manufacturer.  Non-shift columns require a 2" hole.  Please double check application as necessary.
