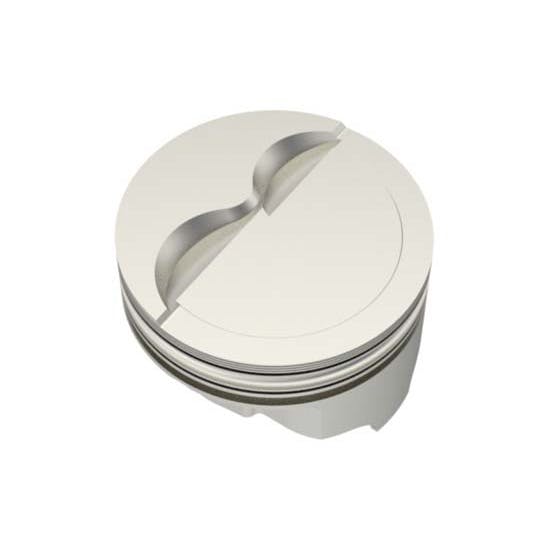

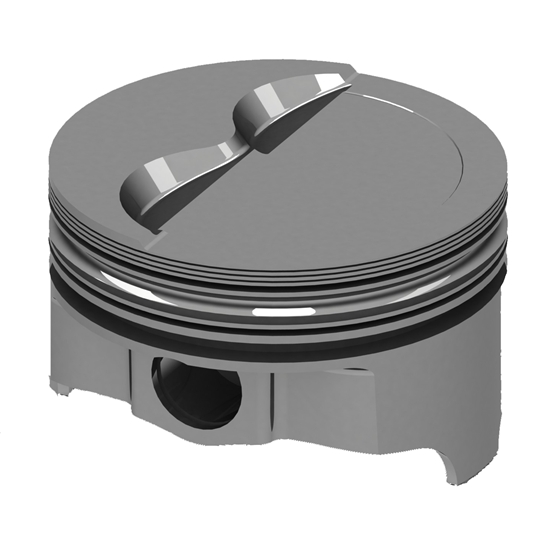

Icon Chevy 377 Forged Pistons, Dish, 5.7 Rod

Price:$449.99
Icon Forged Chevy 377 Pistons - Dished
Item #:
474761
Item Details:
C/R 58cc=10.4, 64cc=9.8, 76cc=8.7
Piston Weight: 541 g.
Rod Length: 5.7"
Icon Chevy 377 Forged Pistons, Dish, 5.7 Rod
Click image to enlarge Click image to enlarge
No video at this time.


We have been selling Keith Black pistons for years and now offer their premium new generation Icon forged pistons. Starting with 2618 alloy heat treated to high-strength T-6 specifications, these give you the best value for the money. Exclusive V-ribs add strength without adding weight and allow maximum cooling capacity.

For Chevy 377 c.i. (4.125" bore x 3.48" stroke). Use Style C piston rings (1/16", 1/16", 3/16").

  • High ductility 2618 alloy
  • Dual forced pin oiling on most applications
  • Lateral gas porting on higher compression ratios
  • Fully machined with deep valve pockets
  • Second land accumulator grooves
  • Top land mini groove technology
  • Diamond finished skirts
  • Triple wound spiral locks

Ring Style Chart (GIF)

474-761 Instructions (PDF)

  • Comp Height 5.7" Rod -  1.561
  • Pin Diameter -  0.9272
