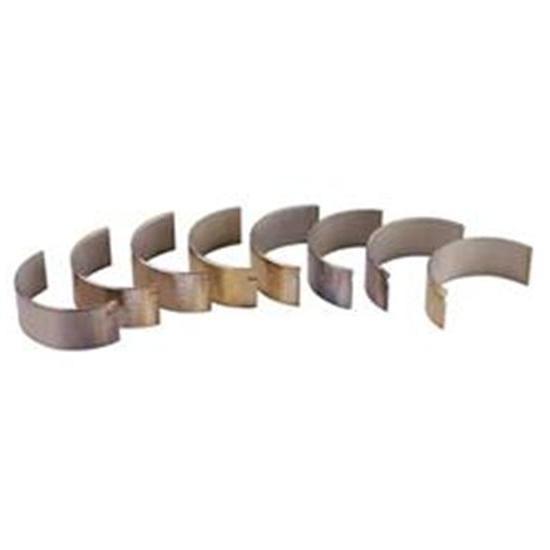

Clevite's H-Series was developed primarily for use in NASCAR type racing, but they are suitable for all types of competition engines. These sets are specifically for 1969-Up 302-305-327-350 S/B Chevy. Use H-series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range. H-Series bearings should be used if contact patterns obtained with P-series parts are too narrow. Contact pattern should ideally cover 2/3 to 3/4 of the bearing surface. If you aren't sure which type of performance bearing to start with, the ...
Clevite's H-Series was developed primarily for use in NASCAR type racing, but they are suitable for all types of competition engines. These sets are specifically for 1969-Up 302-305-327-350 S/B Chevy "Large Journal" engine (with 2.100" rod journals). Use H-series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range. H-Series bearings should be used if contact patterns obtained with P-series parts are too narrow. Contact pattern should ideally cover 2/3 to 3/4 of the bearing surface. If you aren't sure which type ...

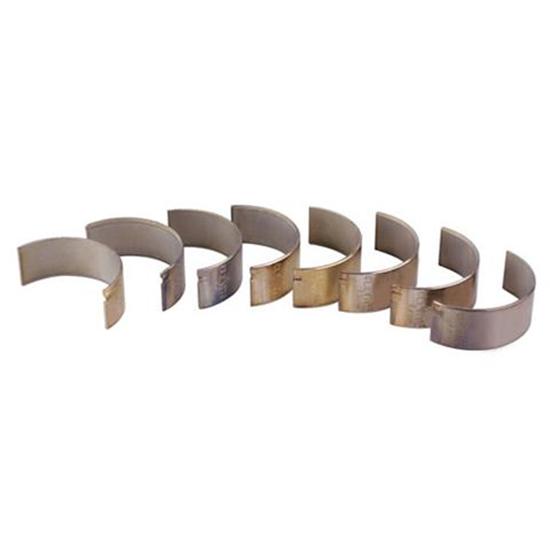

Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. These sets are specifically for 302-305-327-350 S/B Chevy "Large Journal" engines built from 1969-Up (with 2.100" rod journal). Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in. Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. Note: Will not work with 400 c.i. V-8. P-Series Features (Link) Clevite Application Chart .030 ...
Enhanced tri-metal copper lead construction with nickel barrier and SecureBond adhesion Unique SecureBond adhesion process for superior stability between the top and intermediate layers 15% - 30% greater load capacity than traditional bearings Mains and rods are narrowed for large radius crankshafts Greater rod bearing height improves bearing-to-bore contact/heat transfer and reduces spin potential at high RPM 0.0005" metallurgically enhanced and hardened performance overlay withstands greater loads and better resists surface fatigue Mains are 1/2 grooved for uncompromised lower shell ...
Bi-metal aluminum silicon alloy featuring fine micro-bore finish Mains and rods are narrowed for large radius crankshafts Mains are 3/4 grooved for improved oiling to the rod journals Greater rod bearing height improves bearing-to-bore contact/heat transfer and reduces spin potential at high RPM 0.015" thick top layer for superior macro particle embedability and conformability 40 Vickers hardness to resist overlay migration and extrusion 450°F heat threshold for superior protection against friction and overheating
Not to be confused with standard "passenger" car bearings Clevite's P-Series is their oldest line of premium high performance bearings.Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in.Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings.Typically the greatest level of eccentricityRods and mains have high crush for maximum retentionMost are fully grooved to maximize oil flow to rod bearingsReduced overlay thickness to prevent overlay fatigueUse where extremely ...
ACL tri-metal H-Series Duraglide camshaft bearings for S/B Chevy. Standard size only.Use H-series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range. H-Series bearings should be used if contact patterns obtained with P-series parts are too narrow. Contact pattern should ideally cover 2/3 to 3/4 of the bearing surface. If you aren't sure which type of performance bearing to start with the H-Series will be your best choice.
Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. These sets are specifically for 265-283-302-327 S/B Chevy engines built from 1955-1969. Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in. Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. P-Series Features (Link)
Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. These sets are specifically for 302-305-327-350 S/B Chevy "Large Journal" engines built from 1969-Up (with 2.100" rod journal). Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in. Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. Note: Will not work with 400 c.i. V-8. P-Series Features (Link) Clevite Application Chart
Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. These sets are specifically for 400 c.i. S/B Chevy V-8 engines (1970-1980). Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in. Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. P-Series Features (Link)
Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. These sets are specifically for 265-283-302-327 S/B Chevy "small journal" engines built from 1955-1969 (with 2.00" rod journal). Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in. Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. P-Series Features (Link)
Not to be confused with standard "passenger" car bearings, Clevite's P-Series is their oldest line of premium high performance bearings. Use P-Series rod bearings where extremely high RPM’s cause severe rod bore close-in. Use P-Series main bearings where higher eccentricity is desired to narrow bearing contact patterns and to provide increased oiling to rod bearings. P-Series Features (Link)
Clevite's H-Series was developed primarily for use in NASCAR type racing but they are suitable for all types of competition engines. Use H-series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range. H-Series bearings should be used if contact patterns obtained with P-series parts are too narrow. Contact pattern should ideally cover 2/3 to 3/4 of the bearing surface. If you aren't sure which type of performance bearing to start with the H-Series will be your best choice.H-Series Features (Link)
Bi-metal aluminum silicon alloy featuring fine micro-bore finish Mains and rods are narrowed for large radius crankshafts Greater rod bearing height improves bearing-to-bore contact/heat transfer and reduces spin potential at high RPM 0.015" thick top layer for superior macro particle embedability and conformability 40 Vickers hardness to resist overlay migration and extrusion 450°F heat threshold for superior protection against friction and overheating
High performance manual clutch release bearing for most GM 3-speed and 4-speed manual transmissions. Replaces throwout bearing 614-01B-BCA.Withstands high-spring pressure and high RPM operationHeat-treated and blanchard-ground to ensure truenessBall bearing race packed with heat-resistant moly-based greaseNylon liner and bearing retainer for cool quiet operationOverall Thickness (Length): 1.270"Face Width: 2.725"I.D.: 1.37"
These Tri-Metal 77 engine bearings combine the strength of a copper-lead alloy layer with steel backing and an electroplated babbitt metal. The steel backing provides strength and durability; the babbitt overlay provides the critical surface characteristics of slipperiness and conformability. This ideal design has properties not even found in many original equipment bearings. Clevite offers main bearings, rod bearings and cam bearings in this series. Medium level of eccentricity and high crush Enlarged chamfers for greater crankshaft fillet clearance Made without flash plating for better ...
ACL H-Series Duraglide bearings feature a tri-metal design. Fits S/B Chevy 350/400 with Large Journal crankshafts (2.100"). Use H-series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range. H-Series bearings should be used if contact patterns obtained with P-series parts are too narrow. Contact pattern should ideally cover 2/3 to 3/4 of the bearing surface. If you aren't sure which type of performance bearing to start with, the H-Series will be your best choice.
Clevite's H-Series was developed primarily for use in NASCAR type racing, but they are suitable for all types of competition engines. These sets are for 1970-1980 S/B Chevy 400 c.i. V-8 engines. Use H-series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range. H-Series bearings should be used if contact patterns obtained with P-series parts are too narrow. Contact pattern should ideally cover 2/3 to 3/4 of the bearing surface. If you aren't sure which type of performance bearing to start ...
