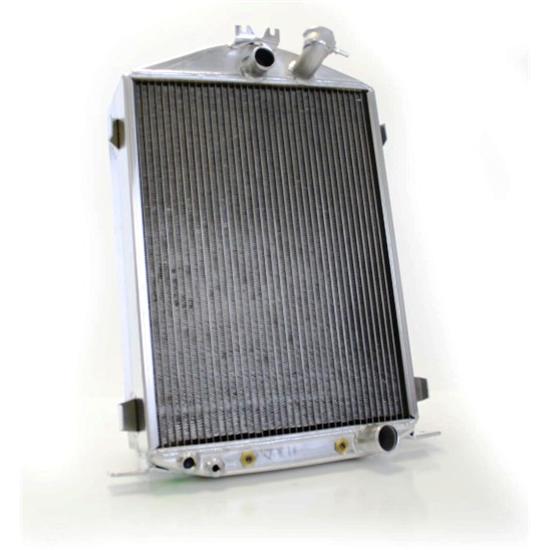

Griffin Radiators 4-232BX-AAA 1932 Ford Aluminum Radiator, Chevy V8

Specs
Material Type:
Aluminum
Tube Style:
Downflow
Sold in Quantity:
Each
Row Quantity:
Dual
Inlet Location:
Centered
Outlet Location:
Lower Right
Finish:
Natural
Radiator Style:
Single Pass
MFG. Part #:
4-232BX-AAA
Transmission Cooler:
Yes
Overall Height:
26.75
Overall Width:
17.25
Overall Thickness:
4.00
Inlet Size:
1.50
Core Height:
21.50
Core Width:
16.75
Core Thickness:
2.25
Tube Size:
1.00
Filler Neck Height:
2.25
Notes
1/8" NPT fittings for transmission cooler. 2.00" mounting tabs one both sides. 1/2" NPT sensor fitting. 1/4" NPT drain fitting.
Griffin Radiators 4-232BX-AAA 1932 Ford Aluminum Radiator, Chevy V8

Click image to enlarge

Please NOTE the following about this product:

  • This product is discontinued.

Details

Reviews

Q & A

What's in the Box

Griffin Aluminum radiators give superior cooling over a brass/copper radiator. Features 2 rows of 1" tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator.

  • Built-in HD automatic transmission oil cooler
  • Hood support brackets are included
  • Brackets on side for gille shell
  • Brackets on top for support rods
  • No "dummy" filler neck
Griffin Chevy Engine Radiator Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance
