Tuff Stuff GM Saginaw Power Steering Pump with Reservoir

SAME DAY SHIPPING! Order within the next 11 hours 45 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Height:
9.00
Overall Width:
5.50
Sold in Quantity:
Each
Finish:
-
Shaft Diameter:
0.63
Stud Length:
1.00
Thread Pitch:
5/16"-18
Outlet Fitting:
5/8"-18
MFG. Part #:
-
Garage Sale:
No
Notes
Pump equivalent to that on a '70-'74 Nova, Camaro, Firebird, Malibu, Monte Carlo, and other midsize GM. Shaft is threaded and keyed to secure pulley.
Tuff Stuff GM Saginaw Power Steering Pump with ReservoirTuff Stuff GM Saginaw Power Steering Pump with ReservoirTuff Stuff GM Saginaw Power Steering Pump with ReservoirTuff Stuff GM Saginaw Power Steering Pump with Reservoir

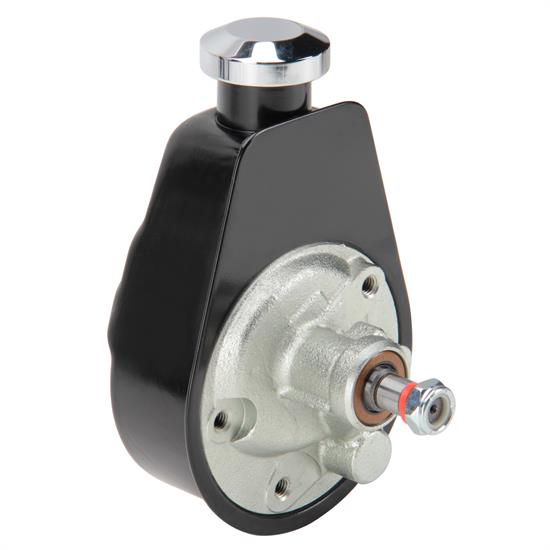

Tuff Stuff GM Saginaw Power Steering Pump with Reservoir

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

These Saginaw power steering pumps from Tuff Stuff come with a new reservoir, billet cap, chrome hardware and new dipstick. Desirable early style 1965-79 pump with threaded and keyed shaft for easy pulley installation. Available in powder coated black or chrome finish. Hoses are available from most local parts stores.

Pump has a 3/8" hose barb for return line and a female 5/8"-18 inverted flare fitting for the high pressure outlet. Pulley not included.

  • Saginaw power steering pump with a new reservoir, billet cap, chrome hardware and new dipstick
  • Powder coated black or chrome
  • Keyed shaft for easy pulley intallation
  • Pulleys available in plain, polished, and chrome
  • 6" diameter pulleys not included

Works well with small block Chevy engine brackets 916-67920 or 913-32902.

Application

Equivalent to to original pump found on:

  • 1970-74 Camaro/Firebird
  • 1970-74 Nova
  • 1970-74 Chevelle/Malibu
  • 1970-74 Monte Carlo
  • Also can be used with 1982-88 T-Bird Rack & Pinion kits 91034340-POW, 910-32535, and 617-4835

Item Details

Early style 1965-79 pump
