We can machine YOUR 1949-54 Chevy passenger car spindles to receive our disc brake conversions. Note: Measure carefully to insure you have the correct spindle. Many older GM spindles look similar. Then ship them to us with your brake kit order.Spindle Identification Guide (GIF)
We can machine YOUR 1949-54 Chevy passenger car spindles to receive our disc brake conversions. Note: Measure carefully to insure you have the correct spindle. Many older GM spindles look similar. Then ship them to us with your brake kit order. Spindle Identification Guide (GIF)
Speedway has produced these newforged steelreproduction car spindles. They have many features not available with GMs' original design! These spindlesare the choice ofprofessional builders because of their clean look strength and ease of installation.Made to direct mount Mustang II hubs and rotors plus many other later GM'sKingpin geometry changed to work with current radial tire constructionSpindles also available in kit form with kingpins. Save when you purchase a complete kit! Spindle Identification Guide (GIF)

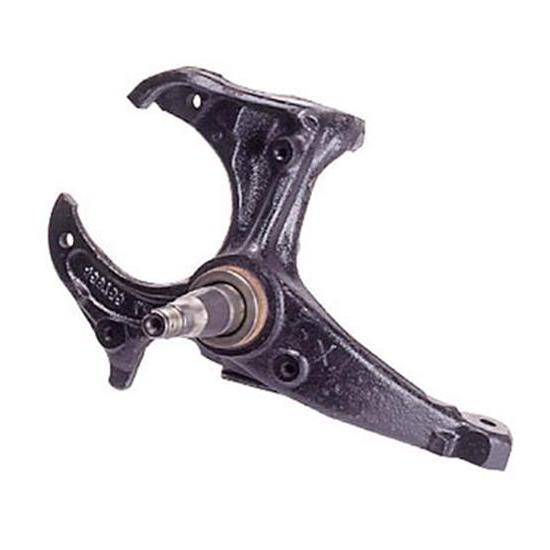

Thesereclaimed OEM spindles are from 1979-up GM Metric midsize cars. The spindles have been thoroughly cleaned inspected and reamed for use with big ball joints (Chevy truck-style ball joints).Upper Ball Joint use 917-20031 or 917-20032 (Moog# K6024 or K6136)Lower Ball Joint use 917-20038 917-20039 or 917-20038-1 (Moog# K6141 K6145 K6117)Uses '78-'88 Metric style calipers and the larger M12649 outer bearing. Spindle will accept 5x5 rotor 910-31061 if used with bearing/seal kit 910-31048. Caliper mounting is 5.46" or approximately 5-7/16".
These reclaimed OEM spindles are from 1979-up GM Metric midsize cars. The spindles have been thoroughly cleaned, inspected, and reamed for use with big ball joints (Chevy truck-style ball joints). Upper Ball Joint use 917-20031 or 917-20032 (Moog# K6024 or K6136) Lower Ball Joint use 917-20038, 917-20039, or 917-20038-1 (Moog# K6141, K6145, K6117) Uses '78-'88 Metric style calipers and the larger M12649 outer bearing. Spindle will accept 5x5 rotor 910-31061 if used with bearing/seal kit 910-31048. Caliper mounting is 5.46" or approximately 5-7/16".
Speedway has produced these new forged steel reproduction car spindles. They have many features not available with GMs' original design! These spindles are the choice of professional builders because of their clean look, strength and ease of installation. Made to direct mount Mustang II hubs and rotors plus many other later GM's Kingpin geometry changed to work with current radial tire construction Deluxe kingpins feature modern needle bearing inserts that replace the standard brass bushings Deluxe kingpins are ideal for use on heavier street rods that require superior strength, better ...
Dropped spindles will not only enhance the rake of your Tri-Five Chevy they will also improve handling due to the lower roll center. These spindles are designed like the original only they have 2” of drop built in. Plus dropped spindles maintainfactory steering & suspension geometry sooriginal steering arms can be used. The optionaldisc brake kitfeatures 10 ½” GM vented cast ironrotors and 1969-77 GM single piston calipers. Brake kit sold separately. 2" dropCompletes both sidesMaintains factory steering & suspension geometryIncludes midsize caliper bracket & boltsNote: These spindles ...
Hub-to-hub kit includes standard upper and offset strutless lower control arms new standard spindles rubber brake lines Carrera coilovers new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:Standard Tubular Upper and Lower Strutless Control ArmsNew Stock SpindlesCoilover SpringsRack and Pinion with bushings and tie rods11" brake kit with GM calipers Add proper crossmember to complete kit.You must ...
You get brand new stamped steel upper and lower control arms with polyurethane bushings new steel spindles Carrera coil-over shock & spring new manual rack & pinion with bushings or remanufactured power rack & pinion with bushings and an 11" brake kit featuring GM Metric-style calipers and rubber hoses with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt patterns. Works with most Speedway and Heidts crossmembers (be sure to check control arm correspondence when choosing crossmember for your vehicle)These kits are compatible with your application based on ...
You get brand new stamped steel upper and lower control arms with polyurethane bushings new spindles new black stock-type springs new shocks new manual rack & pinion with bushings or remanufactured power rack & pinion with bushings and an 11" brake kit featuring GM Metric-style calipers and rubber hoses with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt patterns. Works with most Speedway and Heidts crossmembers (be sure to check control arm correspondence when choosing crossmember for your vehicle)These kits are compatible with your application based on ...
Includes standard upper and offset strutless lower control arms new standard spindles rubber brake lines new black stock type springs and shocks new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:Standard Tubular Upper and Lower Strutless Control ArmsNew Stock Spindles Springs and ShocksRack and Pinion with bushings and tie rods11" brake kit with GM calipers Add proper ...
With our complete Mustang II Independent Front Suspension kit you get brand new stamped steel upper and lower control arms with polyurethane bushings new steel spindles Rubber Brake Lines air springs with shocks new manual rack & pinion with bushings or remanufactured power rack & pinion with bushings and an 11" brake kit featuring GM Metric-style calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt patterns. Works with most Speedway and Heidts crossmembers (be sure to check control arm correspondence when choosing crossmember for your vehicle)These ...
Complete hub-to-hub kit includes 5/8" narrower upper control arms 5/8" narrower offset strutless lowers new standard spindles Carrera coilovers new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with rubber hoses with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Hub-to-hub kit includes 5/8" narrower upper and offset strutless lower control arms new standard spindles rubber brake lines chrome Carrera coilovers new manual or rebuilt power rack & pinion with bushings and new tie ...
Includes 5/8" narrower upper and offset strutless lower control arms new standard spindles rubber brake lines new black stock type springs and shocks new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:5/8" narrower Tubular Upper and Lower Strutless Control ArmsNew Stock Spindles Springs and ShocksRack and Pinion with bushings and tie rods11" brake kit with GM calipers ...
Hub-to-hub kit includes 5/8" narrower upper and offset strutless lower control arms new standard spindles rubber brake lines air ride new manual or rebuilt power rack & pinion with bushings and new tie rods. The 10-3/4" Wilwood brake kit features GM Metric calipers with rubber hoses with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:5/8" narrower Tubular Upper and Lower Strutless Control ArmsNew Standard SpindlesAir Ride Suspension shocksRack and Pinion with bushings and tie rods10-3/4" Wilwood brake kit with ...
Hub-to-hub kit includes standard upper and offset strutless lower control arms new standard spindles rubber brake lines 2" dropped spindles Carrera coilovers new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:Standard Tubular Upper and Lower Strutless Control Arms2" Dropped SpindlesCarrera CoiloversRack and Pinion with bushings and tie rods11" brake kit with GM calipers Add proper crossmember to ...
Includes standard upper and offset strutless lower control arms 2" dropped spindles rubber brake lines new black stock type springs and shocks new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:Standard Tubular Upper and Lower Strutless Control Arms2" Dropped SpindlesStock Springs and ShocksRack and Pinion with bushings and tie rods11" brake kit with GM calipers Add proper ...
With our complete Mustang II Independent Front Suspension kit you get brand new stamped steel upper and lower control arms with polyurethane bushings 2" dropped steel spindles Rubber Brake Lines air springs with shocks new manual rack & pinion with bushings or remanufactured power rack & pinion with bushings and an 11" brake kit featuring GM Metric-style calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt patterns. Works with most Speedway and Heidts crossmembers (be sure to check control arm correspondence when choosing crossmember for your ...
Includes 5/8" narrower upper and offset strutless lower control arms 2" dropped spindles rubber brake lines new black stock type springs and shocks new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:5/8" Narrower Tubular Upper and Lower Strutless Control Arms2" Dropped SpindlesStock Springs and ShocksRack and Pinion with bushings and tie rods11" brake kit with GM calipers ...
Hub-to-hub kit includes 5/8" narrower upper and offset strutless lower control arms 2" dropped spindles rubber brake lines air ride new manual or rebuilt power rack & pinion with bushings and new tie rods. The 10-3/4" Wilwood brake kit features GM Metric calipers with rubber hoses with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:5/8" narrower Tubular Upper and Lower Strutless Control Arms2" Dropped SpindlesAir Ride Suspension shocksRack and Pinion with bushings and tie rods10-3/4" Wilwood brake kit with ...
Hub-to-hub kit includes 5/8" narrower upper and offset strutless lower control arms 2" dropped spindles rubber brake lines Carrera coilovers new manual or rebuilt power rack & pinion with bushings and new tie rods. The 11" brake kit features GM Metric calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt pattern.Works with all Speedway and Heidts crossmembersKit Includes:5/8" narrower Tubular Upper and Lower Strutless Control Arms2" Dropped SpindlesCarrera CoiloversRack and Pinion with bushings and tie rods11" brake kit with GM calipers Add proper crossmember to complete ...
With our complete Mustang II Independent Front Suspension kit you get brand new stamped steel upper and lower control arms with polyurethane bushings steel 2" dropped spindles Rubber Brake Lines Carrera coil-over shock & spring new manual rack & pinion with bushings or remanufactured power rack & pinion with bushings and an 11" brake kit featuring GM Metric-style calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt patterns. Works with most Speedway and Heidts crossmembers (be sure to check control arm correspondence when choosing crossmember for ...
With our complete Mustang II Independent Front Suspension kit you get brand new stamped steel upper and lower control arms with polyurethane bushings steel 2" dropped spindles Rubber Brake Lines new black stock type springs & shocks new manual rack & pinion with bushings or remanufactured power rack & pinion with bushings and an 11" brake kit featuring GM Metric-style calipers with your choice of 5 x 4-1/2" or 5 x 4-3/4" bolt patterns. Works with most Speedway and Heidts crossmembers (be sure to check control arm correspondence when choosing ...
