Gasser Straight Axle, Ford Spindle and Brake Kits, 54-1/4 Hub-to-Hub

Gasser Straight Axle, Ford Spindle and Brake Kits, 54-1/4 Hub-to-Hub
VIDEO
Gasser Straight Axle, Ford Spindle and Brake Kits, 54-1/4 Hub-to-Hub

Click image to enlarge

Watch the video below to learn more about Speedway Motors street rod spindles.

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Details

Reviews (0)

Q & A (1)

What's in the Box

Info

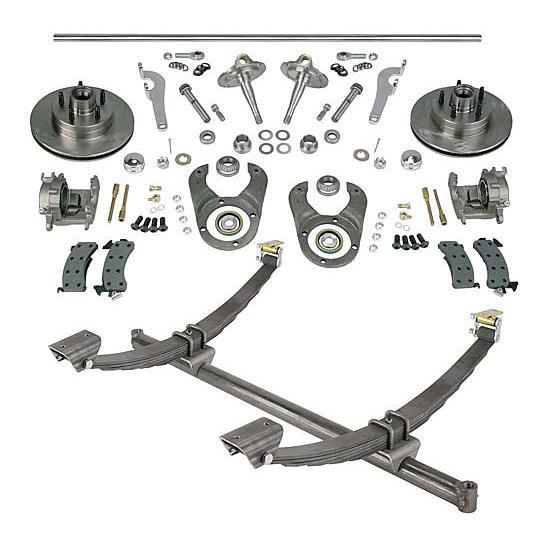

These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

Gasser Info (PDF)

Note: Wilwood brakes increase hub-to-hub width by 1/2".

910-3546 Instructions (PDF)

Item Details

37-41 Ford Spindles, Specify bolt pattern,
46" Wide axle - 54 1/4" hub to hub.

Notes

  1. If using steel wheels with Wilwood kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheels from galling the aluminum hub.
  2. Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

Gasser Kit w/ "Ford" Spindles

  • Leaf springs, 31-1/4" long x 1-3/4" wide
    • 6 leaf, 1/4" thick
    • 400 lbs/inch spring rate
  • Ford-style spindles (drop forged 4140 steel)
    • Modeled after the 1937-41 round-back design
    • Uses 1937-41 Ford king pins (included)

"Ford" Spindle Standard Brake Kit

  • 5 x 4-1/2" Ford/Mopar bolt pattern
    • 11" vented iron rotor, 1" thick
    • Hub flange (hat) diameter -
    • 1/2" Fine wheel studs
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16"-20 banjo bolt to AN-3 line adapter kit
  • 5 x 4-3/4" GM bolt pattern
    • 11" vented iron rotor, 1" thick
    • Hub flange (hat) diameter - 6-1/4"
    • 7/16" Fine wheel studs
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16"-20 banjo bolt to AN-3 line adapter kit

"Ford" Spindle Wilwood Brake Kit (must use 15"+ wheels)

  • Forged Dynalite 4-piston Calipers
  • 11.00" x .810" Ultralite HP 30 Vane iron rotors
  • Wilwood BP-10 SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
  • 1/2"-20 wheel studs

Customer Reviews

This product has no reviews.

Product Q&A

1 questions : 1 answers

1 answers

what is the weight capacity of the king pin system? would it be able to withstand the weight of a big block engine for example...

CJ
Canada
October 12, 2011

what is the weight capacity of the king pin system? would it be able to withstand the weight of a big block engine for example...

Answers

October 14, 2011
John
Part # 9103546 King pins are strong enough for almost any load. Many customers have full sized cars such as Tri-5 Chevies with blown big blocks. The spindles are forged for utmost strength and again handle almost any load. If planning on 45 degree wheel stands and dropping it on the front end the weakest link would be the axle tube itself which may bend under those extreme situations.
