Gasser Straight Axle, Ford Spindle and Brake Kits, 52-1/4 Hub-to-Hub

SAME DAY SHIPPING! Order within the next 4 hours 45 minutes and receive same day shipping

Free Shipping Free Shipping
Gasser Straight Axle, Ford Spindle and Brake Kits, 52-1/4 Hub-to-Hub
Product Video
Gasser Straight Axle, Ford Spindle and Brake Kits, 52-1/4 Hub-to-Hub

Click image to enlarge

Watch the video below to learn more about Speedway Motors street rod spindles.

Watch the video below to learn how to correctly measure your wheel bolt pattern.

Details

Reviews

Q & A

What's in the Box

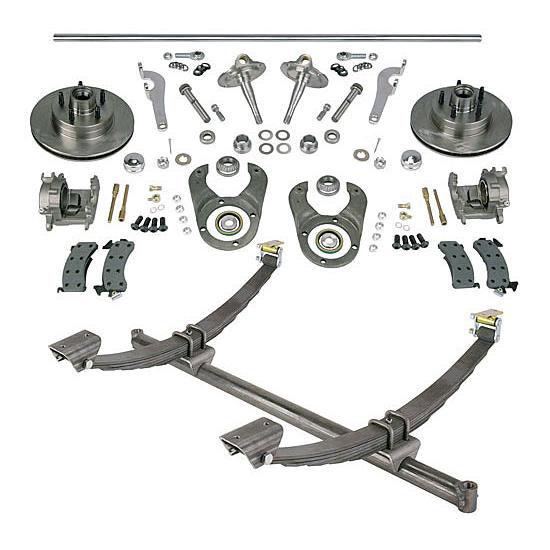

These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

Gasser Info (PDF)

Note: Wilwood brakes increase hub-to-hub width by 1/2".

910-3544 Instructions (PDF)

Item Details

37-41 Ford Spindles, Specify bolt pattern,
44" Wide axle - 52 1/4" hub to hub.

Notes

  1. If using steel wheels with Wilwood kit, you will also need to purchase (2) steel shims part 835-3007500. These shims will prevent steel wheels from galling the aluminum hub.
  2. Rubber brake hoses generally cannot be adapted to Wilwood calipers. The caliper inlet fitting is a 1/8-27 NPT. The preferred method is to use steel adapter fittings at the caliper, either straight, 45 or 90 degree and enough steel braided line to allow for full suspension travel and turning radius, lock to lock.

Specs

Gasser Kit w/ "Ford" Spindles

  • Leaf springs, 31-1/4" long x 1-3/4" wide
    • 6 leaf, 1/4" thick
    • 400 lbs/inch spring rate
  • Ford-style spindles (drop forged 4140 steel)
    • Modeled after the 1937-41 round-back design
    • Uses 1937-41 Ford king pins (included)

"Ford" Spindle Standard Brake Kit

  • 5 x 4-1/2" Ford/Mopar bolt pattern
    • 11" vented iron rotor, 1" thick
    • Hub flange (hat) diameter -
    • 1/2" Fine wheel studs
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16"-20 banjo bolt to AN-3 line adapter kit
  • 5 x 4-3/4" GM bolt pattern
    • 11" vented iron rotor, 1" thick
    • Hub flange (hat) diameter - 6-1/4"
    • 7/16" Fine wheel studs
    • GM Metric '78-'88 calipers, 2-1/2" piston
    • 7/16"-20 banjo bolt to AN-3 line adapter kit

"Ford" Spindle Wilwood Brake Kit (must use 15"+ wheels)

  • Forged Dynalite 4-piston Calipers
  • 11.00" x .810" Ultralite HP 30 Vane iron rotors
  • Wilwood BP-10 SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
  • 1/2"-20 wheel studs

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Hi-Tone
SoCal

A Definite Must!

November 06, 2010
I liked this kit so much that I ordered two of them!
Pros:
  • Has everything you need
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

20 questions : 21 answers

1 answers

witch kit would you use in 1964 fairlane

Ragman1
Brooklyn, MI 49230, USA
March 22, 2015

witch kit would you use in 1964 fairlane

Answers

March 23, 2015
EricM
The width of axle that you require will depend on the wheel and tire combo you plan on running, as well as personal preference as to where you want the tires to sit. This kit offers a 56 ¼” hub face to hub face. To determine what width of axle you need put your car on jack stands but keep it as low as possible. Then set your tires and wheels where you want them to sit inside the fender. Next measure the distance between the wheels. This measurement will be taken on the back face of the wheel where it bolts up to the hub. If you like the placement of your tires as it is now you can simply remove the front wheels and use a couple of straight edges to measure from hub to hub on your current suspension.
1 answers

62 Falcon Gasser I'm building a 62 Falcon for drag racing. Could you tell me what the unsprung height is from spring pads to spindle center? I'm thinking of using a 4 or 6 " drop to get the nose down. If I estimate the weight to be 1k to 2k lb, @400lb/in would that be about 2.5 to 5" of sprung drop? I know this sounds crazy but can I get drum brakes. That way I don't have to worry about caliber clearance.

5reset
Clarkston, WA, USA
January 04, 2015

62 Falcon Gasser I'm building a 62 Falcon for drag racing. Could you tell me what the unsprung height is from spring pads to spindle center? I'm thinking of using a 4 or 6 " drop to get the nose down. If I estimate the weight to be 1k to 2k lb, @400lb/in would that be about 2.5 to 5" of sprung drop? I know this sounds crazy but can I get drum brakes. That way I don't have to worry about caliber clearance.

Answers

January 06, 2015
EricM
From the top of the spring pad to the center of the axle is 2 ½”. On a dropped axle the drop is figured from the bottom of the axle to the center of the spindles or king pin boss. Figuring in the extra inch to the bottom of the axle and then using a 4” drop instead of straight the spindle center would be ½” above the spring pad. Each spring carries the same weight rating of 400-425 so for the pair 800-850 so your spring compression would likely be only 1 ½ to 2 ¼”.
1 answers

Hub-to-Hub Measurement when referring to hub-to-hub, is this wheel mounting surface to wheel mounting surface? better safe than sorry! Thanks, Rick

rlhoward59
Merrillville, IN, USA
December 01, 2014

Hub-to-Hub Measurement when referring to hub-to-hub, is this wheel mounting surface to wheel mounting surface? better safe than sorry! Thanks, Rick

Answers

December 02, 2014
EricM
Yes hub to hub and wheel mount surface to wheel mount surface are the same measurement.
1 answers

Is there any kits that will fit under a 93 f150? I have a 93 f150 that I crashed and I want to get ride of the front and a put a straight axel in. will any of these kits work on my truck

Mikemclamb
Dayton ohio
June 15, 2014

Is there any kits that will fit under a 93 f150? I have a 93 f150 that I crashed and I want to get ride of the front and a put a straight axel in. will any of these kits work on my truck

Answers

June 16, 2014
EricM
You could probably fit one of these gasser axle kits under your truck but there will be significant fabrication required. Check your hub to hub width of your current front end and then order kit with the closest width to your original.
1 answers

which one will work in a 66 ford falcon

Falconman
Ocala, Fl.
November 29, 2013

which one will work in a 66 ford falcon

Answers

December 02, 2013
EricM
The width of axle that you require will depend on the wheel and tire combo you plan on running, as well as personal preference as to where you want the tires to sit. This kit offers a 56 ¼” hub face to hub face. To determine what width of axle you need put your car on jack stands but keep it as low as possible. Then set your tires and wheels where you want them to sit inside the fender. Next measure the distance between the wheels. This measurement will be taken on the back face of the wheel where it bolts up to the hub. If you like the placement of your tires as it is now you can simply remove the front wheels and use a couple of straight edges to measure from hub to hub on your current suspension.
1 answers

Which solid axle kit for 1950 Ford F1? I have a 1950 Ford F1 that I want to install a solid axle kit on. Do any of these kits work for that vehicle and which one should I purchase?

DanAndMachine
October 09, 2013

Which solid axle kit for 1950 Ford F1? I have a 1950 Ford F1 that I want to install a solid axle kit on. Do any of these kits work for that vehicle and which one should I purchase?

Answers

October 11, 2013
Jason
Speedway’s gasser axle kits such as 9103544 can be used on almost every make and model. They come in different widths and to determine the width you need the wheel and tire combination you plan on using in order to keep the location in the fender well in your desired location. The hub to hub dimension we list is hub face where the wheel will bolt on to the opposite side hub face. You could set the tires where you want them to be in relation to the edge of the fender and then measure side to side at the mount surface of the wheels.
1 answers

hub to hub width ?

black62
ar
August 13, 2013

hub to hub width ?

Answers

August 13, 2013
Jason
This gasser straight axle kit comes with a 44" axle that nets 52 1/4" hub to hub width.
1 answers

WHAT ARE THE THREAD SIZE FOR THE STUDS. I ASK IN ORDER TO OBTAIN CORRECT LUG NUT SIZE.

rick
costa rica-------central america
December 11, 2011

WHAT ARE THE THREAD SIZE FOR THE STUDS. I ASK IN ORDER TO OBTAIN CORRECT LUG NUT SIZE.

Answers

December 12, 2011
Jason
On the 5 on 4-1/2 kit these use a 1/2-20 stud. The 5 on 4-3/4 uses a 7/16" stud.
1 answers

I was thinking about making my 1972 ford F100 pickup into a gasser what kit would you recommend. my frame rail are 34" apart it will have 302 in it maybe a 347 stroker built from a 302 would this to much for this type of front end to handle.

Robert
Beaufort S.C.
October 31, 2011

I was thinking about making my 1972 ford F100 pickup into a gasser what kit would you recommend. my frame rail are 34" apart it will have 302 in it maybe a 347 stroker built from a 302 would this to much for this type of front end to handle.

Answers

November 01, 2011
John
Part # 9103544-50 These gasser axle kits will work on most any application imaginable. The width of the axle determines the track width which is the hub face to hub face where the wheels will bolt on. An example is a 48” axle will net approximately a 56.5” track width. Use this to reference with the wheel and tire package you plan to run to determine the width axle to order. The springs in the kit are more than sufficient to support the pickup you referenced.
1 answers

il be putting this kit under a 63 ford galaxie 500 and was wondering how easy this kit will be to adapt to the front end of this particular car and also what the overall height mite be on the front of the car to the center of the fender opening using a 15

September 07, 2011

il be putting this kit under a 63 ford galaxie 500 and was wondering how easy this kit will be to adapt to the front end of this particular car and also what the overall height mite be on the front of the car to the center of the fender opening using a 15

Answers

September 09, 2011
John
Ride height figures are drastically different depending on drive train, frame configuration, tire and wheel size, etc. From the centerline of the spindle to the frame at free height and no load is approximately 10 ½” to 11”. Centerline of the spindle would be the same as center of the wheel and from there you can calculate the above dimension with your wheel and tire combination. This is figuring that the frame rail mounts will both be parallel with the ground and if the frame kicks up ahead of the firewall you would need to allow for the kick up.
Page 1 of 2

You may also be interested in:

Wilwood 140-11013-P 1937-1948 Ford Heavy Duty Polished Disc Brakes
(Part #8351402260P)


Wilwood Forged Dynalite Pro-Series Front Hub Kits offer a complete disc brake upgrade solution for your 1937-48 Ford spindles. Based on the venerable forged billet Dynalite caliper, these versatile kits suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.

Most kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Wilwood Heavy Duty Kits Feature:

  • Forged 4-piston Dynalite Calipers
  • 11.00" diameter Ultralite HP 30 Vane iron rotors - plain finish
  • Wilwood BP-10 SmartPads - low noise, low dust
  • Lightweight anodized aluminum Pro Street hubs
835-1402260P Instructions (PDF)

*NOTE*: See Notes tab for important install info.

Item Details

Polished calipers, plain rotors
Gasser Straight Axle, Ford Spindle and Brake Kits, 58-1/4 Hub-to-Hub
(Part #9103550)


These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

Gasser Info (PDF)

Note: Wilwood brakes increase hub-to-hub width by 1/2".

910-3550 Instructions (PDF)

Item Details

37-41 Ford Spindles, Specify bolt pattern,
50" Wide axle - 58 1/4" hub to hub.
Gasser Straight Axle, Ford Spindle and Brake Kits, 56-1/4 Hub-to-Hub
(Part #9103548)


These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

Gasser Info (PDF)

Note: Wilwood brakes increase hub-to-hub width by 1/2".

910-3548 Instructions (PDF)

Item Details

37-41 Ford Spindles, Specify bolt pattern,
48" Wide axle - 56 1/4" hub to hub.
Gasser Straight Axle, Ford Spindle and Brake Kits, 54-1/4 Hub-to-Hub
(Part #9103546)


These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

Gasser Info (PDF)

Note: Wilwood brakes increase hub-to-hub width by 1/2".

910-3546 Instructions (PDF)

Item Details

37-41 Ford Spindles, Specify bolt pattern,
46" Wide axle - 54 1/4" hub to hub.
Gasser Straight Axle, Chevy Spindle and Brake Kits, 52-1/2 Hub-to-Hub
(Part #9103944)


These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required.

Gasser Info (PDF)

Note: Wilwood brakes increase hub-to-hub width by 1/2".

910-3944 Instructions (PDF)

Item Details

49-54 Chevy Spindles, Specify bolt pattern,
44" Wide axle - 52 1/2" hub to hub.
Wilwood 140-11013-D FDL 11 In Front Brake Kit, 37-48 Ford Car, Drilled
(Part #83514011013D)
                        FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Installation Instructions (PDF)

Wheel Clearance Diagram

Wilwood 140-11013-DP FDL Front Brake Kit, 1937-48 Ford Passenger Car
(Part #83514011013DP)
                        FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Installation Instructions (PDF)

Wheel Clearance Diagram

Wilwood 300-10716 Steel Wheel Shim-Shield, 6 1/4 Inch O.D.
(Part #8353007500)
                        This shim is .094" thick, has a 3.245 center hole and is 6.25" O.D. It has 5 on 4 1/2", 5 on 4 3/4" and 5 on 4" bolt patterns to fit over a 1/2" stud. It is made of steel.
