This flapper valve or rollover valve, installs in the fuel cell and is retained by the bolts used to secure the filler cap flange to the cell.
This oval shape flapper is designed to retrofit all RCI Circle Track cells with the 16 bolt oval type 4" cap assemblies. Hole mount pattern is 8" center to center x 5-1/4" center to center across the oval pattern.
This fuel cell is design to fit chassis that use the common teardrop design. The red powder coated steel can has an AN10 pickup, AN8 vent/tip-over valve and AN8 return fitting. It is 24-3/4" eide and has a steel fill cap and IMCA approved flapper valve. Mounting straps sold separately.
Cast aluminum fill valve mounts on fuel cell. Has spring loaded flapper valve. Mounts with twelve bolts on a 5" circle. 6-1/2" outside diameter. 2-1/2" hose end.
RCi Circle Track steel can fuel cells are manufactured with a cross-linked, high strength polyethylene bladder.Pickup hose is designed to pick up from right rear corner. All cans are spotwelded and powdercoatedin your choice of Red, White or Black.
New 26 gallon fuel cell features a 20 gauge steel can with a tough cross-linked polyethylene cell inside. Includes fuel cell, steel can, tip over valve and a twist on cap. Tank is 25" x 17" x 17". Available in Red, White or Black.

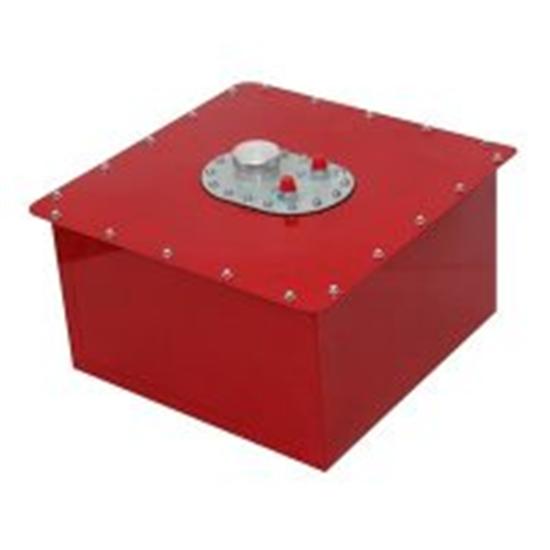

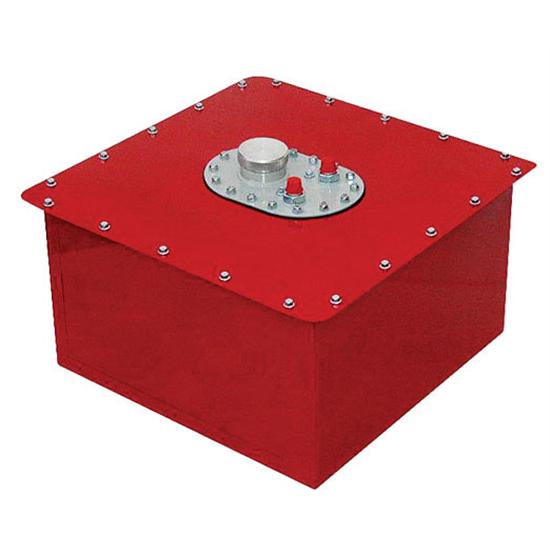

RCi Circle Track steel can fuel cells are manufactured with a cross-linked, high strength polyethylene bladder. Pickup hose is designed to pick up from right rear corner. All cans are spotwelded and powdercoated in your choice of Red, White or Black.
The 20 gauge steel can encloses a tough cross-link polyethylene cell.Includes fuel cell, steel can, IMCA required tip-over valve, and 4" diameter twist-on cap.Has a -8 AN fuel line hookup and return vent. Safety foam sold separately.
Tech Tip: Carefully determine the size of fuel cell needed. Depending on the capacity, a full fuel cell will generally weigh between 100 and 200 lbs. Buy the optimum size fuel cell to best accommodate weight bias and fuel consumption.
These polyethylene fuel cells are the best cells on the market! This 100% seamless polyethylene cell features one -8 ANpick-up fitting and one -8AN vent/tip-over valve fitting.These fuel cells contain a pickup tube.All cells are NHRA, IHRA, SCORE, and DIRT approved.
This 3 gallon fuel cell has a -8 AN pickup with a -6 ANvent. It is 10-1/2" tall and measures 12" x 7-1/2" at the bottom, and 10-3/4" x 5-3/4" at the top.
Jaz makes the bestpolyethylene fuel cells on the market! This 100% seamless polyethylene cell features one -8 ANpick-up fitting and one -8AN vent/tip-over valve fitting.These fuel cells contain a pickup tube.All cells are NHRA, IHRA, SCORE, and DIRT approved.
Zinc-plated steel mounting straps available for 8 gallon seamless polyethylene fuel cells (non-steel can cell design).
Zinc-plated steel mounting straps available for 16 gallon seamless polyethylene fuel cells (non-steel can cell design).
Zinc-plated steel mounting straps available for 12 gallon seamless polyethylene fuel cells (non-steel can cell design).
These brackets are 16 1/2" wide and 7 1/2" tall.
91091015Overall Length4.750" (4 3/4")Overall Width1.550"Material Thickness0.080"Material TypeSteelFinishNaturalSold in QuantityEach
91676550Overall Diameter5.000"Inside Diameter1.750" (1 3/4")Hose ID2.000"Material TypeAluminumSold in QuantityEachNotes6 mounting holes on a 4.36" bolt circle. Includes mount ring, bolts and gasket.
After mounting location or update for a different fuel cell brand or size. Also used for repair on broken or bent tabs
