These caliper brackets mount flat and must be welded onto your 3" diameter axle tube. Designed to mount a 1978-1988 GM metric car front caliper for use with an 11.75" diameter rotor. Brackets are 1/4" thick. IMCA APPROVED
Weld-on brackets attach spring and radius rods to 2" O.D. axles. For spring behind front axle suspensions. 3/8" thick steel, 5" eye to eye. Spring Behind Illustration (GIF)

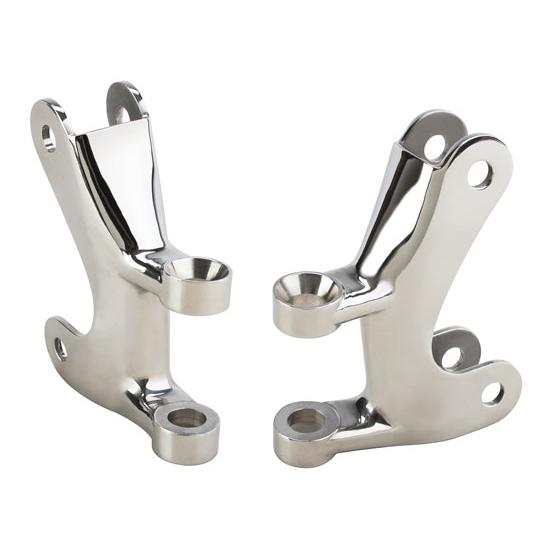

Investment cast stainless steel. For axles with 2-1/4" boss (spacer required for 2" axle boss). Four-bar mount center-to-center is 4-1/2". Has 1/2-20" threaded hole for panhard bar or sway bar mounting.
Will hold two complete front ends one bare front end and one complete rear end.

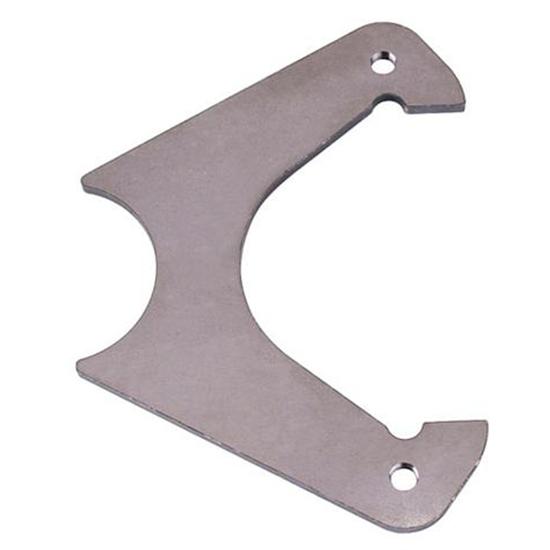

These caliper brackets mount flat and must be welded onto your 3" diameter axle tube. Designed to mount a 1969-1977 GM mid-size car front caliper for use with an 11.75" diameter rotor. Brackets are 5/16" thick. IMCA APPROVED
These caliper brackets mount flat andmustbe welded onto your 3" diameter axle tube. Designed to mount a1969-1977 GM mid-size car front caliperforuse withan 11.75" diameter rotor. Brackets are 5/16" thick.IMCA APPROVED
These caliper brackets mount flat andmustbe welded onto your 3" diameter axle tube. Designed to mount a1978-1988 GM metric car front caliperforuse withan 11.75" diameter rotor. Brackets are 1/4" thick.IMCA APPROVED
