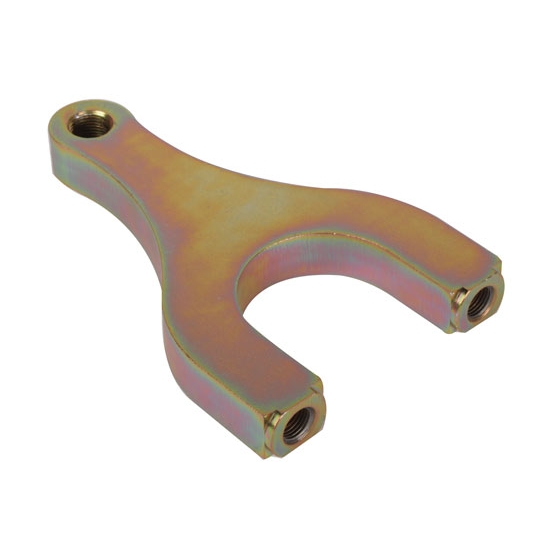

Ford Upper Steering Arm, Plain, 6-1/4 Inch, 5/8 Hole

Specs
Material Type:
Steel
Finish:
Zinc
Ford Upper Steering Arm, Plain, 6-1/4 Inch, 5/8 Hole

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Flame cut steel upper steering arm for '37-'48 Ford spindles (with 3-3/8" mount centers). This design is available in 6-1/4" or 7-3/4" lengths. The longer 7-3/4" arms permit a tighter left turn when using large diameter front tires or front wheels with a deep reverse, and it also slows the steering rate for greater control. 5/8" end accepts spherical rod ends.

NOTE: Upper steering arms allow the attachment of a drag link to the LH (driver's side) spindle. The arms attach with bolts through the upper 2 backing-plate-mounting holes on spindle.

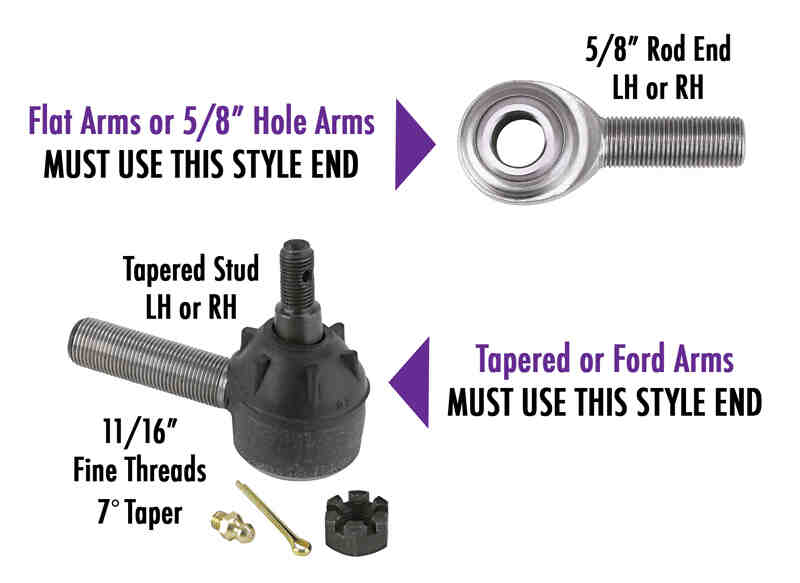

Steering Arm Ends Guide (GIF)

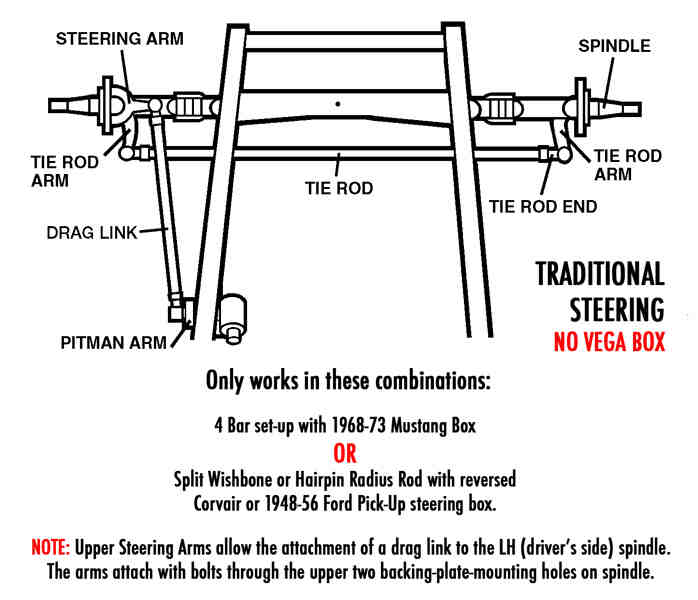

Parallel Steering Set-Up Guide (GIF)

Customer Reviews

Rated 3.7 out of 5 by 3 reviewers.
RATING BREAKDOWN
3 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
1
1 Star
0
RECOMMEND THIS PRODUCT:

Mann
Verified Purchaser
Verified Reviewer
Tennessee

What I needed but quality is an issue

July 11, 2015
First one I ordered had stripped threads. It must have been used and returned before. Replacement was easy. Second one they sent had rusted threads. It's been soaking for 10 days now in PB blaster so I can get the rust off the threads and actually use it. Frustrated with the quality to say the least. Considering having one made at the local machine shop.
Pros:
  • Solid Right Length
Cons:
  • Rust
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Merchant Response:

Mann – Thanks for your review. We appreciate hearing from you. Your review has been passed along to our Customer Service team to review the situation and our QC team to record and inspect the issue with this product. We apologize for your frustration and are always happy to help.
cookster31

fits good

September 12, 2014
Works good you just have to grind a little to fit the caliper
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rocket Man
Seattle, WA

Dollar per pound it's worth the price

April 03, 2010
A very sturdy piece of metal that will keep me safely connected to the front wheels
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

0 questions : 0 answers

No questions have been asked.
