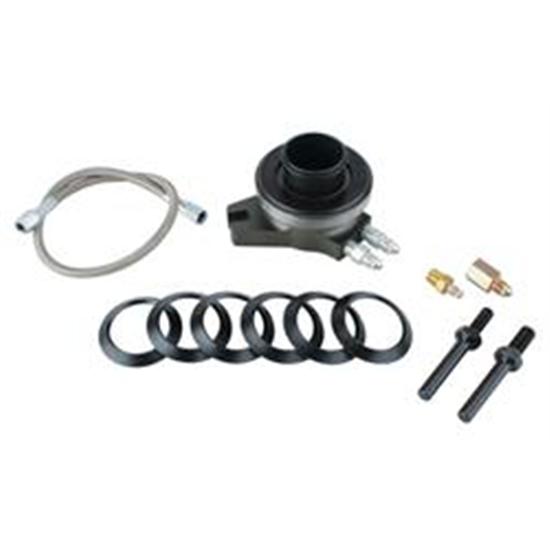

Ram hydraulic bearings ease installations in vehicles with chassis constraints, and offer a smooth, lighter pedal effort. Kits contain the bearing, shims, fittings for AN# 3 connection, bleed line, and mounting hardware. A 3/4 inch bore master cylinder and AN 3 feed line are required for this installation. For 10-1/2" street stock type clutches. This bearing comes with a new special machined front bearing retainer for the release bearing to ride on. The sleeve ID 1.379 The bearing OD 2.940 Length collapsed 2.192 Length extended 3.050 Stroke .853
Ultra lightweight clutch release bearing for Chevy or Ford transmissions. Installs by simply removing two of the bearing retainer bolts and replacing them with the provided studs. Use 3/4" bore master cylinder. Works with the following clutches: Tilton 2-disc or 3-disc (7.25" and 5.5") Quartermaster 2-disc or 3-disc (7.25" and 5.5") Ram Assault 2-disc or 3-disc (1996 and newer) 910-25602 Instructions (PDF) NOTE: Will not work with stock-style clutches or Ram Couplers.
Ram hydraulic bearings ease installations in vehicles with chassis constraints, and offer a smooth, lighter pedal effort. Kits contain the bearing, bleeder hose assembly, shims and mounting hardware. A 3/4 inch bore master cylinder and AN 3 feed line are required for this installation. For 10-1/2" street stock type clutches. This bearing comes with a new special machined front bearing retainer for the release bearing to ride on. The sleeve ID 1.385 The bearing OD 2.940 Length collapsed 2.174 Length extended 3.032 Stroke .867
Our T-5 throw out bearing is for GM-style Borg-Warner T-5 transmissions using an OEM or OEM replacement clutch. The base of the T-5 bearing is machined to fit the bearing retainer of the T-5 transmission. The compressed thickness is 1.516" and 2.065" fully extended giving .549" of travel. The inner diameter of the throw out bearing is 1.379". It is known to fit many T-5 transmissions, but does not fit Ford versions. Use 3/4" bore clutch master cylinder. Note: T/O bearing includes a 3/8" and 5/16" threaded retainer stud. If ...
