These kits include our gasser straight front axle, semi-elliptical springs, spindles, king pins, steering arms, tierod kit, brake kit, and hardware. Choose either 5 on 4-1/2" or 5 on 4-3/4" bolt pattern with standard brake kit or Wilwood brake kit. Standard brake kits use new rotors and GM metric style calipers. Brake lines not included. Shocks not included, but shock mounts are included. Assembly required. Gasser Info (PDF) Note : Wilwood brakes increase hub-to-hub width by 1/2". 910-3544 Instructions (PDF)

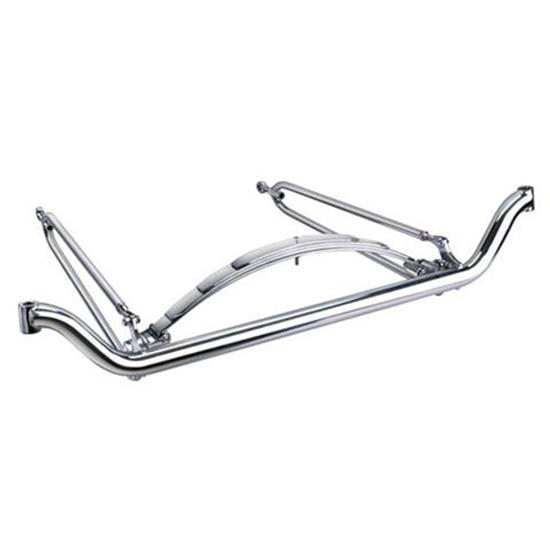

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles. Spring-Behind Axle design 48" eye-to-eye Use with 26" spring Spring Behind Axle Illustration (GIF) Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Speedways 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1937-48 Ford style spindles. Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Speedways 3" Drop Tube Axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall steel tubing. Use with 1937-48 Ford style spindles. Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Speedways 3" drop tube axles are a one-piece design featuring precision welded ends and perch bolt holes. Axle is formed from high strength 2" x .250" wall stainless steel tubing. Use with 1937-48 Ford style spindles. Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
If you are looking for that dropped axle gasser look or just need a dropped axle, we've got your deal! Our plain steel, universal application axles are professionally engineered & built. Accommodates different frame widths when using our weld-on spring pads (not included, welding required). Uses '37-'48 Ford style spindles 6" drop Axle Tube: 0.250" wall Axle Diameter: 2.00" O.D. Axle Width: 48" kingpin center-to-center
If you are looking for that dropped axle gasser look or just need a dropped axle, we've got your deal! Our plain steel, universal application axles are professionally engineered & built. Accommodates different frame widths when using our weld-on spring pads (not included, welding required). Uses '37-'48 Ford style spindles 4" drop Axle Tube: 0.250" wall Axle Diameter: 2.00" O.D. Axle Width: 48" kingpin center-to-center
Speedway Double Dropped axles are constructed from 2" x .250" wall stainless steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles. Spring-behind axle design 48" eye-to-eye Use with 26" spring Spring Behind Axle Illustration (GIF) Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles. Spring-behind axle design 48" eye-to-eye Use with 26" spring Spring Behind Axle Illustration (GIF) Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Speedway Double Dropped axles are constructed from 2" x .250" wall stainless steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles. Spring-over axle design 48" eye-to-eye Use with 26" spring Spring Over Suspension Image (Link) Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles. Spring-over axle design 48" eye-to-eye Use with 26" spring Spring Over Suspension Image (Link) Leaf Spring Measuring Guide (Link) Caster Angle Illustration (GIF)
These precision made 4" dropped I-Beam axles accept 1928-34 Ford spindles and have 2-1/4" axle bosses. Dropped I-beam axles feature a one-piece design cast from high-strength 65-45-12 annealed ductile iron. Caster Angle Illustration (GIF) Leaf Spring Measuring Guide (Link) I-Beam Axle Application Chart (GIF) Front Axle/Suspension Tech Tips (GIF)
These precision made axles accept 1937-48 Ford spindles and have 2-1/4" axle bosses. Dropped I-beam axles feature a one-piece design of annealed ductile iron. Note that recessed areas of chromed axles are not polished. Caster Angle Illustration (GIF) Leaf Spring Measuring Guide (Link) Tube and I-Beam Axle Application Chart (GIF)
4" Drop 47" Wide Accepts stock or new '37-'48 Ford spindles Use with 29" spring 34" perch centers Front Axle/Suspension Tech Tips (GIF)
For 1937-1948 early Ford passenger car spindles. Maximun car weight 2500 lbs. Kit includes: Two 1-3/4" spring shackles w/ nylon bushings Two spring pivots 26" 4-leaf spring w/ nylon buttons Two axle brackets Tube axle, 48" eye-to-eye, 6" dropped Two 27" radius rods Four clevises with jam nuts and bolts Two 5/8" Heims with jam nuts Spring U-bolts sold separately Instructions (PDF) Front Axle/Suspension Tech Tips (GIF)
