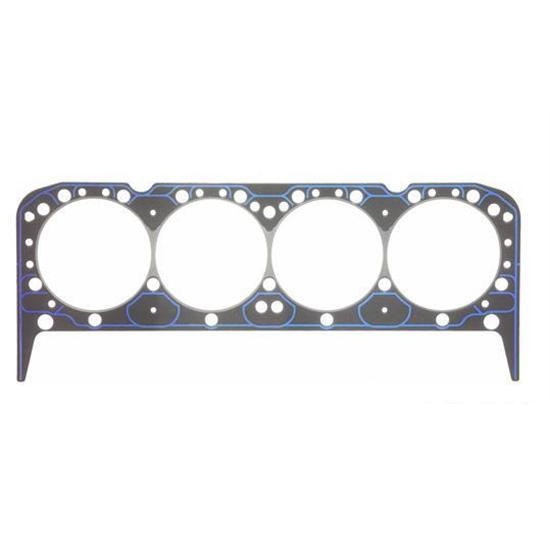

Fel-Pro P1034 S/B Chevy 265-400 Steel Ring Head Gasket 4.200 Inch Bore

Fel-Pro P1034 S/B Chevy 265-400 Steel Ring Head Gasket 4.200 Inch Bore

Click image to enlarge

Details

Reviews (0)

Q & A (0)

What's in the Box

Info

These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS.

  • Gaskets are sold each
  • Nominal compression thickness: .041"
  • Compressed volume:  9.3 cc
  • Recommended for 86-91 Corvette aluminum heads. Max 4.155" bore.
  • 4.200" bore gaskets can be used on 400 race engines with up to 4.155" max bore with minimal chamfer.
  • When using aluminum heads, we recommend gaskets with soft copper wire rings (such as 344-1010). This ensures that the aluminum head is not "scarred" by the combustion seal. Shim style 344-1094 will also work well with aluminum heads.

Head Gasket Application (JPEG)

Speedy Tip for Proper Head Gasket Seal (GIF)

Item Details

4.200" bore, .041" thick, 9.3 cc volume
