Copper exhaust gaskets are die cut and dead soft. Embossed port ridge for a perfect seal. Cure the "leaky header blues" with these copper exhaust gaskets. Constructed of the finest .041 copper material and will seal where most gaskets fail. Reusable. Gasket is beveled around the ports, the thickness of the gasket it .0425". The height from the bottom of the gasket to the top of that bevel is .1000"
The N351 Sportsman cylinder head has been retooled and is now in stock and ready to ship. Designed for Ford 351W engines. Ford N-heads were developed by Ford Racing with the help of Robert Yates. BARE heads are sold EACH COMPLETE heads are sold in PAIRS Bare heads feature: Fast-Burn 64cc combustion chambers Machined for 2.02" intake and 1.60" exhaust valves Intake and exhaust valves have been moved .070" to unshroud the intake valve Valve angle changed from 20 degrees to 10 degrees to further improve air flow Three-angle valve job ...
For W9 or W9 raised port headers.NO WARRANTY NO RETURNS ON GARAGE SALE ITEMS
Track proven for S/B Chevy. Extra thick flanges. Headers feature 3-1/2" from flange to bend and approximately 32" primary tubes. Bolt directly to aluminum spread port heads. Complete with gaskets and bolts. Available with 1-3/4" 1-7/8" or 2" primary tubes. Header Dimension Chart
Schoenfeld header exhaust gaskets for Brodix spread port Small Block Chevy cylinder heads.
This Speedway S/B Chevy 283-400 exhaust gasket fits standard oval port heads as well as D-Port heads such as those found on the GM ZZ4 crate engine (Fast Burn heads). Ports measure 1-3/8" wide x 1-5/8" tall.
Make sure your dirt late model is running as strong as possible by bolting on a set of high-quality headers. These dirt late model headers fit most popular chassis and body designs. They have long primaries and position the collectors outside of the frame. These are designed for standard-port Small Block Chevy cylinder heads but they are also available for spread-port heads.Designed specifically for dirt late model applications these headers have primary pipes that step from 1-3/4" to 1-7/8" and 3-1/2" collectors that are 9" long. They are for Small ...

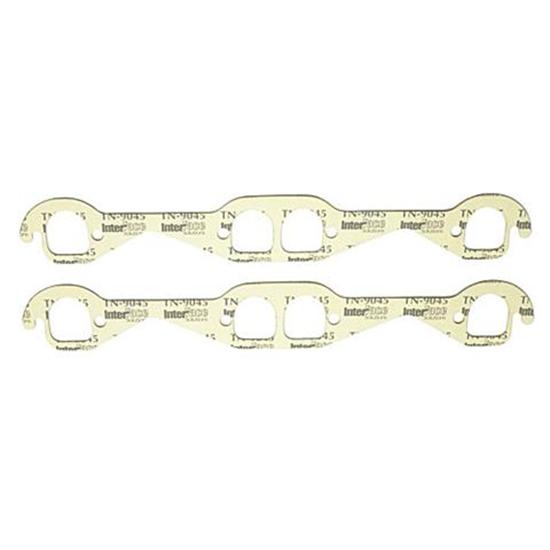

Super Seal offers premium quality components & materials and exceeds all sealing requirements established by gasket manufacturers. For "D" port heads.
Super Seal offers premium quality components & materials and exceeds all sealing requirements established by gasket manufacturers. For Small Block Chevy stock style square port heads.
Cure the "leaky header blues" with these copper exhaust gaskets for round port Small Block Chevy heads. These copper exhaust gaskets are die cut and dead soft. Embossed port ridge for a perfect seal. Constructed of the finest .041" copper material and will seal where most gaskets fail. Reusable.

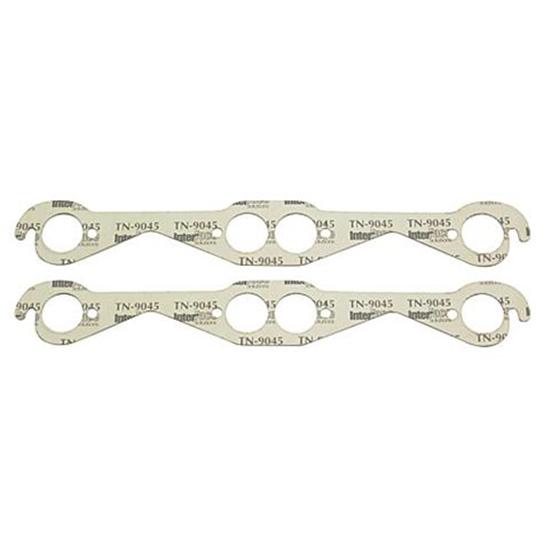

Super Seal offers premium quality components & materials and exceeds all sealing requirements established by gasket manufacturers. Fits small round port Small Block Chevy cylinder heads.
Swept forward for muffler clearance. Fits Chevy Brodix Spread Port and now all Pro Spread Port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18 ga. primary tubes and 3-1/2" x 14" collectors may be shortened. Bolts directly to your head and comes with bolts and gaskets.Header Dimension Chart
Over 200 degrees of bends removed for increased flow and 8-10 hp increase. Fits standard Chevy Brodix spread port and now all pro spread port pattern heads. Laser cut flanges to clear down nozzles. Headers welded to clear 4" from head to inside tube. Approximately 32" 18-gauge primary tubes and 3-1/2" collectors. Comes with bolts and gaskets.Header Dimension Chart
These tight-fit headers are designed to be used with standard exhaust port Small BlockChevy heads that have angle spark plugs. Features 1-5/8" primary tubes and 2-1/2" collectors with 2-1/4" outlets. These shorty headers are perfect for tight-fit installations.The block hugger hearders come with bolts gaskets and reducers. The port openings on the tight fit headers are round and work fine on heads with round or rectangle ports.Header Dimensions(GIF)
These tight-fit headers are designed to be used with standard exhaust port Small BlockChevy heads that have angle spark plugs. Features 1-5/8" primary tubes and 2-1/2" collectors with 2-1/4" outlets. These shorty headers are ceramic coated headers.Comes with bolts gaskets and reducers. The port openings on the header are round and work fine on heads with round or rectangle ports.Header Dimensions(GIF)
If you have a ZZ4 crate motor or are using ’92-and-later LT1 or LT4 style D-port heads in your street rod these tight-fit headers are for you. The tight-fit design fits in a wide variety of applications and the shorty headers have built-in OEM-style donut seals on the collectors so no gaskets or collector reducers are needed.Compact design OEM-style exhaust pipe connection3/8” thick flanges 16-gauge tubingHeader bolts and flange gaskets are includedHeader Dimensions(GIF)
If you have a ZZ4 crate motor or are using ’92-and-later LT1 or LT4 style D-port heads in your street rod these shorty headers are for you. The tight-fit headers design fits in a wide variety of applications and the block hugger headers have built-in OEM-style donut seals on the collectors so no gaskets or collector reducers are needed. These block hugger headers are ceramic coated headers.Compact design OEM-style exhaust pipe connection3/8” thick flanges 16-gauge tubingHeader bolts and flange gaskets are includedHeader Dimensions(GIF)
This Speedway S/B Chevy 283-400 exhaust gasket fits standard oval port heads as well as D-Port heads such as those found on the GM ZZ4 crate engine (Fast Burn heads).Ports measure 1-3/8" wide x 1-5/8" tall.
