Edelbrock Small Block Chevy Dual Quad Set-Up

SAME DAY SHIPPING! Order within the next 8 hours 48 minutes and receive same day shipping

Free Shipping Free Shipping
Specs
Material Type:
Aluminum
Sold in Quantity:
Kit
Finish:
Natural
Port Height:
1.90
Port Width:
1.18
Mounted Height:
7.553
Gasket(s) Included:
Yes
CFM:
500
Choke Type:
Manual
Fuel Type:
Gasoline
Carburetor Barrels:
4
Secondary Type:
Mechanical
Fuel Inlet Type:
Dual
Intake Manifold Type:
Dual Plane
Carburetor Quantity:
Two
Carburetor Flange Type:
4-Barrel Square Bore
Carburetor Finish:
Natural

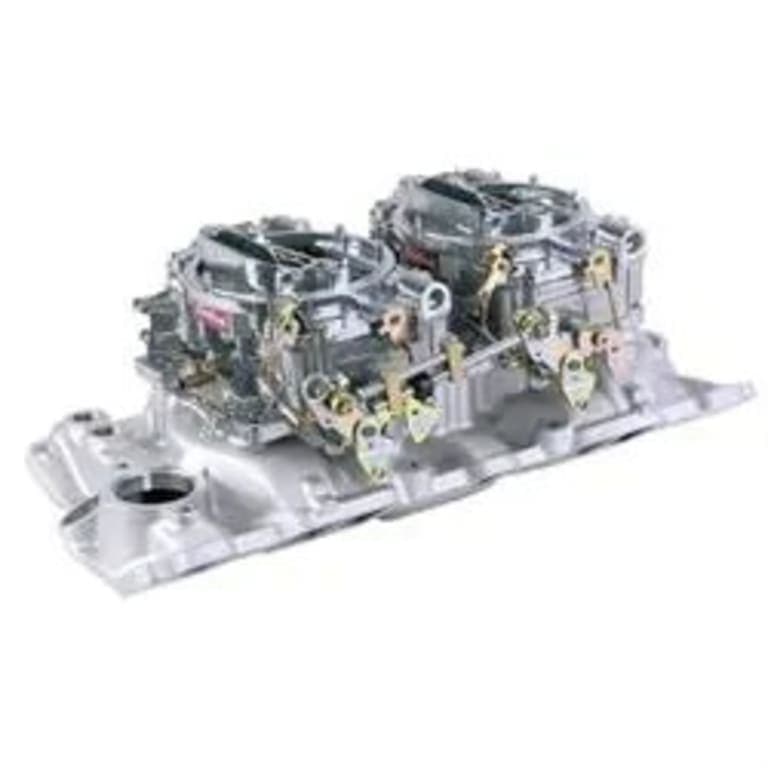

Edelbrock Small Block Chevy Dual Quad Set-Up

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

There is nothing sweeter looking or sounding than a dual quad on a Chevy!  This one kit gets you two manual choke Edelbrock carbs, an Edelbrock unpolished intake manifold, fuel line and special progressive linkage.  Just add a suggested air cleaner to finish your installation. Will clear HEI distributors. 6-7/16" carb centers.

  • 1957-86 262-400 small block
  • (2) 500 cfm manual choke carbs
  • C-26 Dual-Quad manifold
  • 1500-5000 rpm
  • Low profile for hood clearance on most vehicles

Notes

  1. Electric choke-equipped carburetors will not work on this 2-carb setup. Electric chokes will not release fast enough, causing the engine to load up, foul plugs, and stall before the choke fully opens. With manual chokes the driver can open the chokes as soon as necessary after the engine starts. (With the huge fuel supply available from two 4-barrel carburetors, a choke mechanism is really not necessary but for a brief time.)
  2. Air-conditioning bosses and front oil filler tube boss included.
  3. Stock alternator brackets do not fit.
  4. Port exit dimensions: 1.18" x 1.90".

Specs

Measurements using the rear valley of the intake as a starting point it is:

  • 3.433" to the bottom mounting surface
  • 6.640" to the ring mount on the carb
  • 7.553" to the top of the throat/highest point on the carb
Measurements from the bottom of the intake valley to the highest point on some of our popular air filter assemblies:
  • 325-4237: 10.490"
  • 325-1235: 9.753"
  • 325-4119: 11.489"

Customer Reviews

Rated 5 out of 5 by 2 reviewers.
RATING BREAKDOWN
2 reviews
5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Jimbobby
Roseburg, OR, USA

Great Performance

September 23, 2013
This is a great setup once you dial it in...Quality in a box. Great fuel mileage and when the second carb kicks in you know you did the right thing....
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

olrosa
Verified Purchaser
colorado

A+

August 12, 2011
comes with everything you need
Pros:
  • Powerful
No, I would not recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

14 questions : 17 answers

1 answers

can this work on 350 - 330 hp crate engine I just bought from you. I would like to have the oil filler pipe.

boss34
Florida
February 08, 2015

can this work on 350 - 330 hp crate engine I just bought from you. I would like to have the oil filler pipe.

Answers

February 09, 2015
EricM
No this will not fit on The GM crate engine 35519210007 which is the 350 with 330 hp. That engine requires a Vortec style intake manifold. You would need dual quad kit 92519916 for that engine but that intake does not have the provision for a oil filler pipe.
1 answers

I'm running this setup on my 34 for with a 700R4. What brackets do I need for the throttle and TV cable? I have a 78 350 with an 89 700R4. I don't want anything billet (this is a driver) plain steel or chrome would work.

BIGJIM
Connecticut, USA
January 11, 2015

I'm running this setup on my 34 for with a 700R4. What brackets do I need for the throttle and TV cable? I have a 78 350 with an 89 700R4. I don't want anything billet (this is a driver) plain steel or chrome would work.

Answers

January 13, 2015
EricM
For a basic bracket and return springs 491SRK4000 or 49141000 in black works well. Then you will need a throttle cable such as 4911000U and a kickdown cable 491KD2700U. Since you are using Edelbrock carbs you also have the option of using the cable bracket 491105 instead of the basic one.
1 answers

Do you have this same set up in the Enurashine configuration?

BobS1948
September 08, 2014

Do you have this same set up in the Enurashine configuration?

Answers

September 08, 2014
EricM
We offer the carbs in the Endurashine finish which we can substitute in this kit for the difference in the cost of the carbs. Sorry we do not offer the intake in an Endurashine finish.
1 answers

What about a PCV setup This kit is going on a 67 or 68 327 in a 60 corvette. I would like to retain the corvette valve covers that do not have pcv breather holes in them. Does the intake have a hole that can be used to install a pcv valve and connect it to the carb to complete the pcv system (using the oil fill tube as the air intake)?

Hogg60
Inciana
July 27, 2014

What about a PCV setup This kit is going on a 67 or 68 327 in a 60 corvette. I would like to retain the corvette valve covers that do not have pcv breather holes in them. Does the intake have a hole that can be used to install a pcv valve and connect it to the carb to complete the pcv system (using the oil fill tube as the air intake)?

Answers

August 05, 2014
EricM
The intake in this dual quad kit has a hole for the draft/fill tube port. There is no hole in the intake to accommodate the PCV valve. You many consider the end of the valve cover where it could be drilled out for the PCV valve.
1 answers

Any recommendation on manual choke set up

Gms1957
Ny
July 05, 2014

Any recommendation on manual choke set up

Answers

July 07, 2014
EricM
You can use a choke cable such as 91126114 and then link the two choke arms on the carburetors together so that only one cable is needed.
1 answers

What's up with the oil filler tube.? My 78 camaro doesn't use the filler tube. What about the air gap manifold?

louise
Washington, USA
March 12, 2014

What's up with the oil filler tube.? My 78 camaro doesn't use the filler tube. What about the air gap manifold?

Answers

March 13, 2014
EricM
The earlier SBC engines had an oil filler tube in the intake maifold. You can plug that hole with a soft plug since it is not needed on your 78 Camaro. Sorry I do not offer this dual quad intake in an Air Gap version.
1 answers

Will this unit clear a hei distributer Using on a 350 290hp small block chevy. Trans is 700r4. I also would like to know the center to center on carbs thank you

Rogue41
East coast
January 10, 2014

Will this unit clear a hei distributer Using on a 350 290hp small block chevy. Trans is 700r4. I also would like to know the center to center on carbs thank you

Answers

January 10, 2014
Travisp
This will clear an HEI distributor. The small block dual quad set up number 92519906 could be used on your 350 engine as long as you have the early style heads from 57-86. We also offer a similar kit for the Vortec style heads under number 91619916. The carb centers are 6 7/16” and comes with adjustable progressive linkage.
1 answers

Will this work on a ZZ4 350 crate engine??

Rrick
October 14, 2013

Will this work on a ZZ4 350 crate engine??

Answers

October 14, 2013
Jason
Yes, the Edelbrock dual quad set-up will work with the ZZ4 cylinder heads.
2 answers

I have a stock 1967, 327/275hp small block. What modifications do I need to make for this to be viable installation on this motor?

Norguy
August 05, 2013

I have a stock 1967, 327/275hp small block. What modifications do I need to make for this to be viable installation on this motor?

Answers

September 24, 2013
Jimbobby
Put it on and dial it in...It'll work great
August 05, 2013
Jason
This Edelbrock dual quad set up will bolt directly on 1957-'86 small bock chevy's. It will run on most applications with our standard fuel pump pre set at 7 PSI and delivering 67 GPH. If you run a higher flow and higher pressure pump you will also need to run a pressure regulator to eliminate the high pressure forcing fuel past the needle and seat. Adding headers, a high performance cam and cylinder head work will aid in the performance of this dual carb set up.
1 answers

What size fuel line and fuel pump will this product need

Abbs
Denver Co
July 23, 2012

What size fuel line and fuel pump will this product need

Answers

July 27, 2012
John
The fuel log in the kit is 3/8” and 3/8” fuel line should be sufficient for even high rpm applications. The 7 psi fuel pump by Holley or Speedway offering 97 GPH should handle the needs without a regulator.
Page 1 of 2
