Economy Bolt-On Front/Rear Brake Kit for Ford Spindle

SAME DAY SHIPPING! Order within the next 4 hours 57 minutes and receive same day shipping

Specs
Material Type:
Cast Iron
Sold in Quantity:
Kit
Bolt Pattern:
5 on 4.5"
Stud Length:
1.5
Stud Diameter:
.5
Thread Pitch:
1/2"-20
Hardware Included:
Yes
Rotor Diameter:
11.00
Caliper Pistons:
Single
Rotor Thickness:
1
Caliper Finish:
Natural
Parking Brake Provision:
Yes
Rotor Construction:
Vented
Garage Sale:
No
Rotor Shape:
Round
Drilled:
Yes
Slotted:
No
Notes

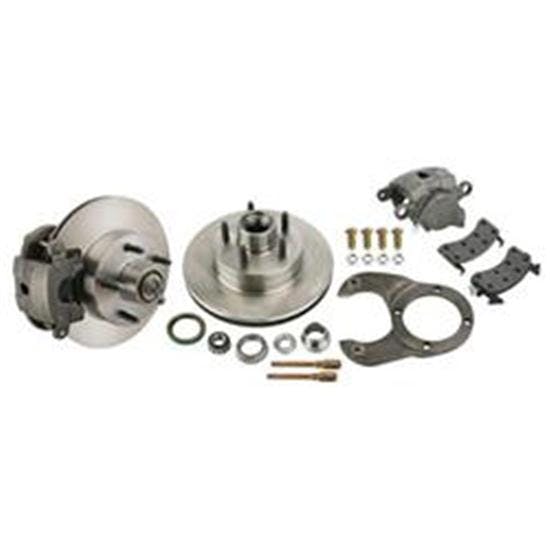

Includes rotors, rotor adapters, calipers, bearings and seals, hardware, caliper brackets, brake pads, and brake line adapters.
Economy Bolt-On Front/Rear Brake Kit for Ford Spindle
Economy Bolt-On Front/Rear Brake Kit for Ford Spindle
Economy Bolt-On Front/Rear Brake Kit for Ford Spindle

Click image to enlarge

Please NOTE the following about this product:

  • This item is sold as a kit.

Details

Reviews

Q & A

What's in the Box

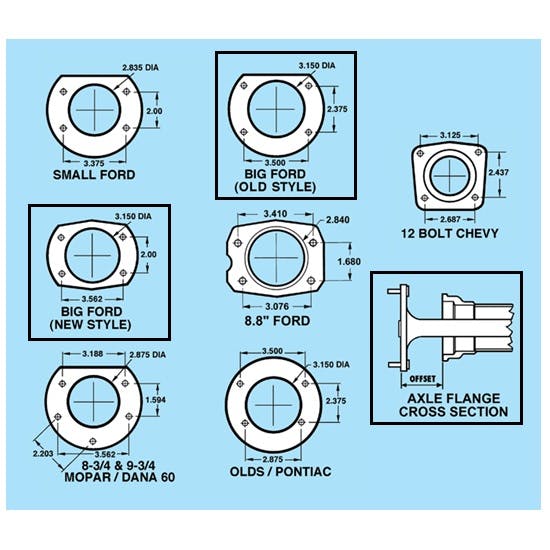

Complete the front and rear suspension assembly on your T roadster chassis with a bolt-on brake kit specifically designed for our '37-'41 Ford style spindles and 9" Ford rear end. Each kit includes all necessary components: new rotors (available with 5-on-4.5" or 5-on-4.75" bolt pattern), remanufactured GM Metric calipers, caliper brackets, brake pads, bearings, seals and hardware. Rear kit bots on new-style Big Ford ends.

Customer Reviews

This product has no reviews.

Product Q&A

3 questions : 3 answers

1 answers

What bore size master cylinder should I use for a non-power setup?

Paul1955
Atlanta, GA, USA
October 13, 2014

What bore size master cylinder should I use for a non-power setup?

Answers

October 13, 2014
EricM
A 1" bore master cylinder works well with this kit on a manual pedal assembly.
1 answers

What is the minimum diameter wheel that can be used with these brakes? Does offset matter?

RacingRoger
Fort Wayne, IN, USA
March 18, 2013

What is the minimum diameter wheel that can be used with these brakes? Does offset matter?

Answers

March 20, 2013
Jason

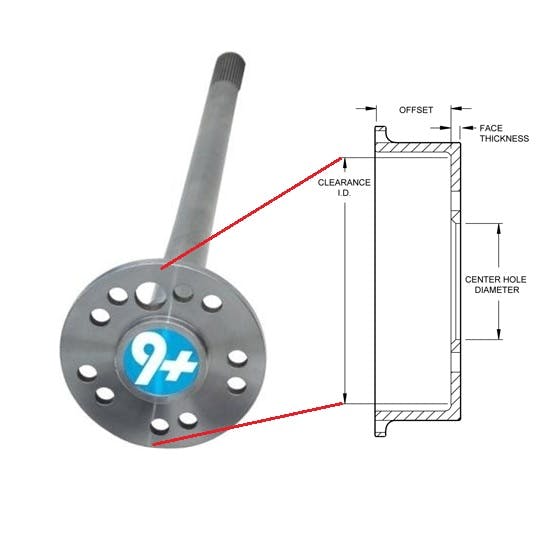

A minimum of 15” disc brake compatible wheels are required for the 7154040 front and rear brake kits. Offset will not matter on disc brake compatible wheels
1 answers

will this kit fit the Tribute T

grump
Arkansas, USA
December 07, 2012

will this kit fit the Tribute T

Answers

December 07, 2012
Jason
The Tribute T running the 28-48 Ford Speedway spindles and the 9” rear end option will accept our kit number 7154040 front and rear disc brake kits.
