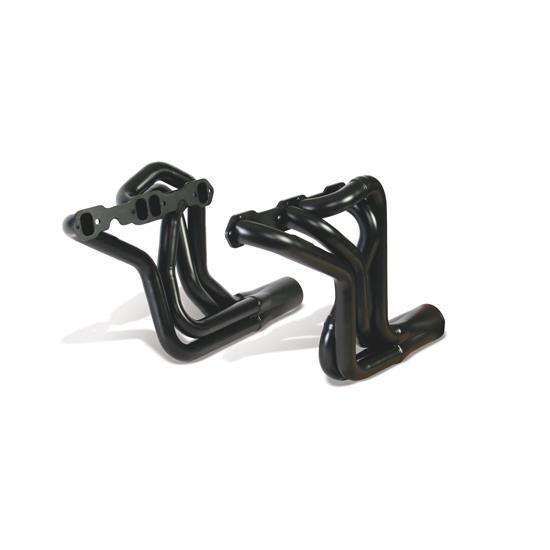

Dynatech Chevy Street Stock Headers, 1-5/8 Primary, 3 Inch Collector

SAME DAY SHIPPING!

Specs
Material Type:
Steel
Sold in Quantity:
Pair
Finish:
Painted
Tube O.D.:
1.63
Port Height:
1.55
Port Width:
1.38
Flange Thickness:
.25
Flange Style:
Square Port
Collector Diameter :
3.00
Gasket(s) Included:
Yes
Hardware Included:
Yes
Drivers Side Dimension A:
4.25
Drivers Side Dimension B:
17.10
Drivers Side Dimension C:
29.25
Passenger Side Dimension A:
5.60
Passenger Side Dimension B:
16.25
Passenger Side Dimension C:
32.63
Collector Length:
7.75
MFG. Part #:
701-21910
Garage Sale:
No

Share by Email

From
To

Click image to enlarge

X

Please NOTE the following about this product:

  • This item is sold as a pair.

Details

Reviews

Q & A

What's in the Box

Fits Following Models: Camaro ('70-'81), Malibu, Monte Carlo, Grand Prix, Cutlass & Buick Regal ('72-'87)

  • Fits in stock location
  • Can use solid side and rear mounts
  • For Standard Chevy or Crate Engine applications
  • Fits angle or straight plug heads
  • Gaskets, bolts and hardware included
  • Must use short oil filter
  • Will not clear stock manual clutch linkage ball

Header Dimension Chart

Item Details

Tube Size: 1.625 / Coll.: 3.0
