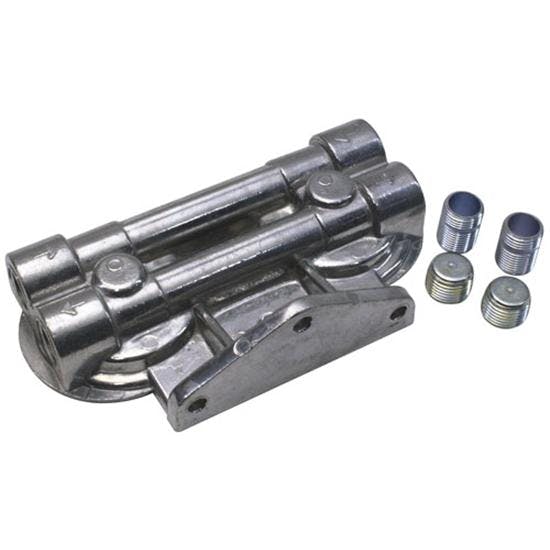

Dual Horizontal Remote Oil Filter Bracket

SAME DAY SHIPPING! Most orders ship within 24 hours.

Dual Horizontal Remote Oil Filter Bracket
Dual Horizontal Remote Oil Filter Bracket
Dual Horizontal Remote Oil Filter Bracket

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Get twice the filtration capacity of a single unit with this oil filter relocator. Aluminum construction with 1/2" NPT female inlet/outlet threads. Accepts most Ford filters with 3/4"-16 thread (Fram PH8 or HP1 filters).

Three items are needed for a remote oil filter assembly:

  1. Choose a remote oil filter bracket.
  2. Choose a remote bypass adapter to replace your oil filter.
  3. Choose a hose kit to connect the bypass adapter and oil filter bracket.

Item Details

3/4" x 16 Thread

Customer Reviews

Rated 5 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Hudson guy
Verified Purchaser
Washington State
Product Rating

Good price for a good product.

April 03, 2011
In modified form, this product allowed me to provide oil filtration from two separate sources in one unit, making for a clean, professional looking installation and avoiding the cost and time of mounting two separate units.
Pros:
  • Meets special needs
  • High-Performance
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

1 questions : 1 answers

Does this remote filter bracket put the filters in parallel or series?

1 answers
steveg
Virginia, USA
November 23, 2012

Does this remote filter bracket put the filters in parallel or series?

Answers

November 26, 2012
Jason
This bracket will place filter side by side parallel
Page 1 of 1
