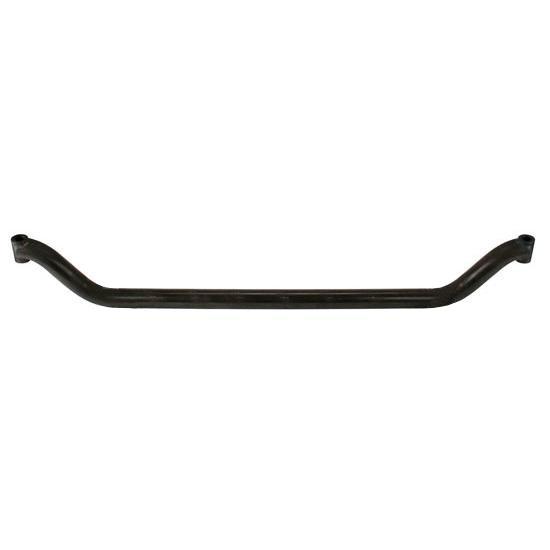

Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 4 Inch Drop

Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 4 Inch Drop
Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 4 Inch Drop
Product Video
Dropped Gasser Front Axle, Chevy Spindle, 48 Inch Wide, 4 Inch Drop

Click image to enlarge

Watch the video below to learn more about Speedway Motors Spindles

Details

Reviews

Q & A

What's in the Box

If you are looking for that dropped axle gasser look or just need a dropped axle, we've got your deal! Our plain steel, universal application axles are professionally engineered & built. Accommodates different frame widths when using our weld-on spring pads (not included, welding required).

  • Uses '49-'54 Chevy car style spindles
  • 4" drop
  • Axle Tube:  0.250" wall
  • Axle Diameter:  2.00" O.D.
  • Axle Width:  48" kingpin center-to-center

Customer Reviews

Rated 4 out of 5 by 1 reviewers.
RATING BREAKDOWN
1 reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Field41
Verified Purchaser
Cody, WY 82414, USA
Product Rating

Nice welding

April 18, 2014
Other than wishing these were made a little wider, it's a good product. Heavy tubing. A wider axle (king pin to king pin) such as 50 & 52" would work better with a wheel that has a lot of back spacing for old trucks. Wheels spacers are an option but tend to be a little tough on wheel bearings.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1
91035115

Product Q&A

4 questions : 4 answers

1 answers

Can perch bolt holes be added to this axle? I have your 3" dropped axle 48" wide with Chevy spindles under my model A pickup now and need 1 inch more drop, I already have a straight crossmember installed.

Cobra2
Dallas Tx.
December 14, 2013

Can perch bolt holes be added to this axle? I have your 3" dropped axle 48" wide with Chevy spindles under my model A pickup now and need 1 inch more drop, I already have a straight crossmember installed.

Answers

December 16, 2013
EricM
No perch bosses cannot be added to this particular axle and would be up to the builder to fabricate as needed. We do have a 3” dropped axle with perch boss installed under part number 91035121 or we have an axle with the brackets installed to accept a spring pivot under number 91335113 or 91335213 if so desired.
1 answers

hi there, i was wondering if you done custom width axles, specifically i would like 50" kingpin to kingpin width in 4" drop? for 54 chevy spindles

Spendjamin
November 29, 2013

hi there, i was wondering if you done custom width axles, specifically i would like 50" kingpin to kingpin width in 4" drop? for 54 chevy spindles

Answers

December 02, 2013
EricM
Sorry I am not able to build custom drop axles. The only way I can do a custom width is a straight axle.
1 answers

what is the maximum distance apart spring perches can be welded? 3inch straight axle,sb chevy,turbo 350. perches are about 27.5 inch on centers. want to lower ride hieght, lose weight, and gain disc breaks. Is there enough room between bends for this?

Dirty
Warner Robins, GA, USA
March 16, 2013

what is the maximum distance apart spring perches can be welded? 3inch straight axle,sb chevy,turbo 350. perches are about 27.5 inch on centers. want to lower ride hieght, lose weight, and gain disc breaks. Is there enough room between bends for this?

Answers

March 18, 2013
Jason
On a 48” dropped axle the bend on the tube axle starts at about 34” or 18” from center. Most brackets for hot rod use are placed at 32”. With a little modification of the spring pad you may be able to go slightly wider by altering for the raise at the radius. Either way the 27.5” should easily fit.
1 answers

WILL THIS AXELL ACCEPT 54 CHEVY TRUCK SPINDLES ? IF NOT, DO YOU SELL A DROP AXEL FOR 54 CHEVY TRUCKS ?

DRUMBO, ONTARIO, CANADA
July 03, 2011

WILL THIS AXELL ACCEPT 54 CHEVY TRUCK SPINDLES ? IF NOT, DO YOU SELL A DROP AXEL FOR 54 CHEVY TRUCKS ?

Answers

July 06, 2011
John
These plain tube axles do NOT come with the leaf spring pads or any related brackets or hardware. We do offer the spring pads and several options for shock and other accessory brackets. They only accept the 49-54 Chevy car spindles and will NOT accept the truck spindles even though the king pin diameter is the same. The camber angle built into the axle is 3 ¼ degrees different between the car and truck. We DO offer dropped axles for the 9147-54 Chevy truck under part number 580440 which will accept the truck spindles and the related bolt on parts appropriately.
Page 1 of 1
