Disc Brake Wheel Kit

Our lightweight T-bucket disc brake kit for wire wheels includes 360 degree caliper brackets, steel rotors, Wilwood aluminum single piston, floating calipers and hardware. Works with '37-'48 style Ford passenger car spindles. Note: Wire wheel and spindle are shown in photo for reference only and are NOT included in the brake kit. Caliper uses the .49” thick, 1.1 cubic inch Dynalite Single quick change pads Multiple 1/8"-27 NPT inlet and bleed screw locations Black anodized to resist corrosion

Want to lower your 1963-70 Chevy truck, get better brakes and improve your wheel selection, all at the same time? This bolt-on package is for you! It includes new 2-1/2" drop spindles that will bolt to stock ball joints and tie rods, making it simple to swap disc brakes. The kit also includes new brake rotors with popular 5-on 5-lug pattern (with 1/2" studs,) plus calipers, bearings, seals, spindle nuts, dust caps, banjo bolts and brake hoses. Kits may not work with factory drum brake wheels.

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for theuncommon Olds/Pontiacrear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers two-piece hat and rotor assemblies and high friction pads provide optimized and balanced braking for all types of customized applications.Piston Area (in²): 31/8" NPT inletMinimum Wheel Diameter (in): 15BP-10 Smart padsThese kits do not have emergency brake provisions.Dynalite Rear Axle Kit Installation Instructions (PDF)Exploded Installation SchematicKit fits some 15" ...

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the popularFord big bearingrear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers two-piece hat and rotor assemblies and high friction pads provide optimized and balanced braking for all types of customized applications.Piston Area (in²): 31/8" NPT inletMinimum Wheel Diameter (in): 15BP-10 Smart padsThese kits do not have emergency brake provisions.Pro Series Rear Axle Kit Installation Instructions (PDF)Axle Flange Identification ChartExploded ...

Bearing & seal kit for 1971-76 Impala caliper/11.75" rotor/5 x 5.5" bolt pattern onto 1937-1948 Ford car or 1937-1947 Ford 1/2 ton pickup spindle brake kit part 910-31909 . Kit includes: cone outer wheel bearings tapered outer bearing cups cone inner bearings tapered inner bearing cups seals

This kit allows you to upgrade your 1967-1970 Chevy pickup to disc brakes and gain the advantage of a more common 5-on-4.75" GM midsize passanger car bolt circle. A wheel change is required but you want custom 5-lug wheels on your truck anyway right? The new 11" rotors fit on your stock drum brake spindles. Kit includes 11" rotors GM Midsize calipers caliper brackets bearings seals spindle nuts dust caps banjo bolts brake hoses 11" single diaphragm brake booster master cylinder disc/drum proportioning valve and mounting hardware.

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the popularMopar/Danarear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers two-piece hat and rotor assemblies and high friction pads provide optimized and balanced braking for all types of customized applications.Ultralite HP 32 Curved VaneVented Rotor -12.19" x .810"Forged billet Dynalite four-piston calipersPiston Area (in²): 31/8" NPT inletMinimum Wheel Diameter (in): 15BP-10 Smart padsAluminum mounting brackets and hardwareThis kit will fit ...

This brake kit includes Mustang II/Pinto brake components to fit the Track-T 1949-54 Chevy spindles. Kit features 9-1/4" rotors, rebuilt single piston calipers, pads, stainless braided AN 4 brake lines, fittings, & hardware. NOTE: Please specify desired wheel bolt pattern (5 x 4.5" or 5 x 4.75") in the Comments box on the Order Summary/Payment Info page (page 2) when checking out.

This basic front disc brake conversion kit easily installs big '73-'93 Ford F-150 2WD 11-3/4" rotors on your '37-'48 Ford car and '37-'47 Ford half-ton pickup truck spindles while retaining the original 5 on 5-1/2" wheel bolt circle. The calipers used with this kit are '71-'76 Chevy Impala single-pistion units. Kit includes: Caliper brackets Hardware New bearing and seal adapters Note: This kit will work with spindles having either original steering arms or with flat steel steering arms. It will not work with forged aftermarket steering arms. Wheels must have 3-7/16" center ...

Easily installs 11" vented rotors and '69-'77 midsize GM single piston calipers to your classic Total Performance T-bucket spindles. Kit comes complete with new rotors and semi-metallic pads, new bearings and seals, new caliper bolts and rebuilt calipers, along with caliper mounting brackets, bushings, hardware and instructions. Has a 5 on 4-1/2" Ford/Mopar style wheel bolt pattern with 1/2" Fine studs.   Spindle Guide (Link)

This brake kit includes Mustang II/Pinto brake componentsto fit the Track-T 1949-54 Chevy spindles. Kit features 9-1/4" rotors rebuilt single piston calipers pads stainless braided AN 4 brake lines fittings & hardware.NOTE: Please specify desired wheel bolt pattern (5 x 4.5" or 5 x 4.75") in the Comments box on the Order Summary/Payment Info page (page 2) when checking out.

Front disc brakes provide a significant improvement in braking performance versus the drum brakes your car came with. This complete front disc brake conversion kit fits 1964-72 GM A-Body 1967-69 GM F-Body and 1968-74 X-Bodyusing your stock disc brake spindles or our new replacement stock height disc brake spindles #910-34900.Kit includes 11" diameter vented brake rotor with 5 on 4-3/4" wheel bolt pattern '69-'77 GM style calipers (7/16"-20 inlets) caliper brackets brake pads backing plates rubber brake lines and all necessary bearings seals and hardware for an easy complete installation ...

Disc brake kitfeatures 10-½” GM vented cast ironrotors and 1978-88 GM metricsingle piston calipers. 10-1/2" rotors (O.E. on 1979-81 GM Midsize: Malibu Monte Carlo Cutlass Regal etc.)5 x 4-3/4" bolt patternRubber Brake Lines1978-88 GM Metric Calipers7/16"-20 inlet fittingIncludes all hardware: pads slide bolts seals inner & outer wheel bearings spindle nuts dust capsSpindles sold separately. 910-31992 Instructions (PDF)

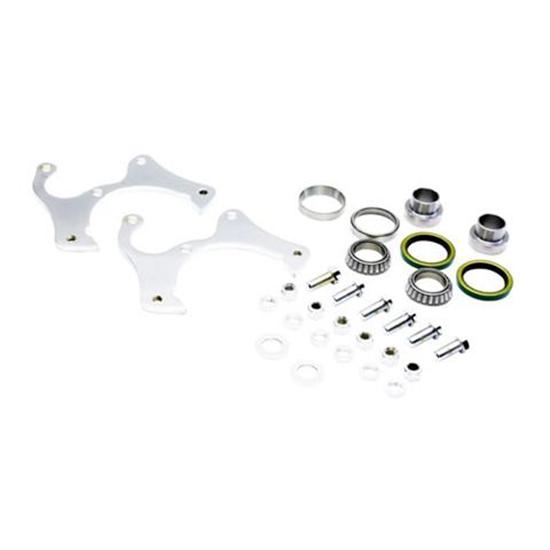

This basic front disc brake conversion kit allows you to bolt on modern disc brakes to your '37-'48 Ford passenger car style spindles. Kit comes with the caliper bracket, inner bearing and seal, and required hardware. Outer bearing 912-TLM11949 is not supplied with this kit. Kit works with '76-'80 Dodge Aspen 11" rotors (5 on 4-1/2" wheel bolt pattern) and '69-'77 GM mid-size calipers. 916-31921 Instructions (PDF)

This basic front disc brake conversion kit allows you to mount 1969-72 GM mid-size rotors (5 on 4-3/4" wheel bolt pattern) and 1969-77 GM mid-size calipers on your 1937-48 Ford passenger car style spindles. No machine work needed. Bracket is zinc plated.   Kit Includes: 1969-1972 GM to Ford brake brackets Hardware Bearing and seal adapters Seals Inner bearing cups Inner bearing cones Spacers Instructions Does not include dust caps, washers or spindle nuts 916-31903 Instructions (PDF)

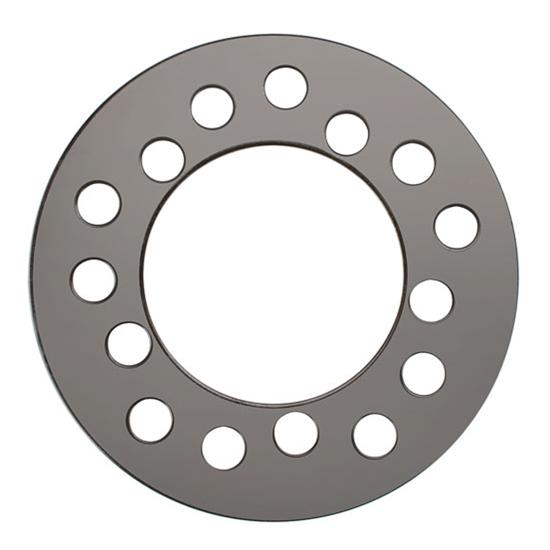

This shim is .094" thick, has a 3.245 center hole and is 6.25" O.D. It has 5 on 4 1/2", 5 on 4 3/4" and 5 on 4" bolt patterns to fit over a 1/2" stud. It is made of steel.

Easily installs 11" rotors and the 1978-up GM Metric calipers to your 1937-48 Ford passenger car and 1937-47 1/2 ton Ford spindles. No machine work needed. This kit works well with bolt-on steering arms. The 11" rotor brake kits are great for street rods based on 1932-48 Fords. Uses Ford/Mopar wheel bolt pattern of 5 on 4-1/2". 910-31945 Instructions (PDF)

Want to lower your 1963-70 Chevy truck get better brakes and improve your wheel selection all at the same time? This bolt-on package is for you! It includes new 2-1/2" drop spindles that will bolt to stock ball joints and tie rods making it simple to swap disc brakes. The kit also includes new brake rotors with popular 5-on 5-lug pattern (with 1/2" studs ) plus calipers bearings seals spindle nuts dust caps banjo bolts and brake hoses. Kits may not work with factory drum brake wheels.
