You don't sacrifice quality for a low price - get both with a set of Flo-Tek aluminum cylinder heads. These Chevy aluminum heads are loaded with high end features like bronze valve guides and a multi angle valve job. These are a pre-1986 design small block Chevy cylinder head. Sold each.180cc intake runners62cc exhaust runners64cc combustion chambersMachined for 3/8" screw-in studsMachined for 2.02"/1.60" valvesReady for assembly
You don't sacrifice quality for a low price - get both with a set of Flo-Tek aluminum cylinder heads. These Chevy aluminum heads are loaded with high end features like bronze valve guides Multi angle valve job and 3/8" screw-in rocker studs with guideplates. These are a pre-1986 design small block Chevy cylinder head.Heads are sold each.180cc intake runners62cc exhaust runners64cc combustion chambers2.02" and 1.60" stainless steel valvesHigh performance springs for .550" liftCompatible with most flat tappet camshaftsMulti angle valve jobBronze guides3/8" screw-in studs and guide plates
You don't sacrifice quality for a low price - get both with a set of Flo-Tek aluminum cylinder heads. These Chevy aluminum heads are loaded with high end features like bronze valve guides multi angle valve job and 3/8" screw-in rocker studs with guideplates. These are a pre-1986 design small block Chevy cylinder head with a standard exhaust port design.Heads are sold each.180cc intake runners62cc exhaust runners64cc combustion chambers2.02" and 1.60" stainless steel valvesHigh performance springs for .550" liftCompatible with most flat tappet camshaftsFive angle valve jobBronze ...
You don't sacrifice quality for a low price - get both with a set of Flo-Tek aluminum cylinder heads. These Chevy aluminum heads are loaded with high end features like bronze valve guides and a multi angle valve job. These are a pre-1986 design small block Chevy cylinder head. Sold each. 180cc intake runners 62cc exhaust runners 64cc combustion chambers Machined for 3/8" screw-in studs Machined for 2.02"/1.60" valves Ready for assembly
You don't sacrifice quality for a low price - get both with a set of Flo-Tek aluminum cylinder heads. These Chevy aluminum heads are loaded with high end features like bronze valve guides, multi angle valve job, and 3/8" screw-in rocker studs with guideplates. These are a pre-1986 design small block Chevy cylinder head with a standard exhaust port design. Heads are sold each. 180cc intake runners 62cc exhaust runners 64cc combustion chambers 2.02" and 1.60" stainless steel valves High performance springs for .550" lift Compatible with most flat tappet ...
These heads are for your '61-'65 348-409 W-Series Chevy engine. They weigh about half what a cast iron head does and are bolt-on. The 220cc intake and 90cc exhaust runners with 2.19" intake and 1.72" exhaust valves will give you a big increase in performance. They are a great match for the large port intakes and are shipped assembled.They can be used on 348 engines if limited to a .550" lift. 325-60819 Instructions (PDF)
These heads are for your '61-'65 348-409 W-Series Chevy engine. They weigh about half what a cast iron head does and are bolt-on. The 220cc intake and 90cc exhaust runners with 2.19" intake and 1.72" exhaust valves will give you a big increase in performance. They are a great match for the large port intakes and are shipped assembled. They can be used on 348 engines if limited to a .550" lift. 325-60819 Instructions (PDF)

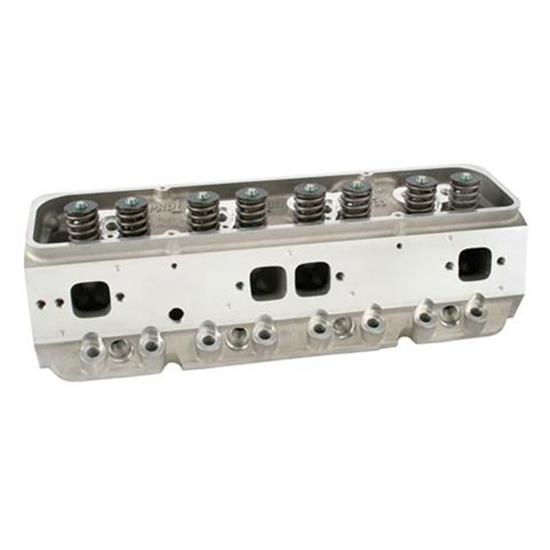

Dart's highly popular small-block Pro1 heads are loaded with features, which is why they are among the best 23° aluminum heads on the market. Highly efficient chambers feature excellent fuel distribution while the five-angle intake seats shear the liquid fuel and air as it enters the chamber. Spark plugs are located high and and as close to the center of the chamber as possible for a complete burn. The 180cc and 75cc ports feed 2.02" intake and 1.60" exhaust valves using 1.25" diameter springs that can handle up to .520" lift. For gaskets use ...
You don't sacrifice quality for a low price - get both with a set of Flo-Tek aluminum cylinder heads. These Chevy aluminum heads are loaded with high end features like bronze valve guides and a multi angle valve job . These are a pre-1986 design small block Chevy cylinder head. Sold each. 180cc intake runners 62cc exhaust runners 64cc combustion chambers Machined for 3/8" screw-in studs Machined for 2.02"/1.60" valves Ready for assembly
You don't sacrifice quality for a low price - get both with a set of Flo-Tek aluminum cylinder heads. These Chevy aluminum heads are loaded with high end features like bronze valve guides, Multi angle valve job, and 3/8" screw-in rocker studs with guideplates. These are a pre-1986 design small block Chevy cylinder head. Heads are sold each. 180cc intake runners 62cc exhaust runners 64cc combustion chambers 2.02" and 1.60" stainless steel valves High performance springs for .550" lift Compatible with most flat tappet camshafts Multi angle valve job Bronze ...
The Dart SHP Cylinder Head is cast from A356-T6 aluminum and designed to work with most off the shelf components, so you won’t need to worry about acquiring costly custom components. Bolt on compatibility: Standard valve angle and spacing are retained to allow use of off the shelf pistons and valve train components Multi-angle intake seats and radiused exhaust seats dramatically increase air/fuel flow Hardened exhaust seats are compatible with unleaded gasoline Manganese bronze valve guides extend cylinder head life Machined for 1.250 or 1.437 diameter valve springs Straight spark ...
The SHP is cast from A356-T6 aluminum and designed to work with most off the shelf components, so you won’t need to worry about acquiring costly custom components. Bolt on compatibility: Standard valve angle and spacing are retained to allow use of off the shelf pistons and valve train components Multi-angle intake seats and radiused exhaust seats dramatically increase air/fuel flow Hardened exhaust seats are compatible with unleaded gasoline Manganese bronze valve guides extend cylinder head life All cylinder heads sold individually Configuration: Bare Combustion Chamber Volume: 64cc ...
These Fel-Pro gaskets work with both cast iron and aluminum heads. Pre-flattened steel wire ring gaskets have the strength of steel wire sealing with minimum brinelling of aluminum heads. Pre-flattened copper wire ring gaskets will not brinell aluminum heads. They offer superior heat dissipation. Multi-layer steel gaskets offer current leading-edge technology and provide a long-term, leakproof seal called Perma Torque MLS. Gaskets are sold each Embossed shim with precision rubber coating 4.100" gasket bore Nominal compression thickness: .015" Compressed volume: 3.2 cc Not for use with ...
