Plain Finish Cross Steering Tie Rod End, 11/16-18 LH Threads

SAME DAY SHIPPING! Order within the next 14 hours 18 minutes and receive same day shipping

Specs
Material Type:
Steel
Overall Length:
7.250
Sold in Quantity:
Each
Finish:
Black Oxide
Thread Length:
2.000
Thread Pitch:
11/16"-18
Center Hole to End of Shank:
3.750
Threads:
LH Male
Garage Sale:
No

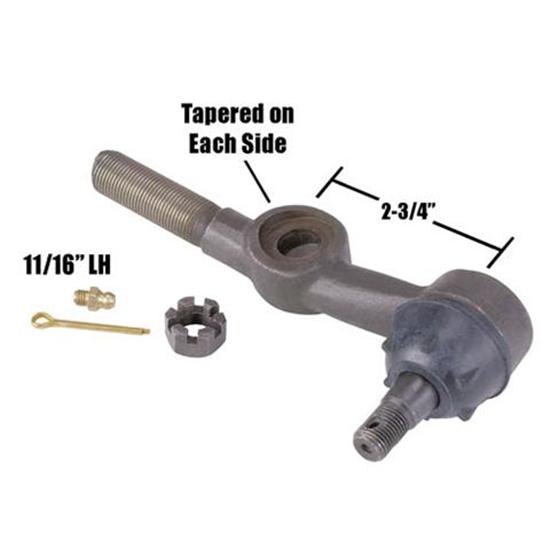

Plain Finish Cross Steering Tie Rod End, 11/16-18 LH Threads

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

Cross steering means the drag link reaches across the car and attaches to the passenger-side steering arm. If that steering arm has only one hole, you'll need to build the tie rod with this tie rod end on the RH side. Then the drag link attaches to the eyelet (which is tapered 1/2 way from both sides.)
  • Not for use with flat steering arms
  • Use only with Ford type steering arms with a tapered hole
  • Not normally used with Chevy spindles

Note: When using the cross steering end, the tube length will need to be 6" shorter than the eye-to-eye length. Example: A 46" kit will need 40" tube length.

Customer Reviews

Rated 4.8 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

JJB
Verified Purchaser
Oakdale ne

I would buy this again

July 21, 2015
Fit perfect
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Mike74DJ
Verified Purchaser
Arkansas, USA

Used this on right hand drive postal Jee

March 27, 2015
The correct left side tie rod is out of production for the postal jeeps so I used this.The angle is different since it's basically swapped to the other side for use on the RHD but there's no binding.
Pros:
  • saves the day
Cons:
  • angle is off but still works
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Flatheadv8s
Verified Purchaser
Australia

Great product

August 28, 2011
Excellent for use when the steering eye has been cut off your stub axle
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Rufus
Bend, OR

Clean and simple, worked great!

December 07, 2010
Cleaned up a cross steering conversion on a 57 F100.Worked as specified.Only one I could find.[...]
Pros:
  • Easy problem solver
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 3 answers

1 answers

Center tie rod hole It says tapered half way on both sides,does that mean the tie rod hole has a 7degree taper on each end half way so that a tie rod will work on either side? Thanks

MikeAG
Arkansas
February 14, 2015

Center tie rod hole It says tapered half way on both sides,does that mean the tie rod hole has a 7degree taper on each end half way so that a tie rod will work on either side? Thanks

Answers

February 16, 2015
Tech
Yes this is tapered on both sides, with the middle of the hole being the smallest point.
1 answers

what angle is the taper I am machining steering arms and need to know what the taper is on this part..

chimpkoose
canada
May 20, 2014

what angle is the taper I am machining steering arms and need to know what the taper is on this part..

Answers

May 21, 2014
Travisp
This has a 7 degree taper.
1 answers

Why does it say not normally used with Chevy spindle. Could I use it on a 59 GMC truck?

duesenberg1
May 02, 2014

Why does it say not normally used with Chevy spindle. Could I use it on a 59 GMC truck?

Answers

May 05, 2014
EricM
You might be able to retrofit this onto your application but we have no experience doing so. With '49 to '54 Chevy car spindles on hot rod tube axles there are not any steering arms available that accept tapered tie rod ends. We always use 5/8" heim joints on those applications.
Page 1 of 1
