Complete Wilwood Brake Kits

Easily install 11" rotors and 1978-88 GM Metric calipers to your 1937-48 Ford passenger car style spindles withno machine work needed. Thisdiscbrake kit is great for street rods based on 1932-1948 Fords. For lightweight cars like T-buckets or early roadsters we recommend the Wilwood kits. This front disc brake conversionkit works well with bolt-on steering arms. The 11" diameter rotors have the GM wheel bolt pattern of5 x4-3/4". Calipers have 7/16"-20 inlets.910-31946 Instructions(PDF)

Need a big brake package that can scrub off serious speed and look great doing it? Wilwood's Forged Dynalite Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional disc brake spindle applications on classic Chevy muscle cars.  All kits can be used with manual or power boost master cylinders. Forged 4-piston Dynalite Calipers - black finish 13" diameter Ultralite HP 32 Vane rotors - plain finish Wilwood BP-10 SmartPads - low noise, low dust Lightweight anodized aluminum Pro Street hubs Minimum wheel diameter of 17" Instructions (PDF)  Application Chart

Wilwood Forged DynalitePro-Series Front Hub Kits offer a complete disc brake upgrade solution for your 1937-48 Ford spindles. Based on the venerable forged billet Dynalite caliper these versatile kits suit the braking requirements for a light weight Model T or T bucket type chassis. Medium Duty kits are recommended for use on T bucket type cars up to 2200 pounds with rear discs or on cars up to 2000 pounds with rear drums. Most kits require no modifications for installation and provide plenty of clearance inside popular 15” wheels. FDL ...

Wilwood Forged DynalitePro-Series Front Hub Kits offer a complete disc brake upgrade solution for your 1937-48 Ford spindles. Based on the venerable forged billet Dynalite caliper these versatile kits suit the braking requirements and style preferences for a daily driver serious competition or the most discriminating show enthusiast. Most kits require no modifications for installation and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.Wilwood Heavy Duty Kits Feature:Forged 4-pistonDynalite ...

Wilwood Forged DynalitePro-Series Front Hub Kits offer a complete disc brake upgrade solution for your 1937-48 Ford spindles. Based on the venerable forged billet Dynalite caliper these versatile kits suit the braking requirements and style preferences for a daily driver serious competition or the most discriminating show enthusiast. Most kits require no modifications for installation and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.Wilwood Heavy Duty Kits Feature:Forged 4-pistonDynalite ...

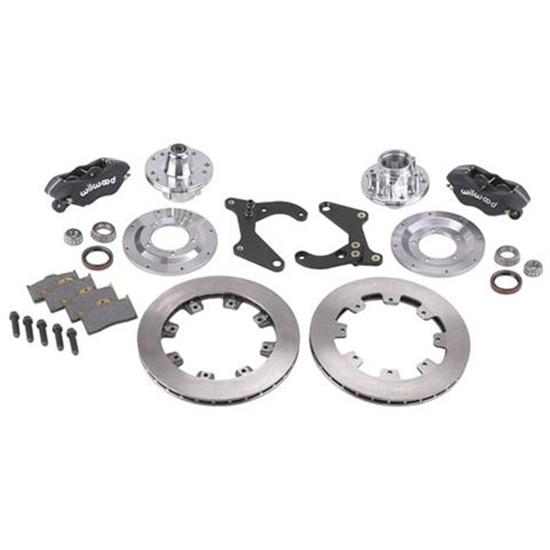

Wilwood's Forged Dynalite Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for original drum brake spindle applications on classic Tri-Five Chevys. Based on the venerable forged billet Dynalite caliper, these versatile kits are well suited to the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Kits require no modifications for installation, and provide plenty of clearance inside popular 15” wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Includes ...

Check out this complete brake package for '49-'54 Chevy car spindles. These kits feature aluminum hubs, solid steel rotors, 4-piston aluminum calipers, bearings, seals, steel brackets, and all necessary hardware. Hubs are drilled for both 5 x 4.5" and 5 x 4.75" bolt patterns. Forged Dynalite four-piston calipers - black finish Polymatrix D brake pads .35" wide x 10-3/4" diameter solid steel rotors - black finish Caliper has a 1/8" NPT inlet 835-140151 Instructions (PDF)

Check out this complete brake package for '49-'54 Chevy car spindles. These kits feature aluminum hubs, solid steel rotors, 2-piston aluminum calipers, bearings, seals, steel brackets, and all necessary hardware. Hubs are drilled for both 5 x 4.5" and 5 x 4.75" bolt patterns. Billet Dynapro two-piston calipers - black finish Poly E brake pads .35" wide x 10-3/4" diameter solid rotors - black finish Caliper has a 1/8" NPT inlet 835-140150 Instructions (PDF)

Check out this complete brake package for '49-'54 Chevy car spindles. These kits feature aluminum hubs, vented iron rotors, 4-piston aluminum calipers, bearings, seals, steel brackets, and all necessary hardware. Hubs are drilled for both 5 x 4.5" and 5 x 4.75" bolt patterns. Forged Dynalite four-piston calipers - black finish Polymatrix D brake pads .810" wide x 10-3/4" diameter Ultralite HP 30 Vane rotors - plain finish Caliper has a 1/8" NPT inlet 835-140152 Instructions (PDF)

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the popularFordsmall bearingrear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers two-piece hat and rotor assemblies and high friction pads provide optimized and balanced braking for all types of customized applications.These kits do not have emergency brake provisions.835-1402113 Instructions (PDF)Axle Flange Identification Chart Click Here for Exploded Installation Schematic

Need a big brake package that can scrub off serious speed and look great doing it?Wilwood's Forged Dynalite Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditionaldisc brakespindle applications onclassic Chevymuscle cars. All kits can be used with manual or power boost master cylinders. 12.19" Big Brake Series features: Forged 4-pistonDynalite Calipers - black finish 12.19" diameter Ultralite HP 32 Vane rotors - plain finish Wilwood BP-10SmartPads - low noise, low dust Lightweight anodized aluminum Pro Street hubs Minimum wheel diameter of 16" All kits ...

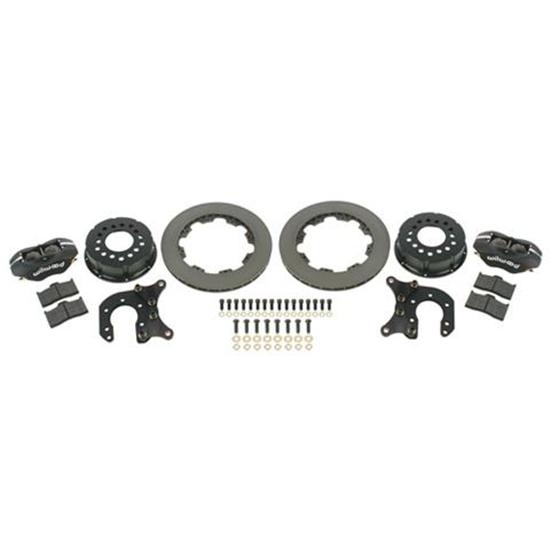

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the popularMopar/Danarear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications. Ultralite HP 32 Curved Vane Vented Rotor - 12.19" x .810" Forged billet Dynalite four-piston calipers Piston Area (in²): 3 1/8" NPT inlet Minimum Wheel Diameter (in): 15 BP-10 Smart pads Aluminum mounting brackets and hardware This kit ...

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the popular Ford big bearing rear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications. These kits do not have emergency brake provisions. 835-1402118 Instructions (PDF) Axle Flange Identification Chart

Wilwood Forged Dynalite Front Pro Series Brake Kits offer a complete disc brake upgrade solution for Mustang II-equipped street rods and classic pickups. Based on the venerable forged billet 4-piston Dynalite caliper, these versatile kits suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.  Calipers mount directly to the spindle with a bolt-on aluminum bracket. Forged billet, five lug hubs with direct mount cast iron rotors combine to provide a significant weight savings compared to stock disc brakes. ...

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the uncommon Olds/Pontiac rear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications. Piston Area (in²): 3 1/8" NPT inlet Minimum Wheel Diameter (in): 15 BP-10 Smart pads These kits do not have emergency brake provisions. Dynalite Rear Axle Kit Installation Instructions (PDF) Exploded Installation Schematic   Kit ...

Wilwood FDL Pro-Series rear disc brake kits provide a complete solution for the popularFord big bearingrear axles on applications where parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of customized applications. Piston Area (in²): 3 1/8" NPT inlet Minimum Wheel Diameter (in): 15 BP-10 Smart pads These kits do not have emergency brake provisions. Pro Series Rear Axle Kit Installation Instructions (PDF) Axle Flange Identification Chart ...

Replace those old drum brakes with modern rear disc brakes.Mounts .81" x 11-3/4" Pro-lite vented iron rotors and calipers to 3" tube rear end. Complete with rotors hats calipers (7/16"-20 inlets) brackets brake pads caliper brackets and slider bolts. Wilwood aluminum hats fits 5 lug hubs with4-1/2" 4-3/4" or 5" bolt circle.910-31935 Instructions (PDF)

Wilwood'sFDL Pro-Series rear disc kits provide a complete solution for popular GM 12-boltrear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. E-brake cables sold separately. Fits GM 12-bolts with 2.81" offset and OE C-Clip axles. Does not support Special End or C-Clip Eliminator ...
